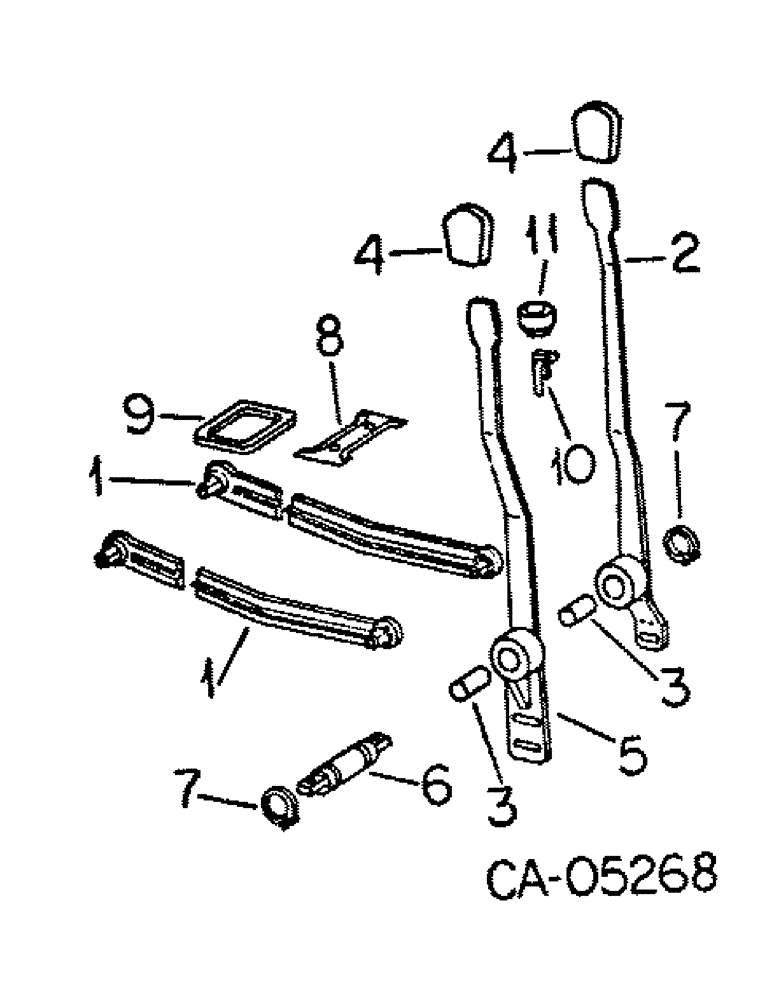

Запчасти Case IH 1586 (10-33) - HYDRAULIC, HYDRAULIC DRAFT CONTROL LINKAGE, 1586 TRACTOR WITH SERIAL NO. 20999 AND BELOW (07) - HYDRAULICS

1

120314C2

ROD

ASSY, draft & position control

2шт.

180080

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5, Full Thd

SCREW, 5/16-18 x 1-1/8 hex-hd cap

4шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 5/16 phc p/t lock type 5

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

2шт.

532409R1

SPRING WASHER

serrated spring steel

2шт.

2

104525C92

HANDLE

ASSY, position control

1шт.

3

383236R1

BUSHING,19.15mm ID x 20.65mm OD x 25.4mm L

CONTROL HUBS

2шт.

4

1259760C1

BALL KNOB

KNOB, control handle

1шт.

5

104529C91

HANDLE

ASSY, draft control

1шт.

6

104532C2

SHAFT

control pivot

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

661652R1

SNAP RING,#75, Ext

Control handle #75, Ext

2шт.

16066R1

WASHER

SPACER, control handle inner and outer (Or as required)

6шт.

8

SUPPORT, control platform seal, Order 135877C1

1шт.

9

135877C1

SEAL

control platform, Replaces 104535C1 and 104534C1

1шт.

10

120408C1

STOP

ASSY, position control handle

1шт.

11

KNOB, position control handle stop, Not serviced separately, Part of stop assy, 120408C1

1шт.
