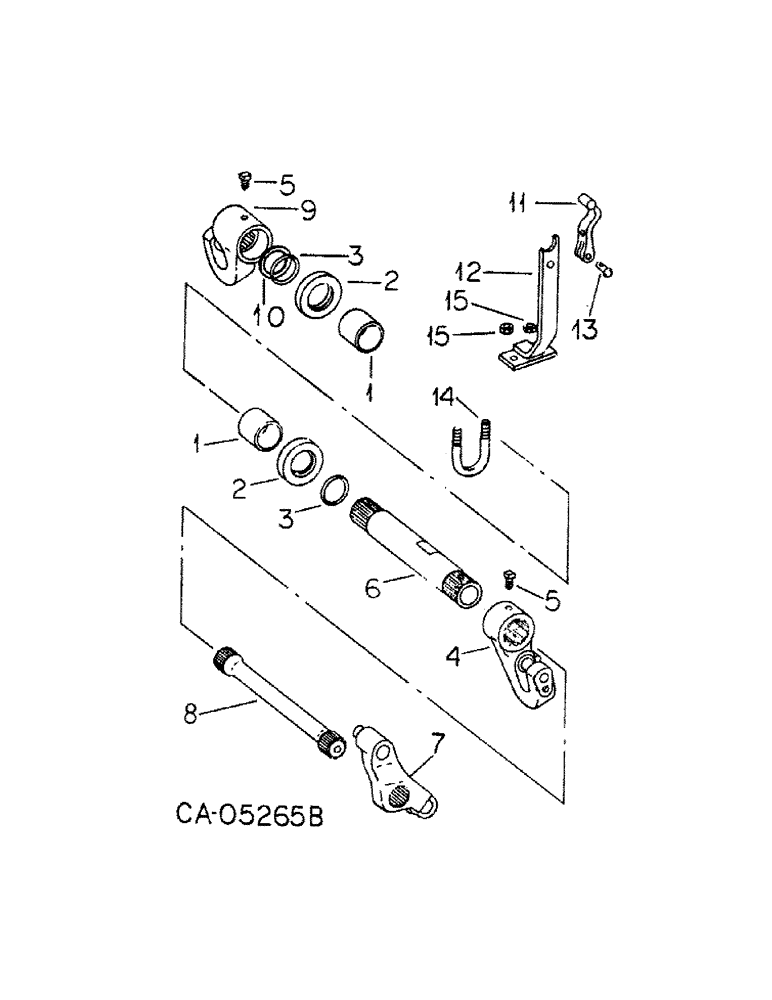

Запчасти Case IH 1586 (10-32[A]) - HYDRAULIC, DRAFT SENSING (07) - HYDRAULICS

1

394889R91

BUSHING

ASSY, liner and case

2шт.

2

392083R1

RETAINER

crank arm o-ring

2шт.

3

142815C1

SEALING RING,2.85" ID x 0.21" Width

O-RING, 2-7/8 x 3-1/4 x 3/16, crank arm o-ring retainer

2шт.

4

71389C2

ARM

RH crank

1шт.

5

71390C1

BOLT,5/8" - 18 x 1 21/32", Grade 8

locating

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

6

71386C1

SHAFT

crank arm, 1586, Serial Range: -17123

1шт.

6

77679C1

SHAFT

crank arm, 1586, Start Serial: 17124

1шт.

7

392086R31

BRACKET

ASSY, torsion bar anchor

1шт.

273303

BOLT,Hex, 5/8" - 11 x 5 1/4", Gr 5

SCREW, 5/8-11 x 5-1/4 hex-hd cap

2шт.

106267

WASHER,5/8"

11/16 x 1-3/4 x .134

2шт.

8

71385C1

BAR

torsion spring

1шт.

9

71388C1

ARM

LH crank

1шт.

10

142599C1

SHIM

0.054 thick (Or as required)

1шт.

11

390118R1

ARM

sensing upper

1шт.

109084

NUT,1/4"-20, G5

1шт.

138632

SET SCREW,Hex Soc, 1/4"-20 x 1 1/2"

SCREW, 1/4 x 1-1/2 pln o/pt hdl/hs set

1шт.

12

392093R91

ARM

ASSY, sensing lower

1шт.

13

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

14

392095R1

BOLT,3/8" - 16 x 3.28" W x 3.60" L

U-BOLT, sensing arm

1шт.

15

231-1446

NUT,3/8" - 16, Gr 5

NUT LOCK, 3/8"-16, GB

2шт.
