Запчасти Case IH 1586 (10-19) - HYDRAULIC, POWER STEERING CYLINDER (07) - HYDRAULICS

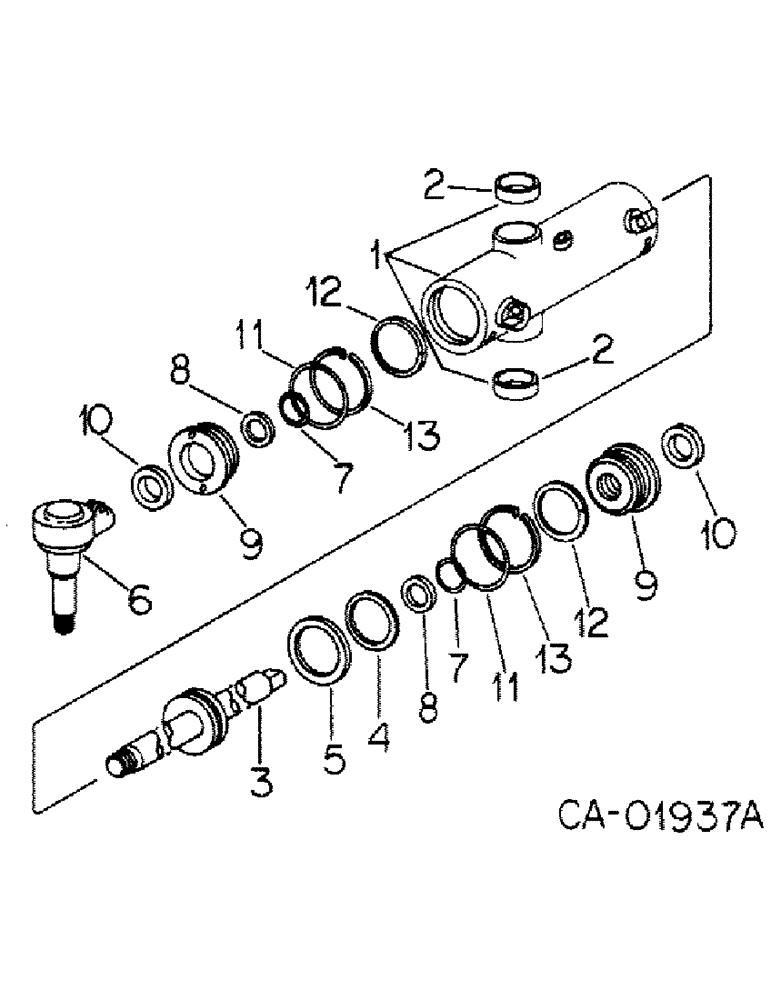

Схема запчастей Case IH 1586 - (10-19) - HYDRAULIC, POWER STEERING CYLINDER (07) - HYDRAULICS
2
2
12
10
7
1
13
9
8
4
12
6
8
7
11
13
10
11
9
3
5

Артикул

Название

Примечание

Количество

63864C92

CYLINDER

ASSY, hyd power steering

1шт.

1

BODY ASSY, hyd cylinder, Not serviced separately, Furnish cylinder assy, 63864C92

1шт.

2

533283R1

BUSHING,38.16mm ID x 41.41mm OD x 10.99mm L

trunnion

2шт.

3

533286R21

ROD

ASSY, piston

1шт.

4

22240R1

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

2 x 2-1/4 x 1/8, piston seal

1шт.

5

379570R1

SEALING RING

piston

1шт.

6

71820C91

END

ball joint rod, Not part of cyl assy

1шт.

7

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, piston rod, Use w/63864C91

2шт.

7

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

piston rod, Use w/63864C92

1шт.

8

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

rod o-ring backup, use w/63864C91

2шт.

9

533288R2

JACK HEAD

HEAD, cylinder front

2шт.

10

532856R91

SEALING RING

ASSY, scraper oil, Replaces 378587R91

2шт.

11

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-3/16 x 2-3/4 x 3/32, front head

2шт.

12

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

o-ring back-up

2шт.

13

391985R1

SPRING

RING, front head retaining

2шт.

80446C91

PACKAGE

KIT, hydraulic cylinder service, Replaces 533290R92, Consists of

1шт.

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2шт.

119185C1

SEAL,26.18mm ID x 32.17mm OD x 4.66mm Thk

2шт.

22240R1

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

1шт.

391985R1

SPRING

RING

2шт.

532856R91

SEALING RING

2шт.

379570R1

SEALING RING

1шт.

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

2шт.

Выбрано товаров: 23
