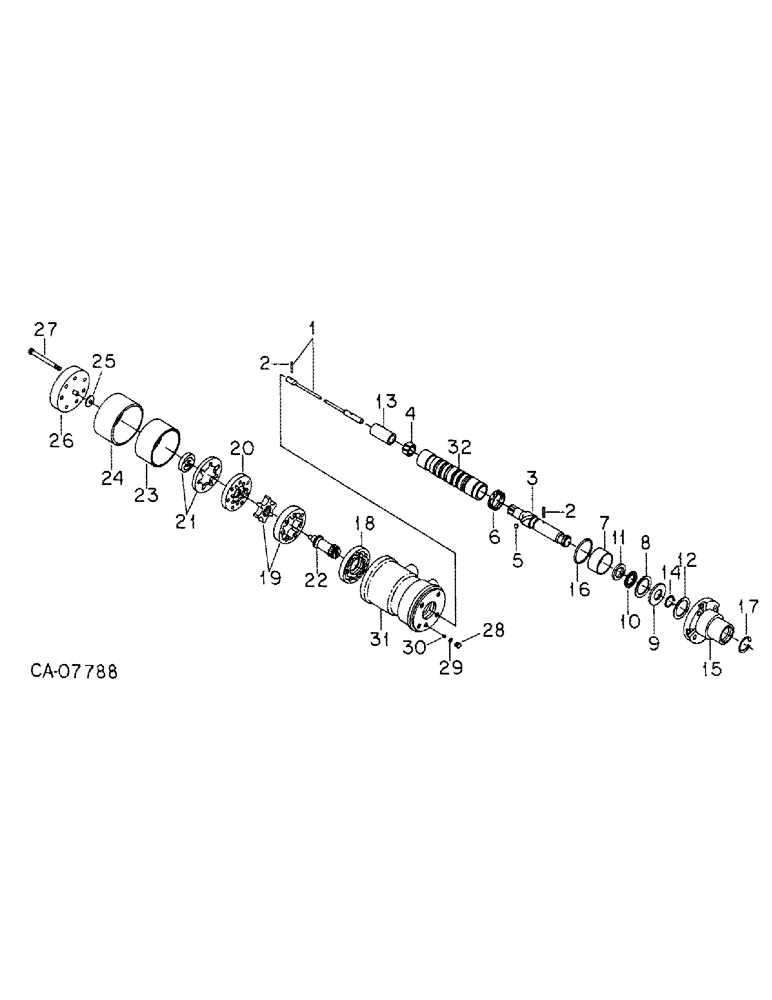

Запчасти Case IH 1586 (10-18) - HYDRAULIC, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
*
1263446C91
PUMP
ASSY, power steering hand, Replaces 224675c91
1шт.
*
1263446C91R
REMAN-STEERING VALVE
1586 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering hand (1/74-12/79)
1шт.
*
1263446C91C
CORE-STEERING VALVE
Return Number
1шт.
1
224713C1
BAR
ASSY, torsion
1шт.
2
535056R1
PIN
torsion bar needle
1шт.
3
924665C2
SHAFT
input
1шт.
4
535058R1
RING
drive
1шт.
5
17010R1
BALL,5/16" Dia
1шт.
6
79012C1
PACKAGE
KIT, ball retainer
1шт.
7
79013C1
SPACER
1шт.
8
928469C1
WAVE WASHER
wave
1шт.
9
535087R1
THRUST WASHER
thrust
1шт.
10
379783R91
THRUST BEARING
BEARING, thrust
1шт.
11
379785R1
THRUST WASHER
WASHER, thrust
1шт.
12
67567C1
PACKAGE
KIT, shim
1шт.
13
537277R1
SPACER
drive link
1шт.
14
928752C1
RING
retaining
1шт.
15
70115C1
COVER
upper
1шт.
*
27586R1
12 PT SCREW,Flg, 5/16"-18 x 3/4"
SCREW, 5/16 x .750 phc ast 12pt flg
4шт.
16
535091R1
RING
seal
1шт.
17
383878R1
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125
1шт.
18
535093R1
SPACER
1шт.
19
537282R1
ROTOR
SET
1шт.
20
535096R1
MANIFOLD
1шт.
21
535097R1
ROTOR
COMMUTATOR ASSY
1шт.
22
538069R1
DRIVE
GEAR, drive link
1шт.
23
537279R1
SEAL
SEAL, rotor
1шт.
24
71360C1
RETAINER
seal
1шт.
25
535100R1
THRUST WASHER
1шт.
26
535101R1
COVER
PLATE ASSY, end, cover
1шт.
27
535102R1
BOLT,Spcl, Hex, 5/16" - 18 x 2.50", Gr 5
end cover
7шт.
28
71085C1
PLUG
W/O-RING, body
1шт.
29
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, 3/16 OD tube class 6
1шт.
30
17008R1
BALL,1/4" Dia
Grade 25 metal 1/4" Dia
1шт.
31
BODY ASSY, Not serviced separately, Order pump assy, 1263446C91
1шт.
32
SPOOL, body, Not serviced separately, Order pump assy, 1263446C91
1шт.
*
405788R91
PACKAGE
vane and spring
1шт.
*
224712C1
SEAL KIT
PACKAGE, power steering hand pump service, Consists of
1шт.
*
SEAL (NSS)
1шт.
*
SPACER, seal (NSS)
1шт.
*
SEAL, dust (NSS)
1шт.
Выбрано товаров: 41
