Запчасти Case IH 1586 (10-16) - HYDRAULIC, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS

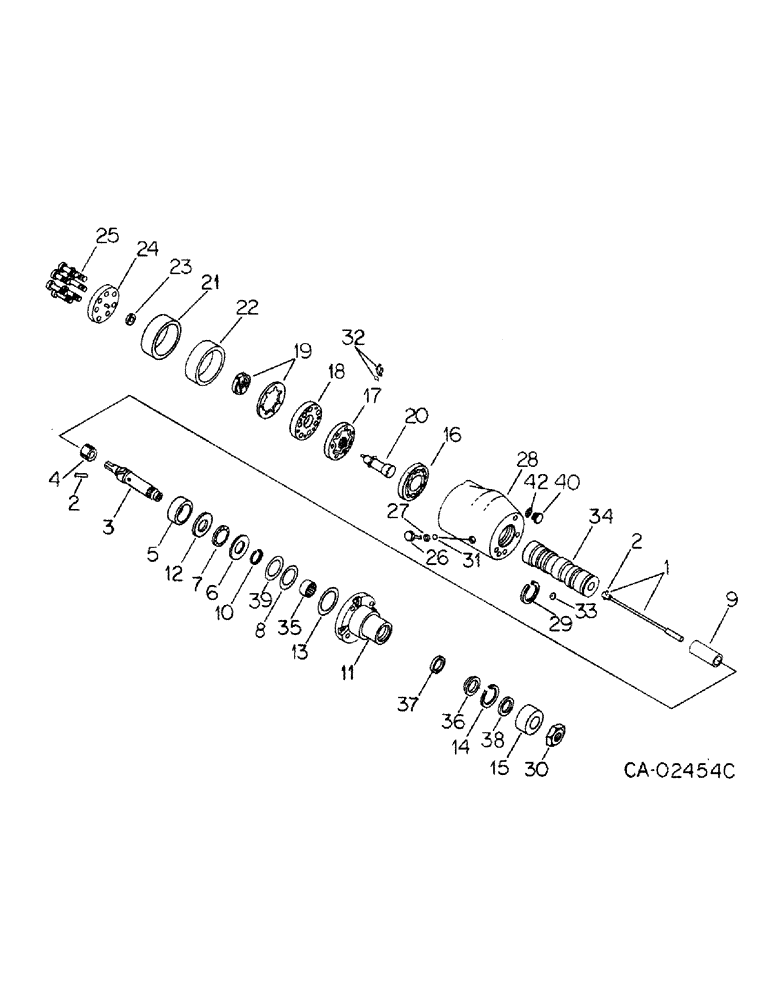

Схема запчастей Case IH 1586 - (10-16) - HYDRAULIC, HYDROSTATIC POWER STEERING HAND PUMP (07) - HYDRAULICS
40
21
2
24
17
28
42
8
36
5
26
19
20
38
23
15
22
3
2
33
12
16
37
35
11
31
30
18
25
34
32
10
13
39
4
14
27
6
29
9
1
7

Артикул

Название

Примечание

Количество

*

928751C95

LOCK VALVE

PUMP ASSY, power steering hand

1шт.

*

224675C91

PUMP

ASSY, power steering hand, Order pump assy, 1263446C91

1шт.

*

1263446C91R

REMAN-STEERING VALVE

1586 INTERNATIONAL DIESEL TRACTOR, ASSY, power steering hand (1/74-12/79), Reman for New PN 224675C91

1шт.

*

1263446C91C

CORE-STEERING VALVE

Return Number

1шт.

1

537271R1

ROD

TORSION BAR ASSY, Used w/pump 928751C95

1шт.

1

224713C1

BAR

TORSION BAR ASSY, Used w/pump 224675C91

1шт.

2

535056R1

PIN

torsion bar needle

1шт.

3

924665C2

SHAFT

input

1шт.

4

535058R1

RING

drive

1шт.

5

928468C1

SPACER

1шт.

6

535087R1

THRUST WASHER

thrust

1шт.

7

379783R91

THRUST BEARING

BEARING ASSY, thrust

1шт.

8

67567C1

PACKAGE

KIT, shim, Consists of

1шт.

*

SHIM, .002 (NSS)

1шт.

*

SHIM, .030 (NSS)

1шт.

*

SHIM, .005 (NSS)

1шт.

*

SHIM, .010 (NSS)

1шт.

9

537272R1

SPACER

drive link, Used w/pump 928751C95

1шт.

9

537277R1

SPACER

drive link, Used w/pump 224675C91

1шт.

10

928752C1

RING

retaining

1шт.

11

70115C1

COVER

ASSY, upper

1шт.

*

24481R1

SCREW

5/16-18 x 3/4 flanged 12-pt

4шт.

12

379785R1

THRUST WASHER

WASHER, thrust

1шт.

13

535091R1

RING

seal

1шт.

14

383878R1

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

1шт.

15

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

SHIELD, pump shaft, Not included in pump assy, Replaces 382587R1

1шт.

Smaller in size and shorter. It must be held in place against the casting with adhesive.

1шт.

16

535093R1

SPACER

1шт.

17

537273R1

ROTOR

SET, Used w/pump 928751C95

1шт.

17

537282R1

ROTOR

SET, Used w/pump 224675C91

1шт.

18

535096R1

MANIFOLD

1шт.

19

535097R1

ROTOR

COMMUTATOR ASSY

1шт.

20

538069R1

DRIVE

LINK, drive

1шт.

21

537274R1

SEAL

rotor, Used w/pump 928751C95

1шт.

21

537279R1

SEAL

SEAL, rotor, Used w/pump 224675C91

1шт.

22

71361C1

RETAINER

seal, Used w/pump 928751C95, subs to A45622, A45286, 71362C1, D71233, A45284, D71315, A45278, 71359C1, see below

1шт.

22

71360C1

RETAINER

seal, Used w/pump 224675C91, subs to A45622, A45286, 71362C1, D71233, A45284, D71315, A45278, 71359C1, see below

1шт.

*

A45622

RETAINER

2.7486/2.7476", 3.556" O.D. with .148" wall thickness

1шт.

*

A45286

RETAINER

2.4986/2.4976", 3.556" O.D. with .148" wall thickness

1шт.

*

71362C1

2.2486/2.2476", 3.556" O.D. with .148" wall thickness

1шт.

*

D71233

RETAINER

1.9986/1.9976", 3.556" O.D. with .148" wall thickness

1шт.

*

A45284

COLLAR

1.7486/1.7476", 3.556" O.D. with .148" wall thickness

1шт.

*

D71315

RETAINER

1.6236/1.6226, 3.556" O.D. with .148" wall thickness

1шт.

*

A45278

RETAINER

1.4986/1.4976", 3.556" O.D. with .148" wall thickness

1шт.

*

71359C1

RETAINER

1.4361/1.4351", 3.556" O.D. with .148" wall thickness

1шт.

23

535100R1

THRUST WASHER

1шт.

24

535101R1

COVER

ASSY, end

1шт.

25

537276R1

BOLT,Spcl, Hex, 5/16" - 18 x 2.688", Gr 5

end cover, Used w/pump 928751C95

7шт.

25

535120R1

SPACER

BOLT, end cover, Used w/pump 224675C91

7шт.

26

397901R91

PLUG AND ROLL PIN ASSY

1шт.

27

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

28

BODY ASSY, Not serviced separately, Order pump assy

1шт.

29

536360R1

SPRING

ball pre-load

1шт.

30

F19646

LOCK NUT,13/16"-20, Thin

NUT, 13/16-20 hex, Used w/pump 224675C91

1шт.

31

17009R1

BALL

1/4 diameter steel

1шт.

32

405785R91

PACKAGE, REPAIR

PACKAGE, vane and spring, Used w/pump 928751C95

1шт.

32

405788R91

PACKAGE

van and spring, Used w/pump 224675C91

1шт.

33

17010R1

BALL,5/16" Dia

1шт.

34

SPOOL, body, Not serviced separately, Order pump assy

1шт.

35

BEARING ASSY, needle, Not serviced separately, Order cover assy 70115C1

1шт.

36

SPACER, seal, Not serviced separately, Order service package 123465C1 or 224712C1

1шт.

37

RING, shaft seal, Not serviced separately, Order service package 123465C1 or 224712C1

1шт.

38

SEAL, felt dust, Not serviced separately, Order service package 123465C1 or 224712C1

1шт.

39

928469C1

WAVE WASHER

wave

1шт.

40

71085C1

PLUG

1шт.

41

NOT USED THIS APPLICATION

1шт.

42

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube class 6

2шт.

*

123465C1

X

PACKAGE, hydrostatic power steering hand pump service, Used w/pump 928751C95, Consists of

1шт.

*

SEAL (NSS)

1шт.

*

SPACER, seal (NSS)

1шт.

*

SEAL, dust (NSS)

1шт.

*

224712C1

SEAL KIT

PACKAGE, hydrostatic power steering hand pump service, Used w/pump 224675C91, Consists of

1шт.

*

SEAL (NSS)

1шт.

*

SPACER, seal (NSS)

1шт.

*

SEAL, dust (NSS)

1шт.

Выбрано товаров: 75
