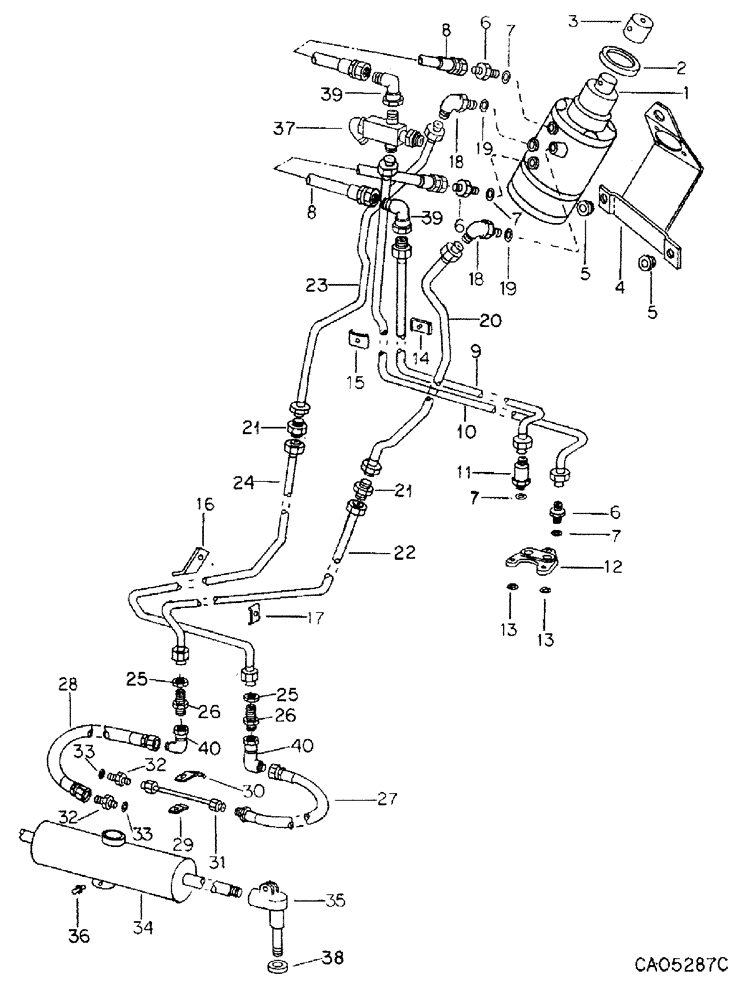

Запчасти Case IH 1586 (10-12) - HYDRAULIC, HYDRAULIC POWER STEERING CONNECTIONS, 1586 TRACTOR WITH SERIAL NO. 12955 AND BELOW (07) - HYDRAULICS

1

928751C95

LOCK VALVE

PUMP ASSY, power steering hand, Refer to power steering hand pump this group for list of components

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

1шт.

2

104007C1

SEAL

hand pump shaft dust

1шт.

3

104008C1

RUBBER INSULATOR

INSULATOR, pump shaft vibration

1шт.

4

104853C1

BRACKET

ASSY, hand pump mtg

1шт.

179814

SPACER

4шт.

5

104809C1

ISOLATOR,27.94mm OD x 18.29mm L

hand pump bracket

3шт.

536642R1

WASHER

bushing

3шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

3шт.

6

324273R1

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/4-16 37 deg hyd flared tube short reducer

3шт.

7

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

4шт.

8

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

power steering pressure & return, Replaces 104792C1 by also ordering (2) elbows, 9410281 and (1) clip, 144138C1

2шт.

9

120052C3

HYD TUBE,0.5" OD, 389.64, 352.24 mm Length

TUBE ASSY, power steering pressure

1шт.

10

120051C1

HYD TUBE

TUBE ASSY, steering return lower

1шт.

11

71830C1

CONNECTOR, ELEC

CONNECTOR, 3/4-16 37 deg hyd flared tube long reducer

1шт.

12

537840R1

BLOCK

power steering manifold

1шт.

NLS

NO LONGER SERVICED

3шт.

13

369908R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 5, 75 Duro

13/16 x 1 x 3/32

2шт.

14

384855R11

CLAMP

ASSY, steering tubes

1шт.

15

384855R1

CLAMP

steering tubes

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

SCREW, 1/4-20 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

16

537844R2

BRACKET

ASSY, power steering tube support front channel

1шт.

17

535307R1

CLAMP

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

9/16-18 37 deg hyd flared tube 90 deg

2шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

20

104457C1

HYD TUBE

TUBE ASSY, right turn strg upper

1шт.

21

9402786

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

37 deg hyd flared tube

2шт.

22

104458C1

TUBE ASSY, right turn strg lower

1шт.

23

104455C1

TUBE

ASSY, left turn strg upper

1шт.

24

104456C1

TUBE ASSY, left turn strg lower

1шт.

25

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT, 9/16-18 bulkhead union lock

2шт.

26

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION, 3/8 C-Z hyd fld tube bulkhead

2шт.

27

70312C1

HOSE,9.53mm ID x 577.85mm L, SAE 100R7

ASSY, power steering, LH

1шт.

28

74871C1

HOSE,9.53mm ID x 22.75mm L, SAE 100R7

ASSY, power steering, RH, Replaces 70313C2

1шт.

29

533578R2

CLAMP

tube

1шт.

30

533577R2

CLAMP

hose

1шт.

181331

BOLT,Hex, 5/16" - 24 x 1/2", Gr 5

SCREW, 5/16-24 x 1/2 hex-hd cap

1шт.

31

533579R2

TUBE

ASSY, cyl port to steering LH hose

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 9/16-18 37 deg hyd flared tube short swivel

2шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

2шт.

34

63864C92

CYLINDER

ASSY, hyd power steering, Refer to power steering cylinder this group for list of components

1шт.

35

71820C91

END

ball joint rod

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF, Used w/148885C91 1/8"-27 x .66 lg

1шт.

614451R1

WASHER

1.031 x 1.750 x .105

1шт.

272322

WASHER

7/8-14 slt thick hex

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 5/16-18 x 2 hex-hd cap

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

69981R1

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 hex w/nylon insert

1шт.

36

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lub

2шт.

37

108863C91

VALVE

ASSY, brake check, Refer to brake check valve this group for list of components

1шт.

38

71822C1

SEAL

dust

1шт.

39

9410281

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1/2 C-Z hyd fld 90D swivel

1шт.

40

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel

2шт.
