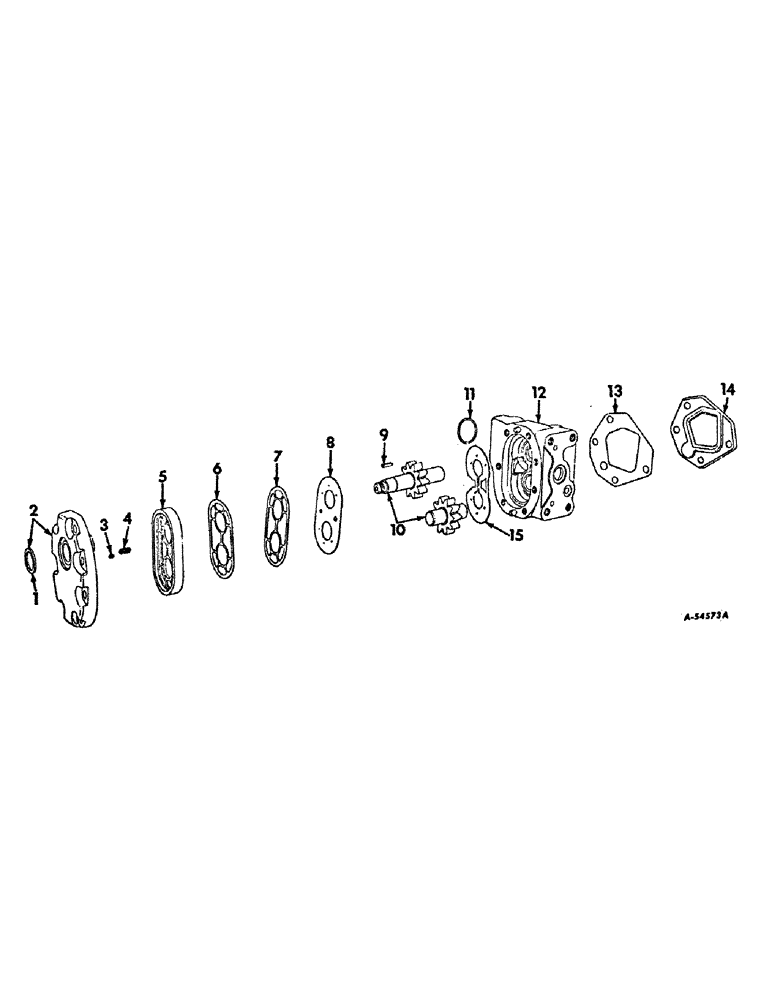

Запчасти Case IH 1586 (10-11) - HYDRAULIC, HYDRAULIC PUMP, 12 GPM AND 15 GPM, CESSNA, 1586 TRACTOR WITH SERIAL NO. 20999 AND BELOW (07) - HYDRAULICS

*

70931C91

PUMP

ASSY, hydraulic gear, 12 GPM

1шт.

*

1949296C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

*

1949297C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

*

70932C91

PUMP

ASSY, hydraulic gear, 15 GPM

1шт.

*

1949300C1

REMAN-HYD PUMP

1586 INTERNATIONAL DIESEL TRACTOR, ASSY, hydraulic gear, 12 GPM AND 15 GPM, CESSNA, W/ SERIAL NO. 20999 AND BELOW (1/74-12/79)

1шт.

*

1949301C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

SEAL, pump shaft oil, Not serviced separately, Order seal repair kit 71264C1

1шт.

2

COVER, pump, Not serviced separately, Order complete pump assy

1шт.

3

17007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, Not serviced separately, Order seal repair kit 71264C1

1шт.

6

GASKET, protector, Not serviced separately, Order seal repair kit 71264C1

1шт.

7

GASKET, back-up, Not serviced separately, Order seal repair kit 71264C1

1шт.

8

DIAPHRAGM, Not serviced separately, Order seal repair kit 71264C1

1шт.

9

71266C1

KEY

pump drive gear

1шт.

10

GEAR, drive and driven, Not serviced separately, Order complete pump assy

1шт.

11

O-RING, Not serviced separately, Order seal repair kit 71264C1

1шт.

12

BODY, pump, Not serviced separately, Order complete pump assy

1шт.

13

NOT USED THIS APPLICATION

1шт.

14

NOT USED THIS APPLICATION

1шт.

15

PLATE, thrust, Not serviced separately, Order seal repair kit 71264C1

1шт.

*

71264C1

SEAL KIT

seal repair, Consists of

1шт.

*

DIAPHRAGM (NSS)

1шт.

*

O-RING (NSS)

1шт.

*

THRUST PLATE (NSS)

1шт.

*

383663R1

VALVE SPRING

SPRING

1шт.

*

GASKET, back-up (NSS)

1шт.

*

GASKET, protective (NSS)

1шт.

*

SEAL, diaphragm (NSS)

1шт.

*

SEAL, shaft (NSS)

1шт.

*

17007R1

BALL

1шт.

*

INSTRUCTION (NSS)

1шт.
