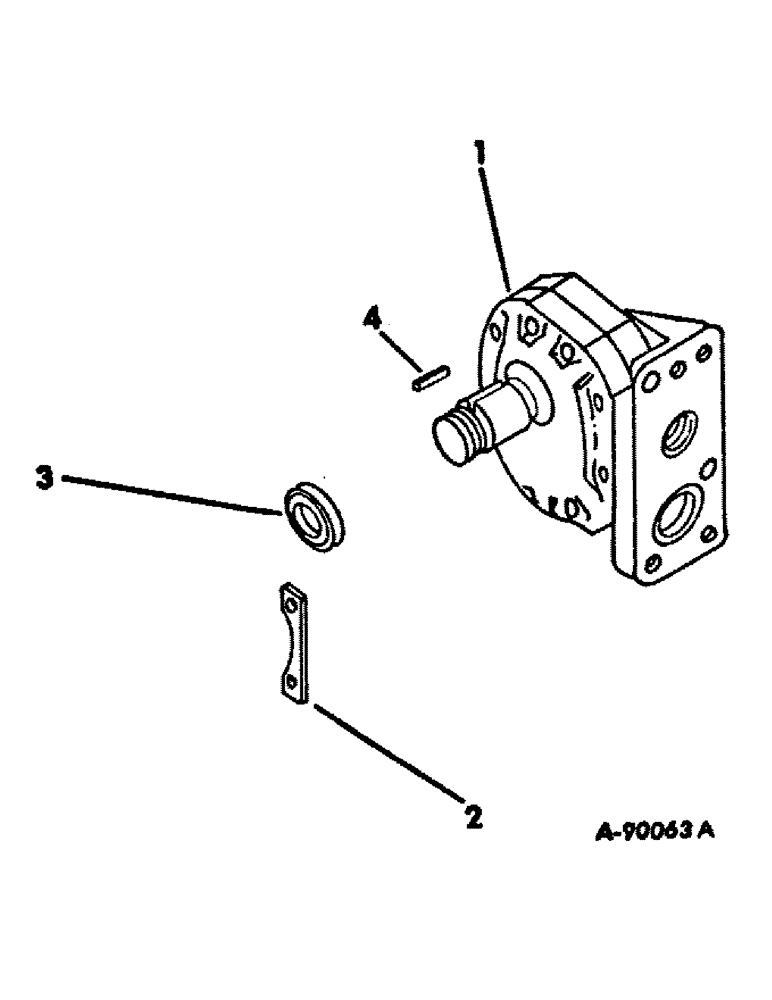

Запчасти Case IH 1586 (10-10) - HYDRAULIC, HYDRAULIC PUMP, 12 GPM, CESSNA (07) - HYDRAULICS

1

120114C92

PUMP, HYDRAULIC

PUMP ASSY, hydraulic, Includes ref. nos. 2, 3 and 4

1шт.

1

1949302C1

REMAN-HYD PUMP

1586 INTERNATIONAL DIESEL TRACTOR, PUMP ASSY (1/74-12/79)

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

120114C92GV

PUMP

PUMP ASSY, hydraulic, Includes ref. nos. 2, 3 and 4

1шт.

1

1949302C1

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP - for N.A. Only

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - for N.A. Only

1шт.

*

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

pump mounting bolt

4шт.

*

23761R1

SCREW,Hex, 5/16"-18 x 2 5/8", G5

5/16-18 x 2-5/8 hex-hd cap

4шт.

2

531530R1

LARGE PLATE

PLATE, washer

1шт.

*

528174R1

SCREW

5/16-18 special hex-hd cap

2шт.

3

383534R91

OIL SEAL

pump drive shaft

1шт.

4

383539R1

KEY

pump drive shaft

1шт.

*

63687C1

KIT

PACKAGE, hydraulic pump o-ring & gasket, Consists of

1шт.

*

DIAPHRAGM SEAL (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

GASKET (NSS)

1шт.

*

DIAPHRAGM (NSS)

1шт.

*

PLATE (NSS)

1шт.

*

SEAL (NSS)

1шт.

*

INSTRUCTION SHEET (NSS)

1шт.
