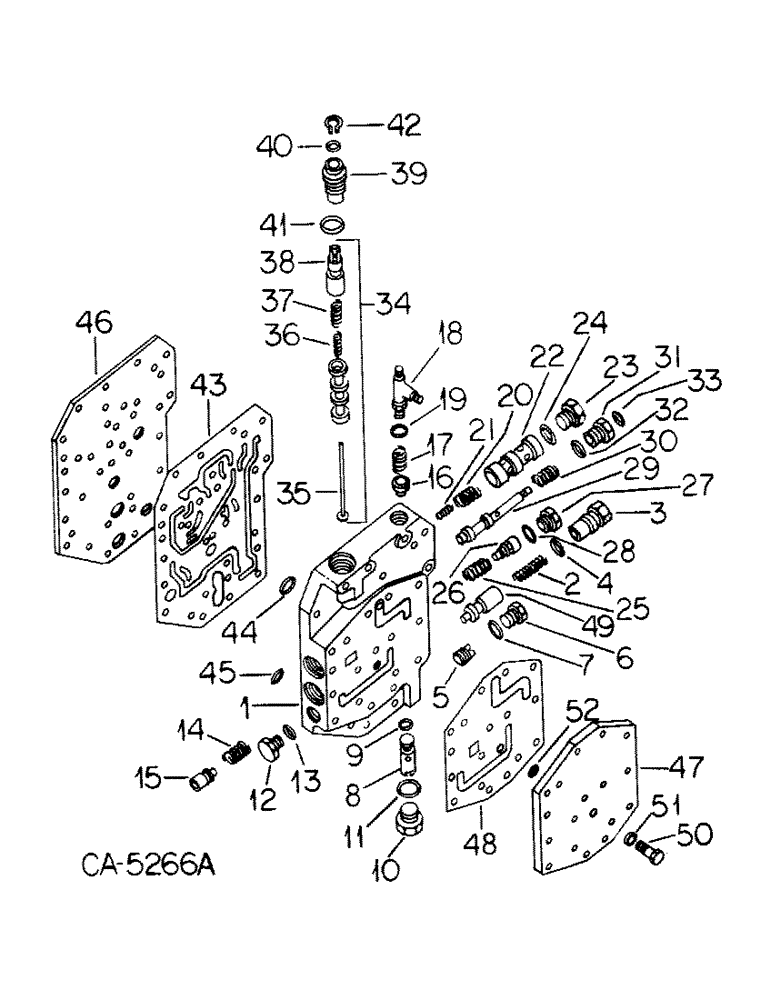

Запчасти Case IH 1586 (10-09) - HYDRAULIC, MULTIPLE CONTROL VALVE, TRACTORS WITH TORQUE AMPLIFIER (07) - HYDRAULICS

VALVE ASSY, multiple control, 3300 PSI, 113916C93

1шт.

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

SCREW, 5/16-18 x 1-3/8 hex-hd cap type 8

1шт.

445625

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 8

SCREW, 5/16-18 x 1-3/4 hex-hd cap type 8

1шт.

454865

BOLT,Hex, 5/16" - 18 x 2 1/4", Gr 8

SCREW, 5/16-18 x 2-1/4 hex-hd cap type 8

1шт.

454866

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 8

SCREW, 5/16-18 x 2-1/2 hex-hd cap type 8

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

1

BODY ASSY, multiple control valve, Not serviced separately, Order service package, 1263289C92 and 1263317C91

1шт.

2

379211R1

SPRING

flow control valve

1шт.

3

382297R1

PLUG

flow control valve

1шт.

4

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube, flow control valve plug

1шт.

5

63723C1

VENT

flow control, orifice

1шт.

6

9410357

PLUG

1/2-20 znd str-thd o-ring boss flow control orifice port

1шт.

8

384443R92

VALVE

ASSY, safety, 2000 PSI

1шт.

9

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32, safety valve

1шт.

10

536855R1

PLUG

3/4-16 znd str-thd o-ring boss, safety valve

1шт.

11

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, safety valve plug

1шт.

12

9410355

PLUG,Hex Hd, 3/8"-24 ORB

3/8-24 znd str-thd o-ring boss, power steering input port

1шт.

13

379795R1

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk, 3/16 OD tube, Power steering input port plug

1шт.

14

123357C1

SPRING

oil cooler by-pass valve

1шт.

15

123356C1

VALVE

by-pass

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 chaffered str by-pass valve retaining

1шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

9410228

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, Pipe

CONNECTOR, 9/16-18 37 deg hyd flared tube long swivel

1шт.

19

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, regulator pressure port

1шт.

20

382306R1

SPRING

pressure regulator valve outer

1шт.

21

59752C1

SPRING

pressure regulator valve inner

1шт.

22

382307R11

VALVE

ASSY, pressure regulator

1шт.

23

536855R1

PLUG

3/4-16 znd str-thd o-ring boss, pressure regulator valve

1шт.

24

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, pressure regulator valve plug

1шт.

25

382312R1

SPRING

lube regulator

1шт.

26

382301R1

LOCK VALVE

VALVE

1шт.

103697

PIN,1/8" x 1 3/8"

1/8 x 1-3/8 chaffered str

1шт.

27

384403R1

PLUG

lube regulator by-pass valve

1шт.

28

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, lube regulator by-pass valve plug

1шт.

29

391942R2

VALVE

clutch dump

1шт.

30

382310R1

SPRING

dump valve

1шт.

31

387934R2

PLUG

dump valve

1шт.

32

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube, dump valve plug

1шт.

33

529883R91

OIL SEAL

clutch dump valve plug

1шт.

34

59753C92

VALVE

ASSY, drive selector

1шт.

35

382315R2

GUIDE

drive selector

1шт.

36

59755C1

SPRING

selector valve inner

1шт.

37

59754C1

SPRING

selector valve outer

1шт.

38

382319R2

PIN,20.32mm OD x 93.98mm L

1шт.

20347R1

PIN,5/64" x 3/4", Coiled

1шт.

39

382321R2

SCREW,1 3/16" - 18 x 1.60"

drive selector valve retaining

1шт.

40

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

5/8 x 13/16 x 3/32, drive selector valve stem

1шт.

41

372821R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

11/16 x 1-1/4 x 3/32, valve retaining screw

1шт.

42

382627R1

SNAP RING,#59, Ext

Ring, Snap, , drive selector valve #59, Ext

1шт.

43

382323R3

GASKET

multiple control valve inner

1шт.

44

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

13/16 x 1 x 3/32

1шт.

45

470585R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 6, 90 Duro

power steering input port

1шт.

46

382324R1

PLATE ASSY.

PLATE, multiple control valve inner

1шт.

47

382325R1

COVER ASSY

COVER, multiple control valve outer, 1586, Serial Range: -15507

1шт.

179814

SPACER

3шт.

47

1263290C1

COVER

multiple control valve outer, Replaces 138053C1, 1586, Start Serial: 15508

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

3шт.

25944R1

BOLT

9/16-NF x 3/4 phc type 5

1шт.

138260C1

SEAL

Dyna

1шт.

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

48

382326R4

GASKET

multiple control valve cover

1шт.

49

VALVE, flow control, Not serviced separately, Order service package, 1263289C92 and 1263317C91

1шт.

50

25828R1

BOLT,Hex, 9/16" - 18 x 1", Gr 8

9/16NF x 1 phc type 8

1шт.

Required with 1263290C1 outer cover for clean out port.

1шт.

51

138260C1

SEAL

Dyna

1шт.

Required with 1263290C1 outer cover for clean out port.

1шт.

52

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

Required with 1263290C1 outer cover for clean out port.

1шт.

1263289C92

PACKAGE

multiple control valve service, Consists of ref. nos. 1 thru 52 and service parts not applicable to this tractor

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

9410360

PLUG

1шт.

113935C1

ELBOW

1шт.

384444R92

VALVE

1шт.

113937C1

SPRING

1шт.

9403371

CAP,37 Degree, 9/16"-18

1шт.

1263317C91

KIT

PACKAGE, MCV hardware service, Consists of

1шт.

179829

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

4шт.

26525R1

BOLT,Hex, 5/16" - 18 x 2 5/8", Gr 8

5/16 x 2-5/8 pln type 8

14шт.

445572

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 8

5/16 x 2-3/4 pln type 8

10шт.

INSTRUCTIONS (NSS)

1шт.

7

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube, Flow control orifice port plug

1шт.

393877R93

GASKET KIT

1шт.
