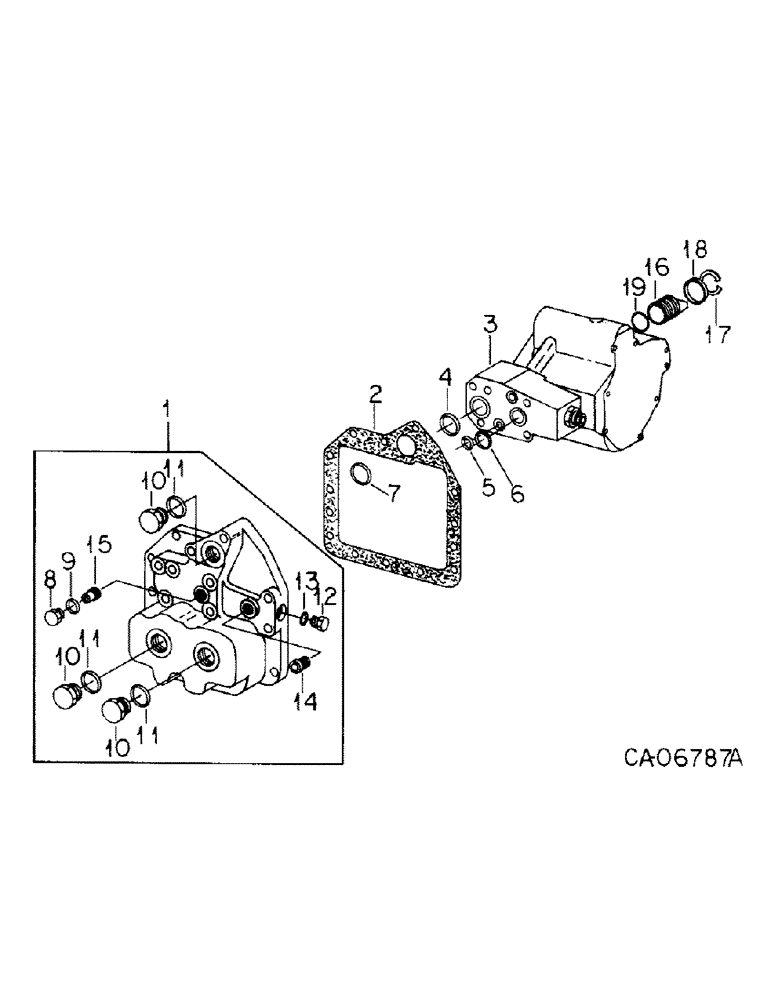

Запчасти Case IH 1586 (10-06) - HYDRAULIC, HYDRAULIC POWER SUPPLY, IN REAR FRAME, 1586 TRACTOR WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS

1

140628C91

FLANGE

FLANGE ASSY, pump mtg, Includes ref. nos. 8 thru 15

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

BOLT, 3/8 x 1-3/8 pln type 5

5шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 2 1/2", G5

2шт.

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

BOLT, Hex, 3/8"-16 x 3", G5

3шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

BOLT, 3/8 x 4-1/2 type 5

5шт.

565832R1

WASHER

WASHER, pump mtg bolt

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

382244R4

GASKET

GASKET, pump mounting flange

1шт.

3

PUMP, piston, renewed, Not serviced separately, Order service package 1263450C91

1шт.

4

25897R1

O-RING,-022, 90 Duro, .989" ID x .070" Thk

O-RING, 1 x 1-1/8 x 1/16, pressure port

1шт.

5

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

O-RING, 3/8 x 9/16 x 3/32, attenuator port

1шт.

6

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

O-RING, 13/16 x 1 x 3/32, signal port

1шт.

7

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

O-RING, 1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame

1шт.

8

9410358

PLUG

PLUG, 3/8 C-Z str thd o-ring boss

1шт.

9

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

O-RING, 6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

10

9410361

PLUG

PLUG, 3/4 C-Z st thd o-ring boss

5шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

O-RING, 3/4 OD tube, Serviceable items are

5шт.

12

9410356

PLUG

PLUG, 1/4 C-Z str thd o-ring boss

1шт.

13

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

O-RING, 4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

14

127886C1

BLEEDER VALVE

VALVE ASSY, signal orifice

1шт.

15

140736C1

FILTER SCREEN

SCREEN ASSY, signal

1шт.

16

128186C2

TUBE,1.25" OD, 2.125" Length

TUBE, pump suction

1шт.

17

27933R1

SNAP RING,#125, 1.188", Ext Spiral

RING, retaining

1шт.

18

537545R92

SEAL

SEAL, pump suction tube oil

1шт.

19

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

O-RING, 1-1/4 x 1-7/16 class 5, pump inlet

1шт.

1263450C91

PACKAGE

PACKAGE, PPH pump, renewed, Consists of

1шт.

PUMP ASSY, renewed (NSS)

1шт.

1263450C91C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1263450C92C

CORE-HYDRAULIC PUMP

Return Number, HYDRAULIC PUMP - for N.A. Only

1шт.

1263450C92R

REMAN-HYD PUMP

Remanufactured Hydraulic Pump; For N.A. only

1шт.

1263472C91

PACKAGE

PACKAGE, seal & gasket, Consists of

1шт.

537545R92

SEAL

SEAL, pump suction tube

1шт.

382257R2

GASKET

GASKET

1шт.

379794R1

O-RING,0.103" Thk x 1.237" ID, -124, Cl 5, 75 Duro

O-RING, pump inlet

1шт.
