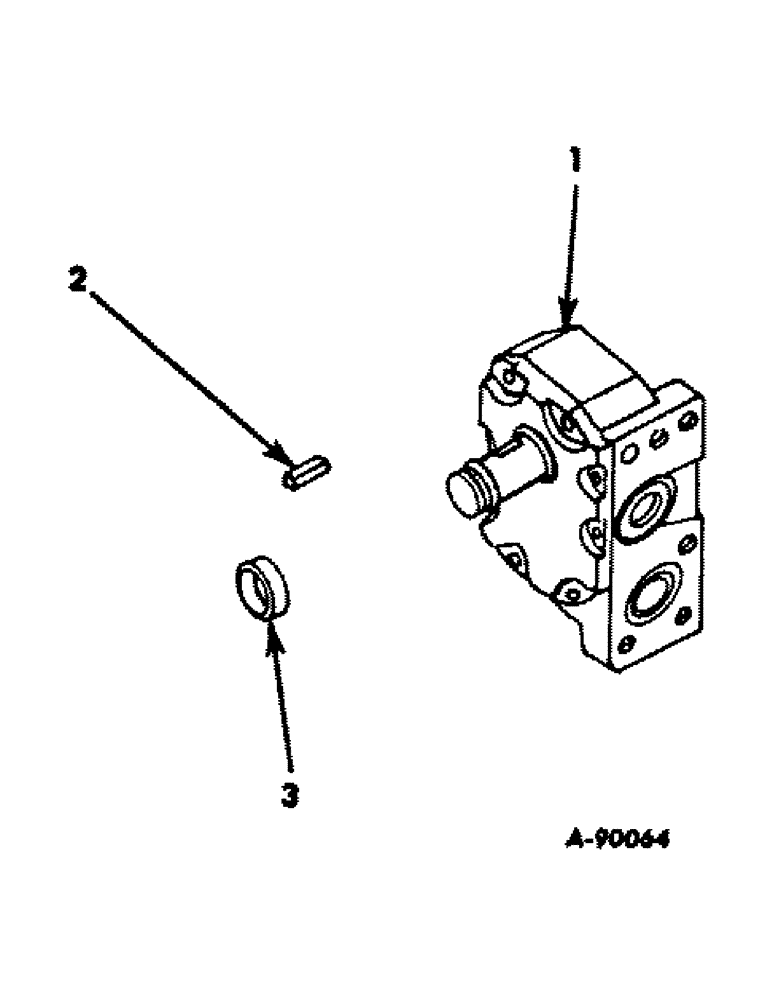

Запчасти Case IH 1586 (10-04) - HYDRAULIC, HYDRAULIC PUMP, THOMPSON, 9 GPM (07) - HYDRAULICS

1

133441C92

PUMP

ASSY, hydraulic, Includes ref. no. 2 and 3

1шт.

1

1949302C1

REMAN-HYD PUMP

Reman For New PN 133441C92

1шт.

1

1949303C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

383539R1

KEY

pump drive shaft

1шт.

3

373157R91

OIL SEAL

SEAL, pump drive shaft

1шт.

*

133442C1

KIT

hydraulic pump o-ring and gasket service, Consists of

1шт.

*

PLATE, pressure (NSS)

1шт.

*

WEB, backing (NSS)

2шт.

*

WEB, sealing (NSS)

1шт.

*

SEAL, shaft (NSS)

1шт.

*

INSTRUCTIONS (NSS)

1шт.
