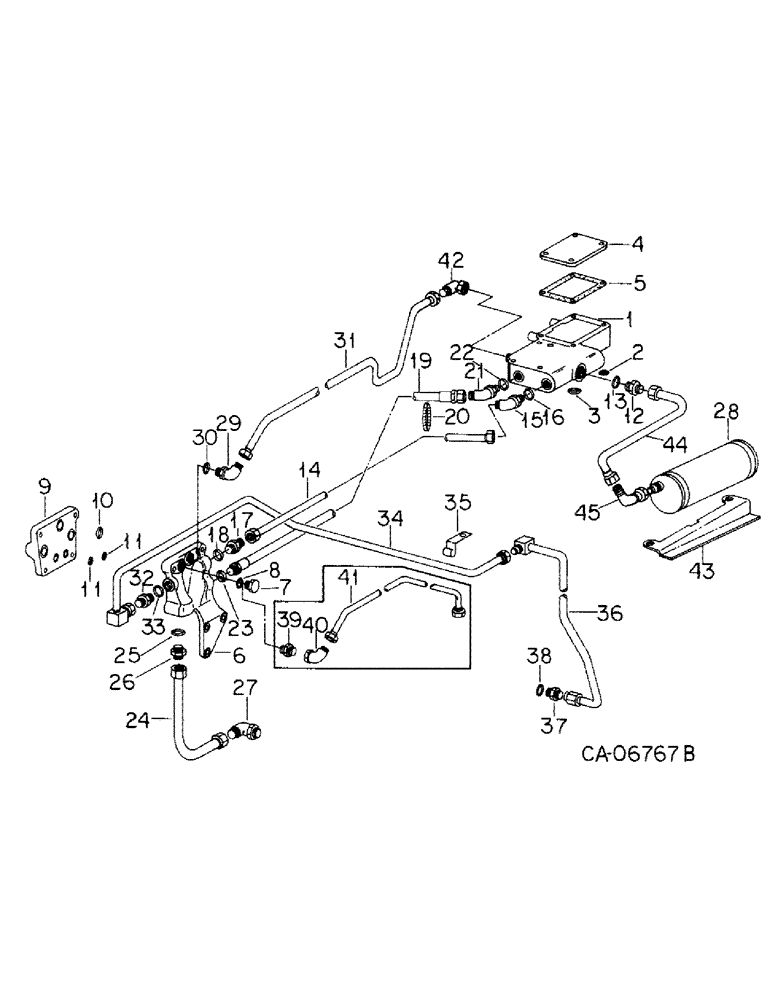

Запчасти Case IH 1586 (10-03) - HYDRAULIC, PRIORITY VALVE AND CONNECTIONS, 1586 TRACTOR WITH SERIAL NO. 21000 AND ABOVE (07) - HYDRAULICS

1

133799C91

VALVE

ASSY, priority, Refer to priority valve this group for list of components

1шт.

186279

BOLT,Hex, 3/8" - 16 x 3 1/8", Gr 5

3/8 x 3-1/8 pln type 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

2

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

3

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

4

108514C1

COVER

linkage access

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

5

108515C1

GASKET

cover

1шт.

6

127841C1

BRACKET

aux valve

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

7

9410357

PLUG

5/16 C-Z str thd o-ring boss, tractor w/o draft control

1шт.

9

127896C1

COVER

aux valve end

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

4шт.

10

391912R1

O-RING,0.737" ID x 0.103" Width

3/4 x 15/16 x 3/32

3шт.

11

702788R1

O-RING,0.103" Thk x 0.362" ID, -110, Cl 6, 90 Duro

3/8 x 9/16 x 3/32

2шт.

12

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4-37 deg hyd flared tube

1шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

14

127935C1

HYD TUBE

TUBE ASSY, motor supply

1шт.

15

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4-37 deg hyd flared tube adj str thd 45 deg

1шт.

16

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

17

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4-37 deg hyd flared tube

1шт.

18

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

19

142508C3

HOSE,15.88mm ID x 641.4mm L, SAE 100R2

auxiliary supply

1шт.

20

306132C1

CABLE TIE,14.5" L

STRAP, auxiliary supply hose, 1586, Serial Range: -21590

1шт.

21

9411107

ELBOW,45 Degree, 1 1/16"-12 x 1 1/16"-12, O-Ring

3/4 37 deg hyd flrd tube adj str thd 45 deg

1шт.

22

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

23

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube

1шт.

24

127939C1

HYD TUBE

TUBE ASSY, aux valve bracket return

1шт.

25

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 tube

1шт.

26

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4-37 deg hyd flared tube

1шт.

27

9402867

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

3/4 C-Z hyd flared tube 90D

1шт.

28

1252167C1

CYLINDER

ATTENUATOR ASSEMBLY, Replaces 140715C1 by also ordering the following parts

1шт.

336257R1

CLAMP

4.50 min hvy/duty t-bolt

1шт.

1252169C1

BRACKET

1шт.

1252168C1

HYD TUBE

TUBE ASSEMBLY

1шт.

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

1шт.

29

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

30

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

31

148895C1

HYD TUBE

TUBE ASSY, motor priority signal, Replaces 127937C1 by also ordering elbow, 9410280

1шт.

145330C1

CLAMP

tube

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 tube

1шт.

34

224443C2

HYD TUBE

TUBE ASSY, pump signal upper

1шт.

35

140733C1

COLLAR CLAMP

CLAMP, tube

1шт.

36

224407C2

HYD TUBE

TUBE ASSY, pump signal lower

1шт.

37

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

38

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

39

127866C1

VALVE

ASSY, draft control signal check

1шт.

With draft control only.

1шт.

40

9410279

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

hyd 37 deg, flare tube 90 deg swivel

1шт.

With draft control only.

1шт.

41

127936C2

HYD TUBE,0.312" OD, 257.05, 291.08 mm Length

TUBE ASSY, draft control signal

1шт.

With draft control only.

1шт.

42

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel, 1586, Serial Range: -20999

1шт.

42

9410280

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

3/8 C-Z hyd fld 90D swivel, 1586, Start Serial: 21000

1шт.

43

1252169C1

BRACKET

mounting

1шт.

390309C1

WASHER

.656 x 1.312 x .095 hdn

2шт.

413-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

BOLT, 5/8 x 4-1/4 pln type 5

2шт.

336257R1

CLAMP

4.50 min hv/duty t-bolt

1шт.

44

1252168C1

HYD TUBE

TUBE ASSY, attenuator

1шт.

45

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

1шт.

With draft control only.

1шт.

8

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
