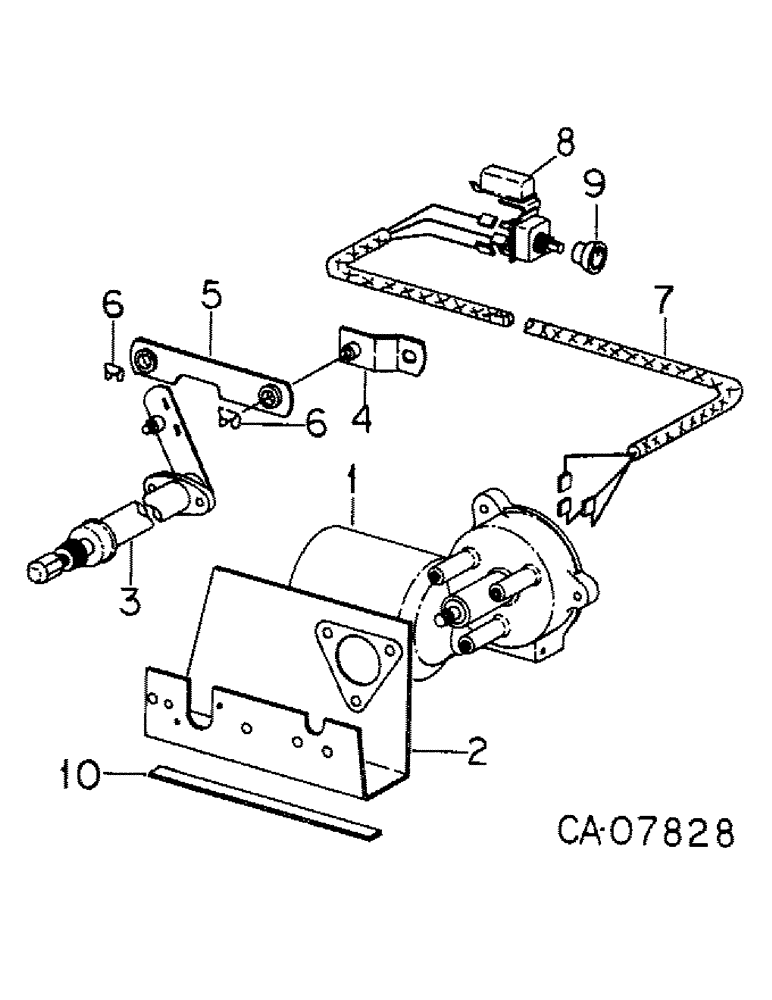

Запчасти Case IH 1586 (08-19) - ELECTRICAL, WINDSHIELD WIPER MOTOR (06) - ELECTRICAL

1

1267548C91

WIPER MOTOR

MOTOR, windshield wiper, Replaces 143417C1

1шт.

2

BRACKET, mounting screw

3шт.

Not serviced separately, Furnish kit 1267542C91.

1шт.

NUT, lock, Note

2шт.

Not serviced separately, Furnish kit 1267542C91.

1шт.

148074R1

WASHER

2шт.

SCREW W/LOCKWASHER

2шт.

Not serviced separately, Furnish kit 1267542C91.

1шт.

3

SHAFT AND PIVOT ASSY

1шт.

Not serviced separately, Furnish kit 1267542C91.

1шт.

1267556C1

BUTTON

NUT, knurled driver, Replaces 3016057R1

1шт.

4

ARM ASSY, drive, Note

1шт.

Not serviced separately, Furnish kit 1267542C91.

1шт.

5

LINK ASSY, connecting

1шт.

Not serviced separately, Furnish kit 1267542C91.

1шт.

6

739487C1

CLIP

spring, Replaces 937547C1

2шт.

7

143340C1

HARNESS

ASSY, windshield wiper

1шт.

8

109222C1

SWITCH

windshield wiper w/circuit breaker

1шт.

109311H

JAM NUT

7/16-28 hex face

1шт.

9

111282C1

KNOB

wiper control

1шт.

10

118149C1

BAR

wiper mounting

1шт.

Cabs with serial no. 107807 and above.

1шт.

117829C1

NUT

J type retainer

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 type 1

2шт.

120394

WASHER,3/8", SAE

WASHER, .406 x .812 x .051

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23048R1

WASHER

.719 x 1.250 x .027 (Or as required)

4шт.

239805R1

TERMINAL CONNECTOR

TERMINAL, locking, Use on motor assy 109223C91

3шт.

239808R1

CONNECTOR, ELEC

CONNECTOR, Use on motor assy 109223C91

3шт.

1267542C91

PACKAGE

KIT, wiper linkage service, Consists of ref. no. 3 thru 6

1шт.
