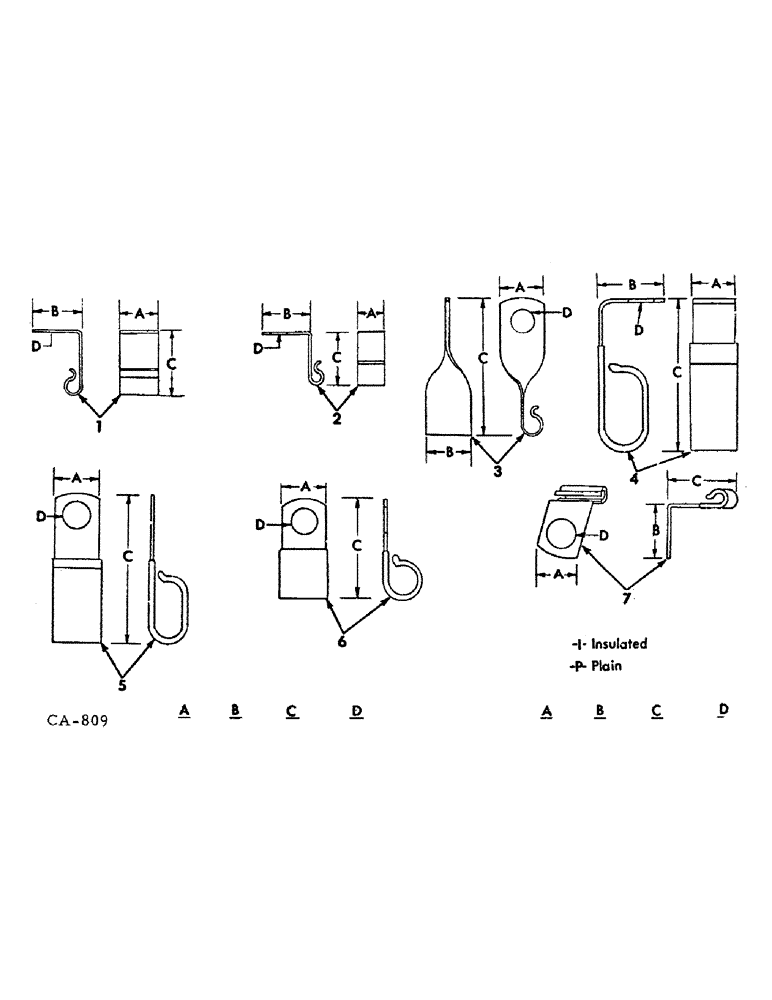

Запчасти Case IH 1586 (08-15) - ELECTRICAL, CLIPS AND GROMMETS (06) - ELECTRICAL

1

365584R1

CLIP

7 pole connector cables, I, 3/4, 1, 1, 13/32

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

95-11041

WASHER,3/8"

1шт.

1

370383R1

CLIP

solenoid switch cables

2шт.

370383R1

CLIP

main harness

1шт.

102635

NUT,3/8"-16, G5

I, 3/4, 15/16, 1-3/4, 15/32 3/8"-16, G5

1шт.

2

365524R1

CLAMP

CLIP, key switch cable, I, 7/8, 1-5/16, 15/16, 17/32

1шт.

2

146422C1

CLAMP

CLIP, battery cable long, I, 3/4, 15/16, 2-5/8, 13/16

1шт.

3

363660R1

CLIP

main harness, twisted, I, 3/4, 3/4, 2-5/8, 13/32

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

3

363660R1

CLIP

front harness, I, 3/4, 3/4, 2-5/8, 13/32

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

120394

WASHER,3/8", SAE

WASHER, 3/64 x 13/16 x .065 znd

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

362126R1

CLIP

main harness, I, 3/4, 3-5/8, 13/32

1шт.

6

362126R1

CLIP

park lock neutral switch cables, I, 3/4, 3-5/8, 13/32

1шт.

6

384557R1

CLIP

main harness, I, 3/4, 1-5/8, 9/32

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

109084

NUT,1/4"-20, G5

1шт.

6

362123R1

CLIP

front harness, I, 3/4, 2-1/8, 15/32

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

6

384554R1

CLIP

headlight & horn cable, I, 3/4, 1-35/64, 13/32

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

95-11028

WASHER,1/4"

1/4 x 5/8 x .051

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, head light cable, I, 3/4, 3-5/8, 13/32

2шт.

6

366460R1

CABLE CLIP

CLIP, ether solenoid cable, I, 3/4, 1-1/4, 13/32

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

6

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, neutral start cables, I, 3/4, 1-9/16, 13/32

1шт.

6

146421C1

CLAMP

CLIP, battery cable short, I, 3/4, 2-1/8, 15/32

2шт.

6

362666R1

CLIP

solenoid switch cables, I, 3/4, 2-1/8, 15/32

1шт.

6

362667R1

CLIP

engine oil press switch cable, I, 3/4, 1-61/64, 15/32

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

1шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x .051

1шт.

6

366460R1

CABLE CLIP

CLIP, floodlight harness, I, 3/4, 1-1/4, 13/32

2шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

6

384555R1

CLIP

brake wear cable, I, 3/4, 1-7/8, 15/32

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1/2 x 1/2 pln type 5

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

1шт.

6

383622R1

CLIP

brake wear cable, I, 1, 1-11/16, 17/32

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

.531 x 1.062 x .074 pln

1шт.

179875

BOLT,Hex, 1/2" - 13 x 1/2", Gr 5

1/2 x 1/2 pln type 5

1шт.

6

366460R1

CABLE CLIP

CLIP, aux lighting cable, I, 3/4, 1-1/4, 13/32

2шт.

6

362667R1

CLIP

aux lighting cable, I, 3/4, 1-61/64, 15/32

1шт.

6

384559R1

CLIP

ether solenoid cable, I, 3/4, 1-1/4, 13/32

1шт.

7

384556R1

CLAMP

CLIP, transmission oil switch cable, I, 3/4, 1, 1-61/64, 15/32

1шт.

104393C2

CLAMP

CLIP, main cable harness

1шт.

NLS

NO LONGER SERVICED

1шт.

120394

WASHER,3/8", SAE

WASHER, 3/64 x 13/16 x .065 znd

1шт.

104389C1

CLIP

inst. light and dimmer switch cable

3шт.

123548H

GROMMET

neutral switch cables, Located in firewall

1шт.

104363C2

GROMMET

main cable harness

1шт.
