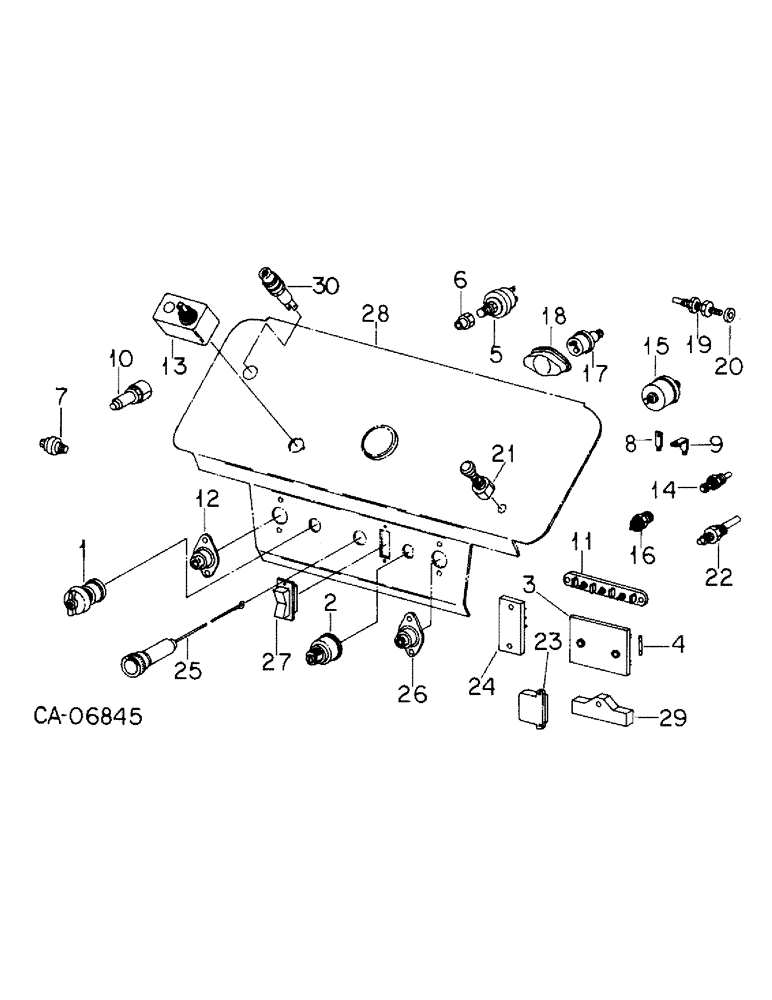

Запчасти Case IH 1586 (08-13) - ELECTRICAL, SWITCHES, FUSES AND JUNCTION BLOCK (06) - ELECTRICAL

1

107200C2

LIGHT SWITCH

SWITCH ASSY, lighting

1шт.

2

107682C1

SWITCH

ASSY, key start

1шт.

365502R1

NUT

switch mounting

2шт.

375431R1

LOCK WASHER

switch mounting

1шт.

131313C1

KEY, IGNITION

switch, Part of switch assy, 107682C1, Replaces 382458R2

1шт.

3

107356C3

BOX

ASSY, fuse, block

1шт.

160052

SCREW,Cross Pan Hd, #10 - 32 x 5/8"

no. 10-NF x 5/8 znp p/hdcr mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

5шт.

4

9426332

FUSE,25 Amp, Type 3AG

cartridge type 3AG-25, white, headlights

1шт.

4

9426333

FUSE,15 Amp, Type 3AG

cartridge type 3AG-15, lt. blue, warning lights

1шт.

4

9426868

FUSE,5 Amp, Type 3AG

cartridge type 3AG-5, tan, gage cluster

1шт.

5

3224405R91

RESTRICTION SWITCH

SWITCH ASSY, electric air cleaner vacuum, Replaces 538724R1

1шт.

6

389908R91

ADAPTER

ASSY, vacuum switch, Serial Range: -14959

1шт.

7

376855R92

SWITCH

trans. oil presure

1шт.

8

384396R1

SPADE TERMINAL,Male

TERMINAL, oil & coolant switches, str

1шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

2шт.

87825

NUT,#10-32

2шт.

9

NOT USED IN THIS APPLICATION

1шт.

10

121629C2

SWITCH

ASSY, neutral starting

2шт.

11

107355C1

BLOCK

ASSY, junction

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1/4 x 3/4 pln type 5

2шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

87825

NUT,#10-32

4шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

4шт.

12

397940R93

SWITCH

ASSY, ether solenoid push button

1шт.

160046

SCREW,Cross Pan Hd, #10 - 32 x 1/2"

2шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

2шт.

87825

NUT,#10-32

2шт.

13

131066C91

SWITCH

ASSY, turn signal & flasher, Stewart Warner, Replaces switch, 107334C91, Optional w/switch, 131209C91

1шт.

13

131209C91

SWITCH

ASSY, turn signal & flasher, Lucas Ltd., Optional with switch, 131066C91

1шт.

14

121756C2

SENSOR

SENDER, coolant temperature

1шт.

15

130707C3

SENDER UNIT

SENDER, engine oil pressure

1шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

NOT USED IN THIS APPLICATION

1шт.

18

NOT USED IN THIS APPLICATION

1шт.

19

121809C1

SWITCH

brake warning, For use w/main harness assy, 120166C2

2шт.

19

130979C1

SWITCH

brake warning, for use w/main harness assy, 139139C2

2шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Furnished as part of switch 130979C1

2шт.

20

121814C1

RETAINER

switch boot, Replaces 1959370

2шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

2шт.

87825

NUT,#10-32

2шт.

21

121705C91

SWITCH

ASSY, instrumnet light dimmer, Consists of

1шт.

146566C1

KNOB

1шт.

109311H

JAM NUT

1шт.

22

449791C1

SWITCH

PROBE ASSY, low coolant level

1шт.

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

1шт.

87825

NUT,#10-32

1шт.

23

121770C2

TRANSMITTER

MODULE ASSY, low coolant level

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

24

121760C1

RECTIFIER

ASSY, indicator light, For use w/harness, 120166C2

1шт.

24

130977C1

RECTIFIER

ASSY, indicator light, For use w/harness, 139139C2

1шт.

24377R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW, no. 8-18 x 1/2 p/hdcr tap

2шт.

25

382671R91

CIGAR LIGHTER

PARTS ACCESSORY, cigar lighter, Only serviceable item is

1шт.

378781R91

PACKAGE

UNIT, pop-out, 12 volt, cigar lighter

1шт.

26

397940R93

SWITCH

horn button

1шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

no. 10-NF x 1/2 znp p/hds mach

2шт.

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, no. 10 ext tooth lock

2шт.

27

131319C1

SWITCH

ASSY, rocker, tractors w/rear fender auxiliary lights

1шт.

159387

BRACKET,Cross Pan Hd, #6 x 3/8"

SCREW, no. 6 x 3/8 phc p/hdcr mach

2шт.

28

PANEL, instrument, Refer to group 11

1шт.

29

107558C1

RESISTOR

25 OHM, Replaces 534784R1

1шт.

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

1шт.

120392

WASHER,1/4", SAE

.281 x .625 x .051

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

30

NOT USED THIS APPLICATION

1шт.

71485C1

PACKAGE

KIT, turn signal switch handle and hardware, Used for service on switches, 131066C91 and 131209C91, Consists of

1шт.

SCREW (NSS)

1шт.

WASHER (NSS)

1шт.

NUT (NSS)

1шт.

HANDLE (NSS)

1шт.
