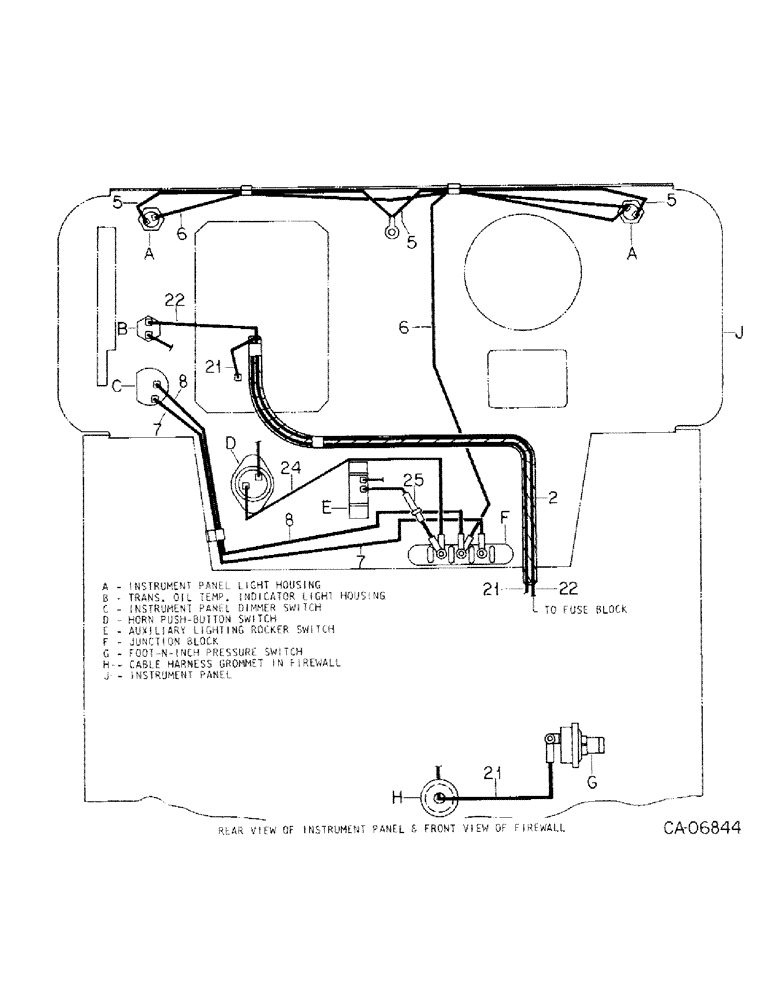

Запчасти Case IH 1586 (08-11) - ELECTRICAL, ELECTRICAL WIRING AND LIGHTING (06) - ELECTRICAL

1

121766C1

BATTERY

12 volt maintenance free, or

2шт.

1

IHMF24PF

DRY BATTERY

12 volt maintenance free

2шт.

2

139139C2

HARNESS

ASSY, main cable, Replaces 120166C2

1шт.

120344C1

CONDUIT

convoluted, Use on main cable harness

1шт.

120253C1

CONDUIT

convoluted, Use on harness to junction block cables

1шт.

121597C1

CONNECTOR, ELEC

CONNECTOR, comb. flasher & turn signal switch, Furnish as part of harness assy, 139139C2

1шт.

120253C1

CONDUIT

convoluted, Use on park lock neutral switch cables

1шт.

3

104380C2

HARNESS

ASSY, front cable

1шт.

109084

NUT,1/4"-20, G5

Gnd terminal 1/4"-20, G5

1шт.

399470R1

BOOT

INSULATOR, terminal cover boot, Furnish as part of harness assy, 104380R1

1шт.

120253C1

CONDUIT

convoluted, Use on park lock neutral switch cables

1шт.

4

120158C1

HARNESS

ASSY, front flood lights

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Harness ground on clutch housing Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

5

104384C1

CABLE

ASSY, instrument, Serial Range: lights-ground

1шт.

6

104385C1

CABLE

ASSY, instrument lights to junct. block

1шт.

7

120294C1

CABLE

ASSY, light switch to dimmer switch

1шт.

8

120295C1

CABLE

ASSY, dimmer switch to instrument lights

1шт.

9

534374R1

CABLE

ASSY, headlight, Serial Range: junction-gnd

1шт.

10

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, Serial Range: -14959

1шт.

11

104388C2

CABLE

ASSY, seven pin, Serial Range: connector-gnd

1шт.

12

64525C1

CABLE

ASSY, RH warning, Serial Range: lt.-connector

1шт.

13

64526C1

CABLE

ASSY, LH warning, Serial Range: lt.-connector

1шт.

14

629029R92

NEG BATTERY CABLE

STRAP ASSY, battery to ground, Replaces 378760R91

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

15

130790C2

CABLE

ASSY, battery RH, Replaces 121690C1 by also ordering cable 130789C1

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal, 1 per terminal

1шт.

121785C1

INSULATOR

COVER, battery cable terminal, large, positive terminal on LH battery, For use w/one piece cable

1шт.

383619R1

COVER

battery cable terminal, positive terminal on RH battery

1шт.

394910R1

COVER, cranking motor solenoid term.

1шт.

16

399470R1

BOOT

INSULATOR, terminal cover boot, cranking motor solenoid, S term., brake wear switches, alternator, batt., terminal, coolant level probe

1шт.

17

533063R91

LIGHT

ASSY, shock proof head, tractors w/die cast lt. support, Consists of

2шт.

373662R91

LAMP

ASSY, seal beam, Optional w/131508C1

1шт.

131508C1

LAMP BASE

LAMP ASSY, seal beam, Tungsten-Halogen, Optional w/373662R91

1шт.

676078R1

RETAINER

rubber

1шт.

533081R1

SCREW,Phillips Drive, Flat HD, 1/4" x 1"

head light support

8шт.

17

388945R91

HEADLIGHT

LIGHT ASSY, shock proof head, tractors w/plastic light support, Consists of

2шт.

373662R91

LAMP

ASSY, seal beam, Optional w/131508C1

1шт.

131508C1

LAMP BASE

LAMP ASSY, seal beam, Tungsten-Halogen, Optional w/373662R91

1шт.

676078R1

RETAINER

rubber

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

71781C1

THRUST WASHER

thrust

2шт.

18

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET ASSY, 7 pole flap lock connector

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

19

481849C1

PROTECTIVE COVER

COVER, 7 pole socket rubber, Replaces 783611C1

1шт.

20

121646C1

TERMINAL CONNECTOR,Female

PLUG, connector 7 pin

1шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

NOT USED IN THIS APPLICATION

1шт.

23

411949C91

HORN

ASSY, Delco-Remy, Replaces 166166R91

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

24

404397R1

CABLE

ASSY, horn switch to junction block

1шт.

25

131436C1

CABLE PULLING GRIP

CABLE ASSY, junction block to auxiliary light switch, tractors w/rear fender auxiliary lights

1шт.

9426333

FUSE,15 Amp, Type 3AG

3AG-15 amp

1шт.

26

405227R1

CABLE

ASSY, ether, Serial Range: solenoid-ground

1шт.

27

130789C2

CABLE

ASSY, battery LH, Replaces 121690C1 by also ordering RH cable 130790C1

1шт.
