Запчасти Case IH 1586 (08-03) - ELECTRICAL, ALTERNATOR-GENERATOR DELCO-REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL

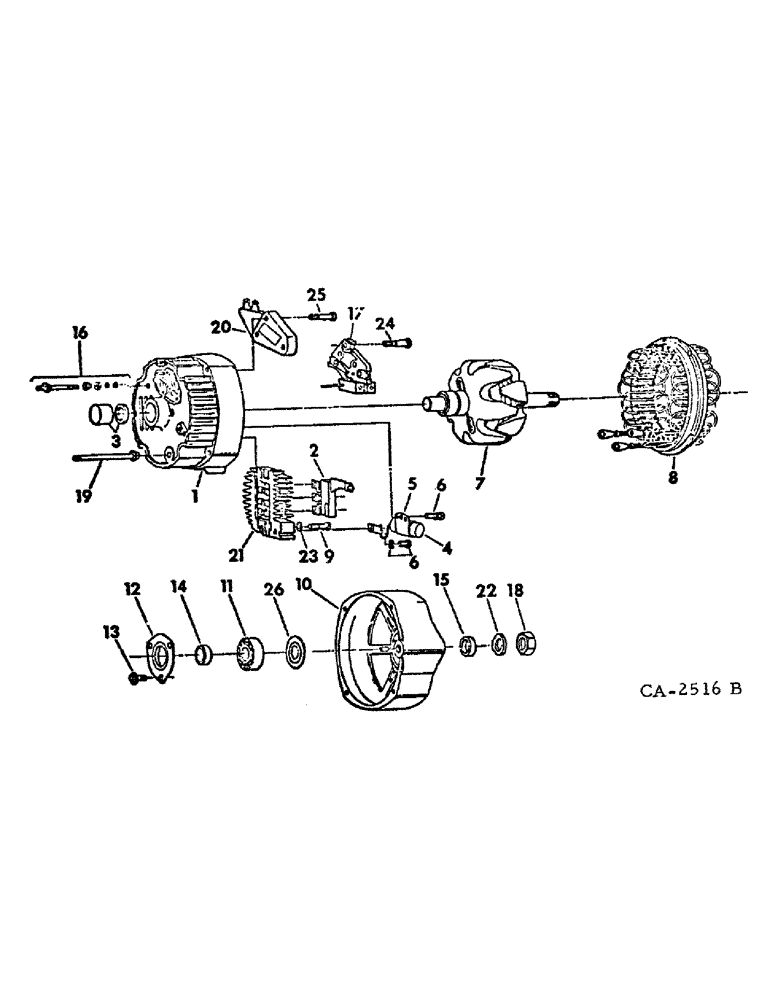

Схема запчастей Case IH 1586 - (08-03) - ELECTRICAL, ALTERNATOR-GENERATOR DELCO-REMY, WITH INTEGRAL SOLID STATE VOLTAGE REGULATOR (06) - ELECTRICAL
25
19
26
1
2
3
20
13
21
5
7
18
12
11
23
4
22
16
15
17
8
24
10
6
14
9
6

Артикул

Название

Примечание

Количество

1100578

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 37 ampere, Furnish 1103171

1шт.

1100583

GENERATOR

ALTERNATOR-GENERATOR ASSY, 42 ampere, Furnish 1103171

1шт.

1100585

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 61 ampere, Furnish 1103183

1шт.

1100581

ALTERNATOR

ALTERNATOR-GENERATOR ASSY, 61 ampere, Furnish 1103183

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator

1шт.

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

103798A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 63 Ampere

1шт.

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

A46932

ALTERNATOR

ALTERNATOR - 12 volt 63 ampere

1шт.

103799A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 63 Ampere

1шт.

103799A1C

CORE-ALTERNATOR

Return Number

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 61 Amp Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 61 Amp Alternator

1шт.

103802A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103802A1C

CORE-ALTERNATOR

Return Number

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 Volt, 100 Amp Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Number, 12 Volt, 100 Amp Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1974939

CASE

FRAME, slip ring end

1шт.

2

1971528

RECTIFIER

DIODE TRIO, negative

1шт.

3

423649C91

BALL BEARING

BEARING ASSY, slip ring end

1шт.

4

801824

CAPACITOR

CAPACITOR

1шт.

5

1869573

BRACKET

BRACKET, capacitor attaching

1шт.

6

1851612

SCREW

SCREW, capacitor bracket

2шт.

7

1891598

ROTOR

ROTOR ASSY

1шт.

8

1971986

STATOR

STATOR ASSY, Used on 42 amp

1шт.

8

1971639

STARTER MOTOR

STATOR ASSY, Used on 61 amp

1шт.

9

1876668

SCREW

SCREW, rectifier bridge attaching

1шт.

10

1976808

FRAME

PACKAGE, drive end frame, Replaces 1970525 & 1976137

1шт.

11

539103R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

BEARING ASSY, drive end

1шт.

12

1971993

PLATE

PLATE, drive end bearing retainer

1шт.

13

A46941

SCREW,Hex Washer, #10 - 24 x 0.52"

SCREW, retainer plate attaching

3шт.

14

NOT USED IN THIS APPLICATION

1шт.

15

A49733

COLLAR

COLLAR, outside drive end, Use w/frame 1976137, 1976808

1шт.

15

1959991

COLLAR

COLLAR, outside drive end, Use w/frame 1970525

1шт.

16

1975471

PACKAGE

PACKAGE, battery output terminal, Replaces 1846900

1шт.

16

1851714

KIT

TERMINAL PACKAGE, relay, Used on 61 ampere alter-gen only

1шт.

17

1876873

HOLDER

BRUSH HOLDER AND BRUSH ASSY

1шт.

18

1915172

NUT

NUT, drive end shaft

1шт.

19

1965975

BOLT, thru

4шт.

20

1116392

REGULATOR

REGULATOR, voltage, solid state, Replaces 1116387

1шт.

21

1875627

HOLDER

BRIDGE, positive rectifier

1шт.

22

1941978

WASHER

WASHER, drive end shaft nut lock

1шт.

23

1847933

WASHER

WASHER, rectifier bridge screw

3шт.

24

1846864

SCREW

SCREW, insulated brush holder

2шт.

25

1971519

SCREW

SCREW, ground brush holder

1шт.

26

NOT USED IN THIS APPLICATION

1шт.

1894976

STRIPPER PACKAGE

PACKAGE, alternator generator conversion, Consists of

1шт.

.

CABLE ASSY (NSS)

1шт.

1894559

HOLDER

HOLDER ASSY, brush & brush

1шт.

1894570

FRAME

FRAME ASSY, slip ring end

1шт.

9436831

BEARING

BEARING, slip ring end frame

1шт.

1961323

SEAL

SEAL, oil

1шт.

1894586

SCREW

SCREW ASSY, reg ground

1шт.

1974020

SCREW

SCREW, brush holder pivot

1шт.

1894568

ELEC CONNECTOR

TERMINAL RELAY

1шт.

.

CONNECTOR (NSS)

1шт.

.

INSTRUCTIONS (NSS)

1шт.

1876681

SCREW

SCREW ASSY, brush holder insulated

2шт.

.

TERMINAL, stud (NSS)

1шт.

.

INSULATOR (NSS)

1шт.

.

NUT ASSY (NSS)

1шт.

Выбрано товаров: 67
