(13-36) - SUPERSTRUCTURE, BLOWER ASSY P/N 143166C91, CAB WITH SERIAL NO. 107806 AND BELOW

Запчасти Case IH 1586 (13-36) - SUPERSTRUCTURE, BLOWER ASSY P/N 143166C91, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE

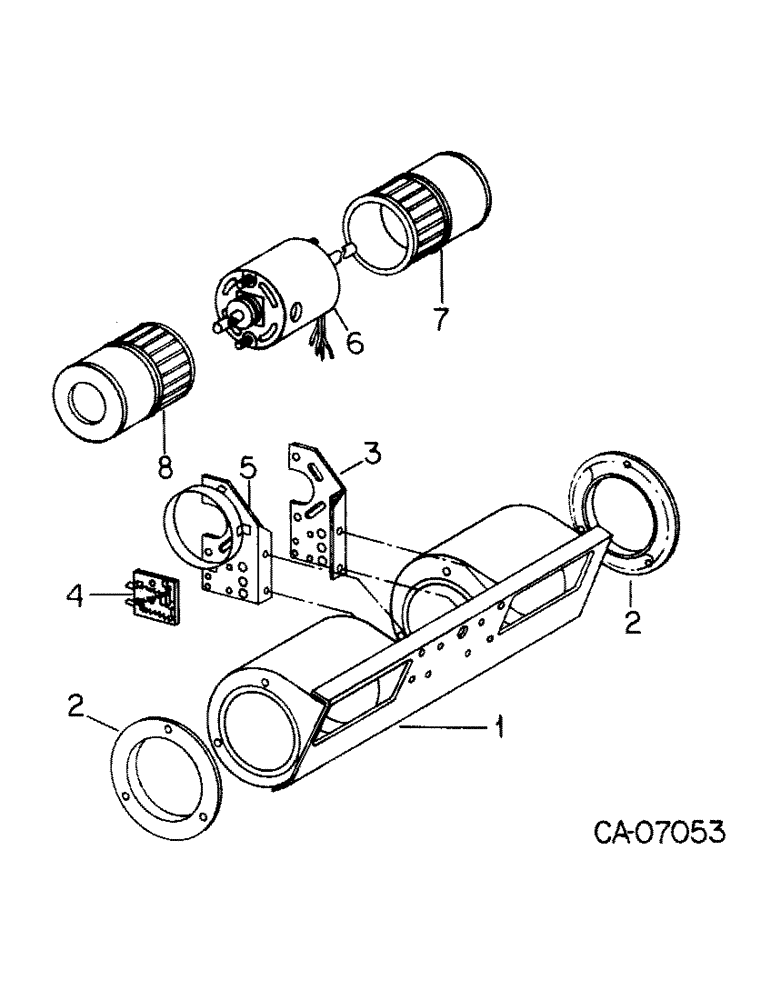

Схема запчастей Case IH 1586 - (13-36) - SUPERSTRUCTURE, BLOWER ASSY P/N 143166C91, CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE
3
5
2
1
6
8
2
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

143166C91

BLOWER

ASSY W/PERMANET MAGNET

1шт.

1

117785C2

HOUSING ASSY.

HOUSING ASSY, weldment

1шт.

2

65010C1

RETAINER

inlet

1шт.

24388R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, SELF TAPPING, Cross Pan Hd, #10 x 3/8"

6шт.

3

143168C1

SUPPORT ASSY.

SUPPORT, motor & resistor LH

1шт.

66299C1

NUT

10-32 hex keps

2шт.

4

143169C1

RESISTOR

ASSY

1шт.

449603

SCREW

no. 6 x 3/8 p/hdcr tap

2шт.

66299C1

NUT

10-32 hex keps

2шт.

5

143167C1

SUPPORT ASSY.

BRACKET ASSY, RH

1шт.

66299C1

NUT

10-32 hex keps

2шт.

6

142990C2

MOTOR, ELECTRIC

MOTOR, 12V DC, P.M.

1шт.

190333A1R

REMAN-ELECTRIC MOTOR,12V

1586, w/S/N 107806 & Below, Reman For New P/N's 142990C2 & 190333A1,

1шт.

190333A1C

CORE-ELECTRIC MOTOR,12V

Return Number

1шт.

66299C1

NUT

10-32 hex keps

4шт.

7

539018R2

FAN

wheel LH

1шт.

8

539077R2

FAN

wheel RH

1шт.
