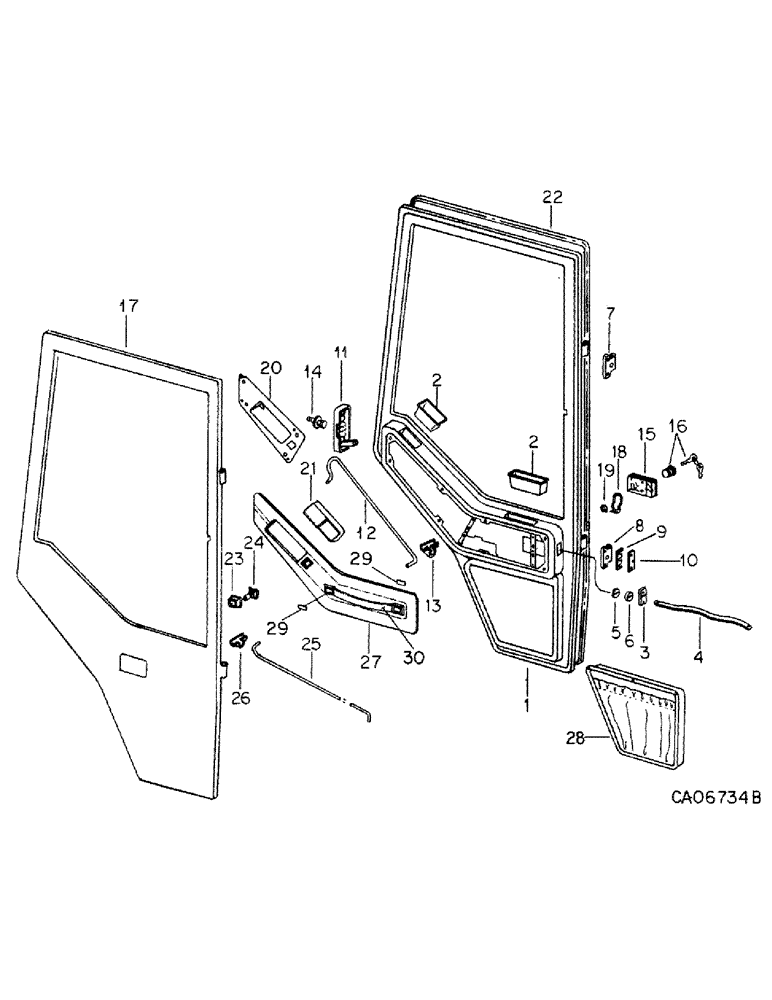

Запчасти Case IH 1586 (13-27) - SUPERSTRUCTURE, DOOR, TRACTOR CAB WITH DELUXE TRIM, ALL CABS WITH SERIAL NO. 107807 AND ABOVE (05) - SUPERSTRUCTURE

1

143348C2

DOOR

ASSY, cab LH side, Replaces 109509C3 by also furnishing hinges 109522C2 and 111341C1

1шт.

131-835

SPRING NUT,U, #10-24

10-24 phc U-spr style II

4шт.

2

111398C1

POCKET

door grab

4шт.

3

111552C2

HINGE

LATCH ASSY, door check, detent

2шт.

160515

SCREW,Cross Pan Hd, 1/4" - 20 x 1/2"

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

4

111495C2

ARM

door check

2шт.

5

111493C1

WASHER

slotted

2шт.

6

111494C1

WASHER

bumper

2шт.

103405

PIN, 3/16 x 1/2 pln cot

2шт.

28375R1

PIN, 1/4 x .750 phc type 1 hd

2шт.

1255811C1

NUT

push hat, Replaces 118091C1

2шт.

7

109522C2

HINGE

cab door upper body leaf

2шт.

8

111341C2

HINGE

cab door lower body leaf

2шт.

9

109524C1

SHIM

cab door hinge

4шт.

10

109385C1

PLATE

door hinge tapping

4шт.

1276055C1

SELF-TAP SCREW,Cross Flat Hd, 5/16" x 7/8"

SCREW, 5/16 x 7/8 polyseal f/hdcr l/w

6шт.

1276058C1

SCREW,Cross Flat Hd, Csk, 5/16" - 18 x 1", w/LW

5/16 x 1 polyseal f/hdcr l/w

6шт.

11

111471C1

LATCH

ASSY, door LH

1шт.

11

111472C1

HANDLE

LATCH ASSY, door RH

1шт.

1276056C1

SELF-TAP SCREW,Cross Pan Hd, 1/4" x 1 1/4"

SCREW, 1/4 x 1-1/4 polyseal p/hdcr mach

8шт.

178515

WASHER, 1/4 phc ext-int tooth lock

8шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

12

117953C1

ROD

latch control LH

1шт.

12

117954C1

ROD

latch control RH

1шт.

13

428497C1

REINFORCEMENT

rod

6шт.

14

111464C1

PLATE

STRIKER ASSY, door lock

2шт.

22825R1

WASHER

.469 x 1.250 x .164

2шт.

21331R1

WASHER

.469 x 1.250 x .054

2шт.

15

111465C1

HANDLE

ASSY, door outer LH

1шт.

15

111332C1

HANDLE

ASSY, door outer RH

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

16

111663C1

LOCK

ASSY, cab door w/key LH

1шт.

17

143349C2

DOOR

ASSY, cab RH side, Replaces 109510C3 by also furnishing hinges 109522C2 and 111341C2

1шт.

445438

BOX

10-24 phc U-spr style II

4шт.

18

897845R1

RETAINER

cylinder housing

1шт.

19

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

1шт.

20

118512C1

PANEL

door inner cover LH

1шт.

20

118513C1

PANEL

door inner cover RH

1шт.

21

111394C1

HANDLE

ASSY, door inner LH

1шт.

21

111395C1

HANDLE

ASSY, door inner RH

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

4шт.

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW, no. 10 x 3/8 polyseal p/hdcr mach

8шт.

22

109595C1

DOOR SEAL

door LH

1шт.

22

109596C1

DOOR SEAL

door RH

1шт.

23

118593C1

HOUSING

inner lock RH

1шт.

24

111410C1

BUTTON

inner lock RH

1шт.

25

109573C1

ROD

inner lock RH

1шт.

26

428497C1

REINFORCEMENT

rod end

2шт.

27

118547C1

PANEL ASSY.

PANEL, door inner trim, LH, Serial Range: -20999

1шт.

27

143380C92

PANEL

ASSY, door inner trim, LH, Start Serial: 21000

1шт.

27

118548C1

PANEL ASSY.

PANEL, door inner trim, RH, Serial Range: -20999

1шт.

27

143381C92

PANEL

ASSY, door inner trim, RH, Start Serial: 21000

1шт.

118550C1

CLAMP

CLIP, trim speed

18шт.

143353C1

NUT

10-24 speed trim

4шт.

28

143013C2

POCKET

ASSY, door, LH

1шт.

28

143014C2

POCKET

ASSY, door, RH

1шт.

143127C1

FASTENER

push-in, For round holes

8шт.

118550C1

CLAMP

CLIP, trim speed, For square holes

2шт.

29

143354C1

COVER

handle

4шт.

30

143365C2

HANDLE

door trim

1шт.
