Запчасти Case IH 1586 (13-25) - SUPERSTRUCTURE, DOOR, TRACTOR WITH CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE

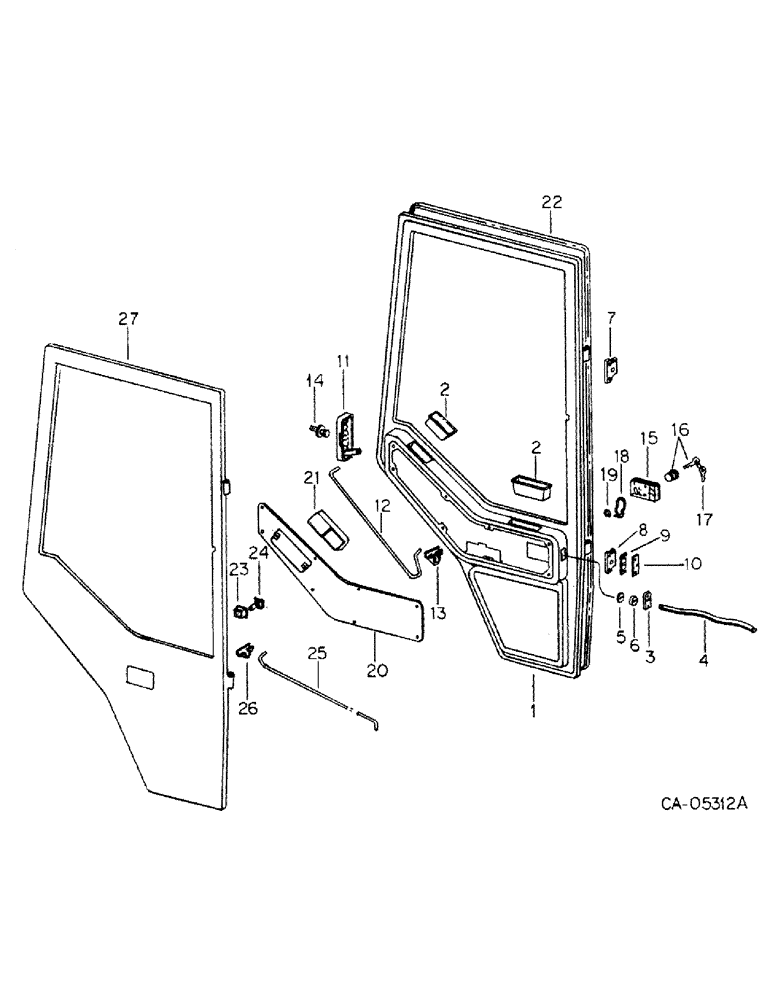

Схема запчастей Case IH 1586 - (13-25) - SUPERSTRUCTURE, DOOR, TRACTOR WITH CAB WITH SERIAL NO. 107806 AND BELOW (05) - SUPERSTRUCTURE
23
24
18
16
10
6
22
21
2
11
3
2
8
14
17
19
7
12
9
26
20
15
27
4
25
13
1
5

Артикул

Название

Примечание

Количество

1

143348C2

DOOR

ASSY, cab LH side, Replaces 109509C3 by also furnishing hinges 109522C2 and 111341C2

1шт.

131-835

SPRING NUT,U, #10-24

10-24 U-shaped spring

8шт.

142065

PLUG, 9/32 hole dia. ble button, tractors w/o deluxe cab trim att

4шт.

2

111398C1

POCKET

door grab

4шт.

3

111552C2

HINGE

DETENT ASSY, door check

2шт.

159658

SCREW,Cross Pan Hd, #8 - 32 x 3/4"

8-32 x 3/4 pan-hd cr-rec mach

4шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

120622

NUT,#8-32

4шт.

4

111495C2

ARM

door check

2шт.

5

111493C1

WASHER

slotted

2шт.

6

111494C1

WASHER

bumper

2шт.

18556R1

LOCK PIN,1/4" x 3/4", Slotted

PIN, 1/4" x 3/4", Slotted

2шт.

28375R1

PIN, 1/4 x .750 phc type 1 hd

2шт.

1255811C1

NUT

push hat, Replaces 118091C1

2шт.

7

109522C2

HINGE

cab door upper body leaf

2шт.

68765HA

AXLE PIN

PIN, cab door hinge

4шт.

8

111341C2

HINGE

cab door lower body leaf

2шт.

9

109524C1

SHIM

cab door hinge

4шт.

10

109385C1

PLATE

door hinge tapping

4шт.

27678R1

SCREW

5/16-18 x 7/8 znd cr-rec-F-hd mach w/ext. tooth lockwasher

12шт.

11

111471C1

LATCH

ASSY, door LH

1шт.

11

111472C1

HANDLE

LATCH ASSY, door RH

1шт.

160568

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

1/4 x 1-1/4 phc p/hdcr mach

8шт.

178515

WASHER, 1/4 ext-int tooth lock

16шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

8шт.

12

117953C1

ROD

latch control LH

1шт.

12

117954C1

ROD

latch control RH

1шт.

13

428497C1

REINFORCEMENT

rod

6шт.

14

111464C1

PLATE

STRIKER ASSY, door lock

2шт.

22825R1

WASHER

.469 x 1.25 x .164

2шт.

15

111465C1

HANDLE

ASSY, door outer LH

1шт.

15

111332C1

HANDLE

ASSY, door outer RH

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

2шт.

16

111663C1

LOCK

ASSY, cab door w/key LH

1шт.

17

KEY, cab door LH, See your local key dealer

1шт.

18

897845R1

RETAINER

cylinder housing LH

1шт.

19

379310R1

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, , LH #25, .207" Dia, E-Type

1шт.

20

111326C1

PANEL

door inner cover LH

1шт.

20

111327C1

PANEL

door inner cover RH

1шт.

131-835

SPRING NUT,U, #10-24

10-24 phc U-spr style II

16шт.

27114R1

SCREW

no. 10 x 1/2 phc o/hdcr mach

16шт.

21

111394C1

HANDLE

ASSY, door inner LH

1шт.

21

111395C1

HANDLE

ASSY, door inner RH

1шт.

174097C1

FLANGE NUT,Flg, USR, #10-24

10-24 C-Z flange lock

4шт.

22

109595C1

DOOR SEAL

door LH

1шт.

22

109596C1

DOOR SEAL

door RH

1шт.

23

111409C1

HOUSING

inner lock RH

1шт.

24

111410C1

BUTTON

inner lock RH

1шт.

25

109573C1

ROD

inner lock RH

1шт.

26

428497C1

REINFORCEMENT

rod end

2шт.

27114R1

SCREW

10-24 x 1/2 phc cr-rec cst ov-hd mach

8шт.

27

143349C2

DOOR

ASSY, cab RH side, Replaces 109510C3 by also furnishing hinges 109522C2 and 111341C2

1шт.

142065

PLUG, 9/32 hole button, tractors w/o deluxe cab trim att.

4шт.

Выбрано товаров: 53
