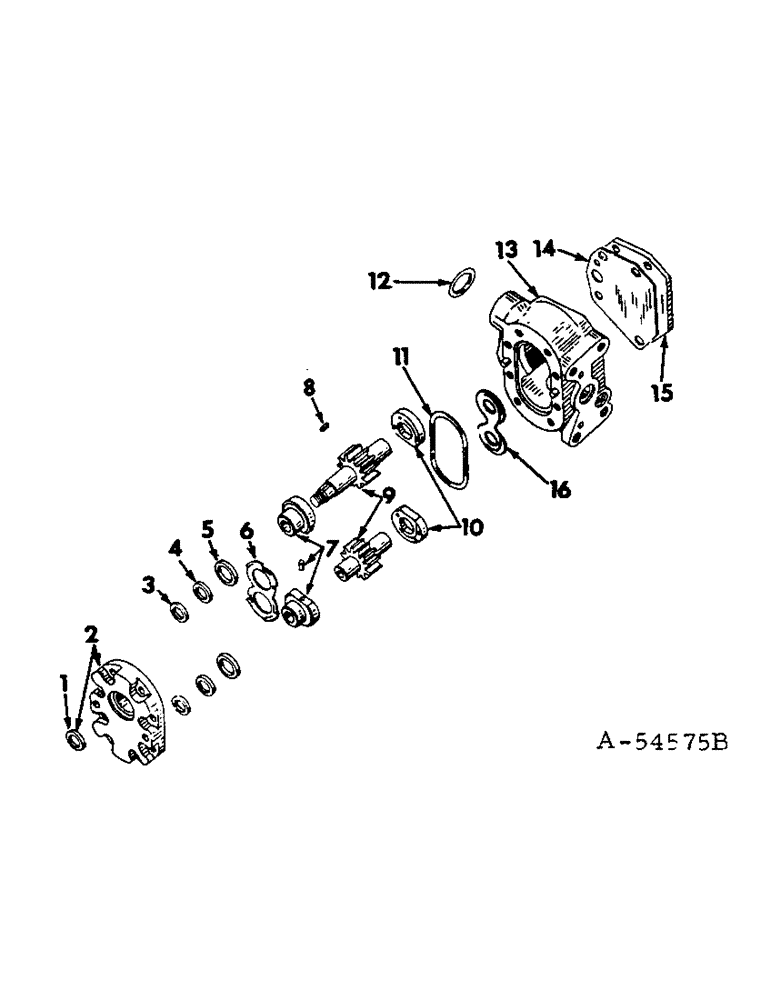

Запчасти Case IH 1568 (10-06) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON 12 GPM AND 15 GPM, THOMPSON PROD. INC. (07) - HYDRAULICS

70194C91

PUMP

ASSY, hydraulic, 12 gpm, Optional w/70933C91

1шт.

70195C91

PUMP

ASSY, hydraulic, 15 gpm, Optional w/70932C91

1шт.

1949300C1

REMAN-HYD PUMP

Reman for New PN 70195C91

1шт.

1949301C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

373157R91

OIL SEAL

SEAL, pump shaft oil

1шт.

2

COVER ASSY, pump, not serviced separately order pump assembly

1шт.

306354R2

12 PT SCREW

3/8-16 x 7/8 12 point cap

7шт.

528109R1

SCREW, 3/8-16 x 5/8 12 point cap

1шт.

3

WASHER, back-up, not serviced separately order package 371549R94

2шт.

4

O-RING, pressure bearing, not serviced separately order package, 371549R94

2шт.

5

374543R1

RETAINER

pressure bearing o-ring

2шт.

6

371530R1

SPRING

pressure plate

1шт.

7

PACKAGE, pressure bearing, not serviced separately order pump assembly

1шт.

8

370942R1

KEY

5/32 x 13/32 sq parallel

1шт.

9

PACKAGE, drive and driven gear, not serviced separately order pump assembly

1шт.

10

PACKAGE, body bearing, not serviced separately order pump assembly

1шт.

19501R1

SCREW, 6-32 x 1 hex-soc-hd cap

6шт.

11

O-RING, pump cover, not serviced separately order package 371549R94

1шт.

12

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, suction port

1шт.

13

BODY W/BEARING, pump, not serviced separately order pump assembly

1шт.

14

GASKET, implement pump rear cover, not serviced separately order package, 371549R94

1шт.

15

371532R1

COVER, implement pump rear, Used only w/pump 70194C91

1шт.

16

528110R1

LARGE PLATE

PLATE, body wear, .10 thick, also furnish package 371549R94

1шт.

371549R94

PACKAGE

hydraulic pump o-ring and gasket service, Consists of

1шт.

371547R1

GASKET (NSS)

1шт.

373157R91

OIL SEAL

OIL SEAL

1шт.

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

(NSS)

1шт.

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

1шт.

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

(NSS)

2шт.

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

1шт.

371548R1

WASHER (NSS)

2шт.

374541R1

WASHER (NSS)

2шт.
