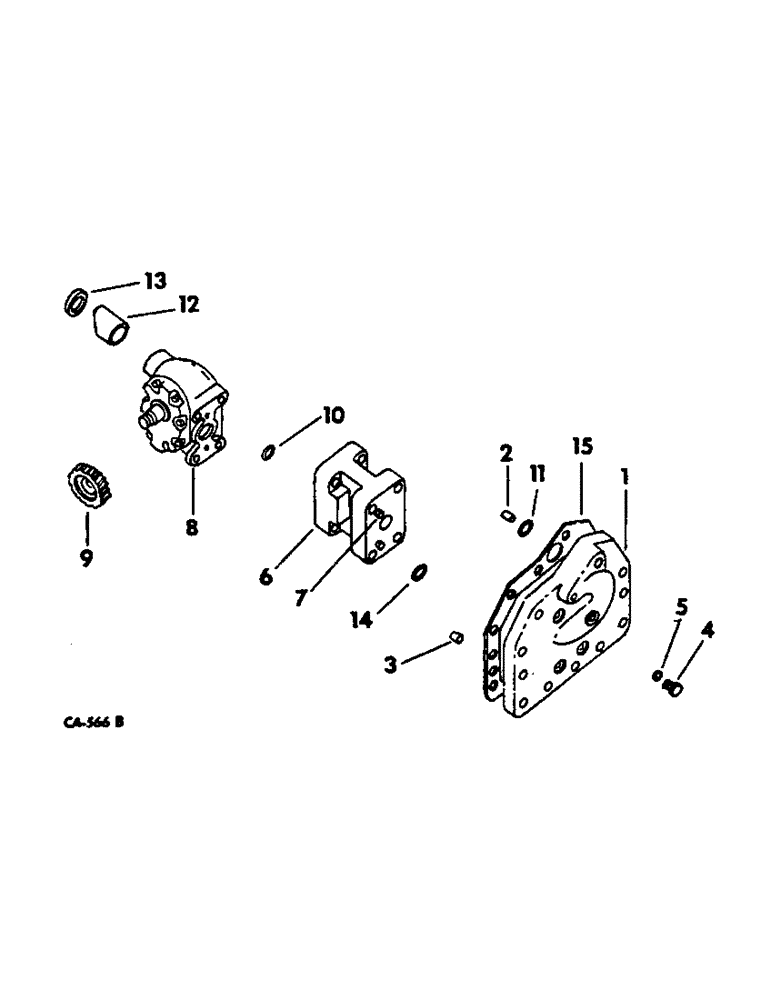

Запчасти Case IH 1568 (10-02) - HYDRAULICS, HYDRAULIC POWER SUPPLY IN REAR FRAME (07) - HYDRAULICS

1

537166R11

FLANGE

ASSY, pump mounting, Includes ref nos 2 & 3

1шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

10шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

2

20031R1

DOWEL,3/8" x 5/8"

PIN, 3/8 x 5/8 dowel

2шт.

3

19954R1

DOWEL,5/16" x 5/8"

PIN, 5/16 x 5/8 dowel

2шт.

4

9410358

PLUG

9/16-18 C-Z hyd str thd o-ring boss, pump mounting flange

1шт.

5

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, pump mounting flange plug

1шт.

6

382753R11

SPACER

ASSY, hyd pump

1шт.

7

384116R1

PIN

hydraulic pump spacer

2шт.

8

70194C91

PUMP

ASSY, hydraulic gear, 12 GPM, Thompson Prod. Inc., Optional w/70933C91

1шт.

8

70933C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, 12 GPM, Cessna, Optional w/70194C91, For components see list of parts under details of hydraulic pump

1шт.

8

1949296C1

REMAN-HYD PUMP

1566, 1568, Both INTERNATIONAL DIESEL TRACTOR, PUMP ASSY (1/75-12/78)

1шт.

8

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

70195C91

PUMP

ASSY, hyd gear, 15 GPM, Thompson Prod. Inc., Optional 2/70932C91

1шт.

8

1949300C1

REMAN-HYD PUMP

Reman for New PN 70195C91

1шт.

8

1949301C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

8

70932C91

PUMP

ASSY, hyd gear, 15 GPM, Cessna, Optional w/70195C91, tractors w/hi-capacity power supply attachment, For components see list of parts under details of hydraulic pump

1шт.

8

1949300C1

REMAN-HYD PUMP

1566, 1568, Both INTERNATIONAL DIESEL TRACTOR, ASSY, hyd gear, 15 GPM, CESSNA 12 GPM AND 15 GPM, w/hi-capacity power supply attachment, HYD POWER IN REAR FRAME (1/75-12/78)

1шт.

8

1949301C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

52999D

WASHER

GASKET, pump mounting bolt

4шт.

16252R1

SCREW, 7/16-14 x 4-3/4 hex-hd cap Hex, 7/16"-14 x 4 3/4", G5

4шт.

9

133404C1

GEAR

hyd pump drive 23 T, Replaces 382754R2

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-18 nylon insert

1шт.

10

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

13/16 x 1-1/16 x 1/8, pump pressure port large

1шт.

11

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, pump mtg flange to rear frame

1шт.

12

382755R2

TUBE,13.75 mm OD, 58.62 mm Length

pump suction

1шт.

13

537545R92

SEAL

pump suction tube oil

1шт.

14

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32, pump mounting flange to spacer

1шт.

15

382244R2

GASKET

pump mounting flange

1шт.
