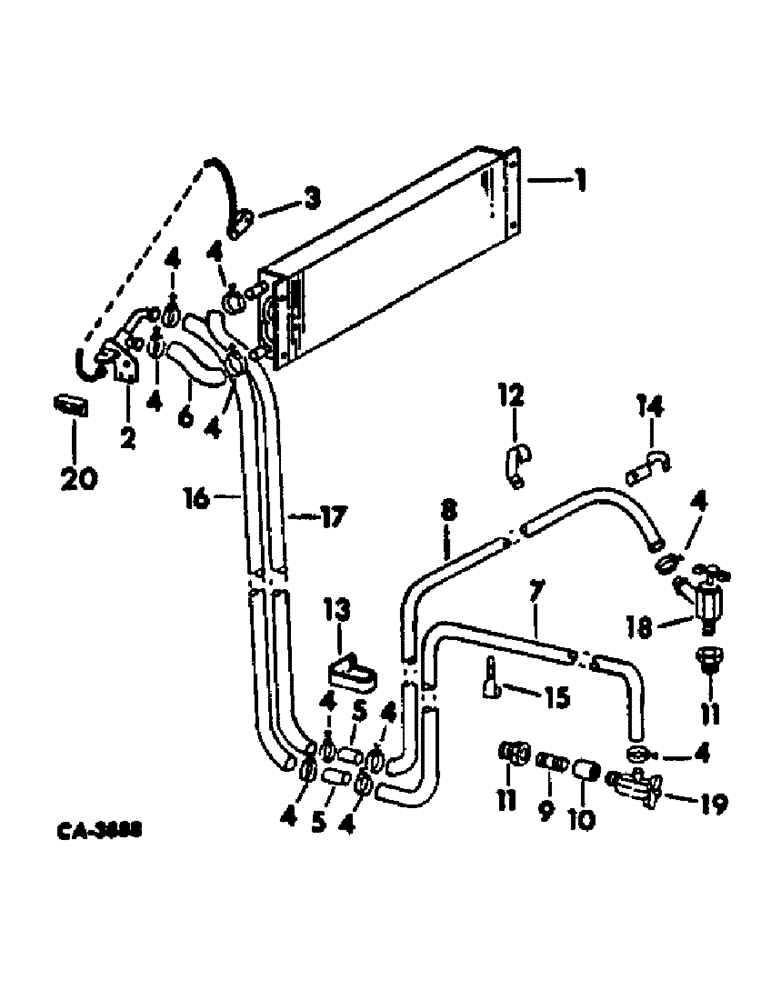

Запчасти Case IH 1568 (13-29) - SUPERSTRUCTURE, HEATER AND CONNECTIONS, 1568 TRACTORS (05) - SUPERSTRUCTURE

1

539056R2

NO LONGER SERVICED

CORE, heater

1шт.

2

539057R1

VALVE

heater control

1шт.

3

539058R1

CABLE

heater valve control

1шт.

539808R1

KNOB

W/SCREW, 446887, heater control

1шт.

446887

SET SCREW,Hex Soc, #8-32 x 1/8"

10-32 x 1/8 soc-cup-pt set

1шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose

10шт.

5

80438R1

SPACER,3/8" Pipe x 3"

SPLICER, heater hose connector, 3/8 x 3 std pipe

2шт.

6

HOSE, valve to heater inlet, Use 12 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

7

HOSE, heater inlet, Use 64 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

8

HOSE, heater outlet, Use 84 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

9

121207

PIPE,Nipple, 3/8" NPT x 1"

NIPPLE, 3/8 closed pipe

1шт.

10

120755

COUPLING,3/8" NPT

3/8 znp pipe

1шт.

11

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe

2шт.

12

391180R1

CLIP

single heater hose, rear LH side engine

1шт.

180116

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

SCREW, 3/8-16 x 1/2 znd hex-hd cap

1шт.

13

537064R1

CLIP, 90 deg double heater hose

1шт.

14

539747R1

CLIP, heater hose, front LH side engine

1шт.

15

539748R1

CLIP, 90 deg heater hose, twisted

1шт.

16

HOSE, hot water inlet, Use 88 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

17

HOSE, cold water return, Use 84 in of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

18

941980R91

LOCK VALVE

VALVE ASSY, heater outlet shut-off

1шт.

19

301803R91

VALVE

ASSY, heater inlet shut-off

1шт.

20

539807R1

BRACKET ASSY, heater valve mtg

1шт.
