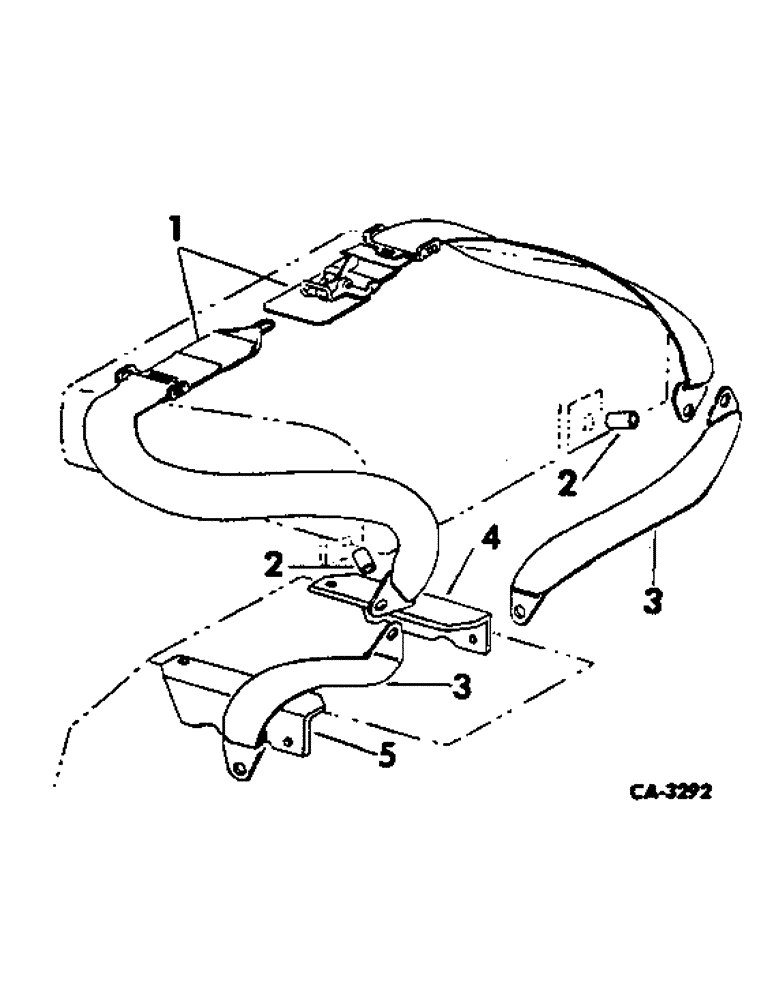

Запчасти Case IH 1568 (13-16) - SUPERSTRUCTURE, SEAT BELT ATTACHMENT, 3 INCHES (05) - SUPERSTRUCTURE

70884C91

PARTS ACCESSORY, seat belt, 3 inch, tractors w/deluxe cab or four post protective frame and vertical acting seat, Consists of ref. no. 1 through 5 and hardware

1шт.

70885C91

PARTS ACCESSORY, seat belt, 3 inch, tractors w/deluxe cab or four post protective frame and hyd seat, Consists of seat belt and attaching hardware

1шт.

1

702248C3

BELT

SAFETY BELT, 3"

1шт.

413-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

SCREW, 7/16-14 x 2-1/4 znd hex-hd cap, 2 for vertical acting seat

1шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 prevailing torque, vertical acting seat

4шт.

404911C1

BOLT

seat belt anchor, hydraulic seat

2шт.

23043R1

WASHER

15/32 x 2 x 11 ga, hydraulic seat

2шт.

425-157

JAM NUT,Jam, 7/16"-20, G5

Hydraulic seat Jam, 7/16"-20, G5

2шт.

344096C3

BOLT

BOLT, seat belt anchor, hydraulic seat

2шт.

24513R1

NUT,7/16"-20, G8

7/16-20 hex. type 8, hydraulic seat

2шт.

2

401077R1

BUSHING

SPACER, seat belt mounting

2шт.

3

67677C1

BELT

ASSY, seat retainer

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 prevailing torque

2шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, 7/16-14 x 1 znd hex-hd cap

2шт.

4

67675C1

BRACKET, seat belt anchor, LH

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

67676C1

PLATE

BRACKET, seat belt anchor, RH

1шт.

180176

SCREW,Hex, 1/2" - 13 x 1 3/8", Gr 5

1/2-13 x 1-3/8 znd hex-hd cap

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
