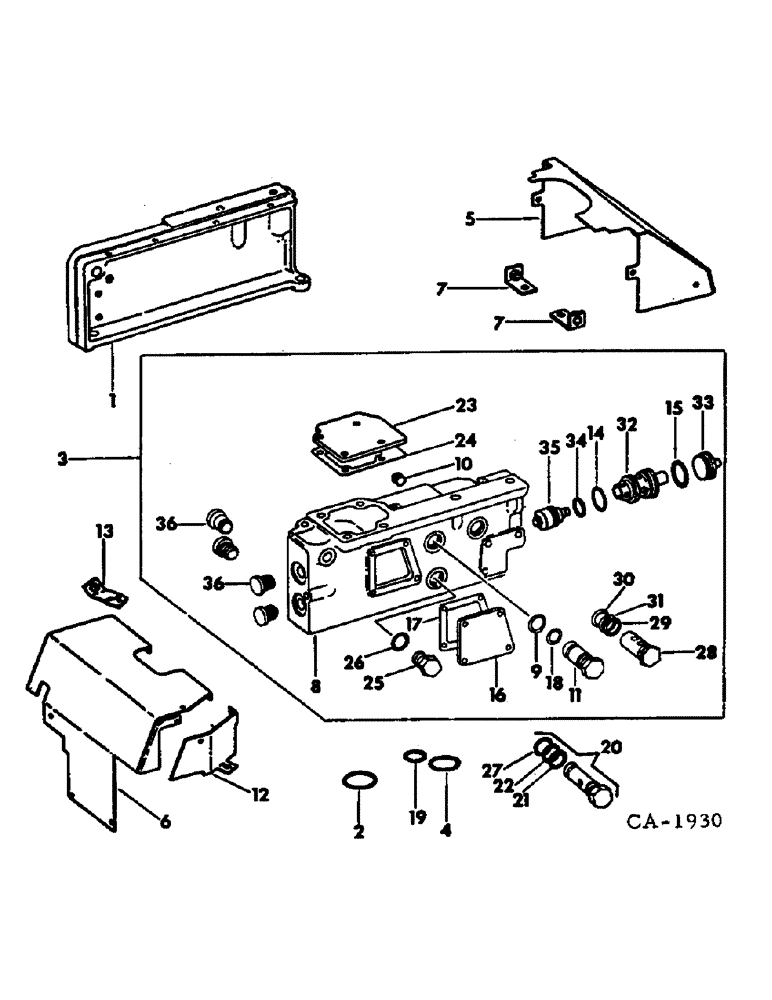

Запчасти Case IH 1568 (13-10) - SUPERSTRUCTURE, SEAT AND HYDRAULIC COMPONENT SUPPORT (05) - SUPERSTRUCTURE

1

382912R3

RING

SUPPORT ASSY, LH seat

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32

1шт.

3

69941C92

SUPPORT ASSY, RH seat, tractors with draft control & auxiliary valves, composed of ref nos 8 through 11, 14 through 18, 25, 26, 28 through 32, 34 and 35

1шт.

3

69942C91

SUPPORT ASSY, RH seat, tractors with auxiliary valves only, composed of ref nos 8, 10, 15, 16, 17, 23 through 26, 28 through 31 and 33

1шт.

4

386867R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 6, 90 Duro

1-1/8 x 1-5/16 x 3/32, hydraulic component housing, tractors w/draft control

1шт.

5

398013R3

SUPPORT

COVER ASSY, seat support front

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-hex. washer hd cap

6шт.

6

398015R2

COVER, seat support rear

1шт.

369917R1

SCREW,Hex Wshr Hd, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z hex. washer hd cap

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-hex. washer hd cap

1шт.

7

383176R11

CLIP ASSY, seat support front cover mounting

2шт.

179813

BOLT,Hex, 5/16" - 18 x 9/16", Gr 5

2шт.

8

399609R41

SUPPORT ASSY.

SUPPORT W/PLUG, 444660, RH seat, tractors with draft control and auxiliary valves

1шт.

8

399608R41

SUPPORT W/PLUG, 444660 RH seat, tractors w/auxiliary valves only

1шт.

9

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16, plug inner, tractors w/draft control

1шт.

10

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto. sq-soc pipe

2шт.

11

530444R1

PLUG, sequenced lift, tractors w/draft control

1шт.

12

398104R1

PLATE, RH seat support cover, tractors without draft control

1шт.

127976

SHAFT

SCREW, 12-11 x 1/2 C-Z slt pan hd tap.

2шт.

13

398102R1

BRACKET, rear cover mounting

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

391923R1

O-RING,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

1-5/16 x 1-1/2 x 3/32, carrier inner, Used on tractors with draft control

1шт.

15

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-3/8 x 1-3/16 x 3/32, carrier outer

1шт.

16

382790R1

PLATE, access hole

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

17

382791R1

GASKET

access hole plate

1шт.

18

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, plug outer, tractors w/draft control

1шт.

19

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32

1шт.

20

530451R91

SCREW

PARTS ACCESSORY, simultaneous raise, to permit simultaneous raising of hitch and operating implement assist wheels

1шт.

21

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32

1шт.

22

383024R1

O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro

11/16 x 13/16 x 1/16

1шт.

23

382918R1

COVER, hyd quadrant support opening, Not used on tractors with draft control

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

24

382793R1

GASKET

quadrant support opening cover, Not used on tractors with draft control

1шт.

25

9410360

PLUG

7/8-14 C-Z str-thd-o-ring boss

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32, check valve port plug

1шт.

27

392385R1

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

-016, 90 Duro, .614" ID x .070" Thk

1шт.

28

543976R91

VALVE

ASY, relief, For components, see list of parts under details of pilot relief valve, group 10

1шт.

29

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 x 3/32, relief valve inner

1шт.

30

362796R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, relief valve inner

1шт.

31

378985R2

BACK-UP RING

relief valve inner o-ring back-up

1шт.

32

391920R91

SEAT

ASSY, unloading valve, Used on tractors with draft control

1шт.

33

391922R1

PLUG

regulator port, Used on tractors with auxiliary valves

1шт.

34

406181R1

O-RING,21.82mm ID x 3.53mm Width

unloading valve piston, s-treated, Used on tractors with draft control

1шт.

35

376762R11

PISTON ASSY.

PISTON ASSY, unloading valve, Used on tractors with draft control

1шт.

36

1017989R1

PLUG

7/8-14 self aligning

4шт.
