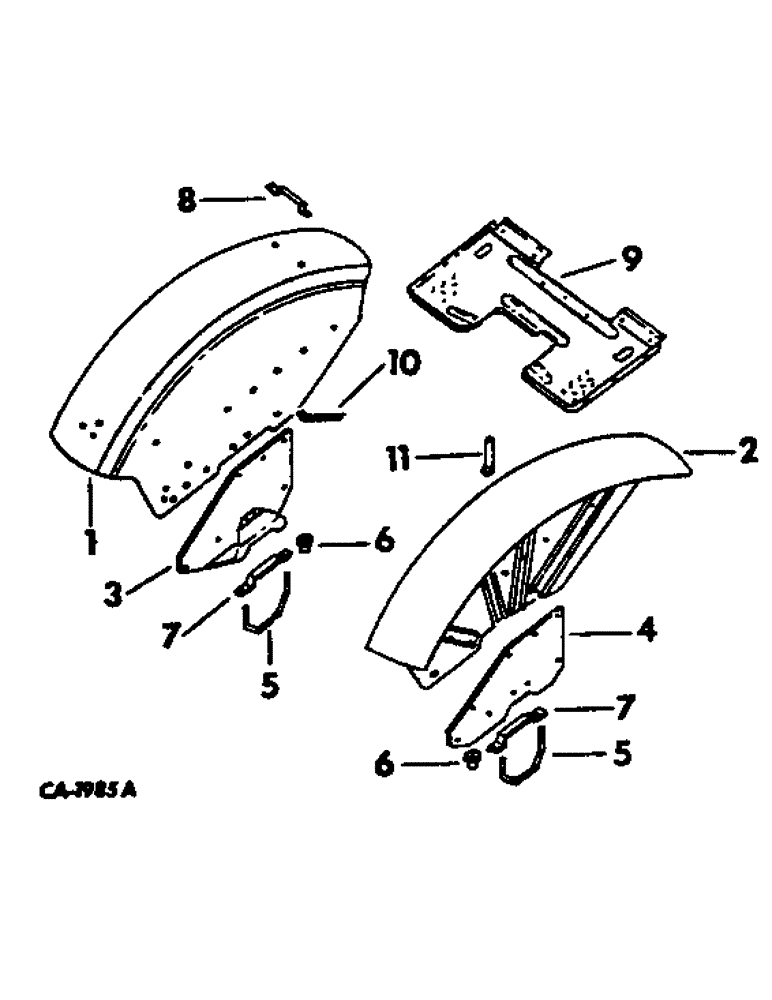

Запчасти Case IH 1568 (13-08) - SUPERSTRUCTURE, WIDE COVERAGE FENDERS (05) - SUPERSTRUCTURE

1

537660R1

FENDER ASSY, LH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

7шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

1

66680C1

FENDER ASSY, LH, tractors w/four post protective frame

1шт.

66687C1

SPACER, fender, 1-1/2 in. hollow bar x 18.70 in. long

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

6шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

2

537661R1

FENDER ASSY, RH

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

7шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

2

66681C1

FENDER ASSY, RH, tractors w/four post protective frame

1шт.

66687C1

SPACER, fender, 1-1/2 in. hollow bar x 18.70 in. long

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

SCREW, 3/8-16 x 2 znd hex-hd cap

2шт.

113-257

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

SCREW, 3/8-16 x 2-1/2 znd hex-hd cap

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 znd hex-hd cap

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

6шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

3

67817C91

SUPPORT ASSY, LH

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 znd hex-hd cap

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

67818C91

SUPPORT ASSY, RH

1шт.

189295

BOLT,Hex, 3/8" - 16 x 4 1/2", Gr 5

SCREW, 3/8-16 x 4-1/2 znd hex-hd cap

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

5

536836R1

U-BOLT, fender mounting

2шт.

12000R1

WASHER

17/32 x 1-3/4 x .90

4шт.

102637

NUT,1/2"-13, G5

4шт.

6

536671R1

RUBBER INSULATOR

BUSHING, fender isomount

4шт.

7

536837R1

SUPPORT, fender mount lower

2шт.

8

381050R1

HANDLE, fender

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8-16 x 7/8 znd hex-hd cap

2шт.

446212

WASHER,7/16" x 7/8" x .083"

7/16 x 7/8 x .065 C-Z

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

9

534487R2

PLATFORM, rear frame

1шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 znd hex-hd cap

2шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 znd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

8шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

4шт.

10

384332R1

BRACKET, fender support LH

1шт.

25847D

SPACER,1/2" X-Strng Pipe x 11/16"

fender support, 1/2 x 11/16

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 znd hex-hd cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

11

384333R1

BRACKET, fender support RH

1шт.

25847D

SPACER,1/2" X-Strng Pipe x 11/16"

fender support, 1/2 x 11/16

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

1шт.

180127

SCREW,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8-16 x 1-5/8 znd hex-hd cap

1шт.

20803R1

WASHER

13/32 x 1 x 11 ga C-Z

1шт.

66686C1

PLATE, fender support, tractors w/four post protective frame

2шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

10шт.

20803R1

WASHER

13/32 x 1 x .105 znd

10шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051

10шт.
