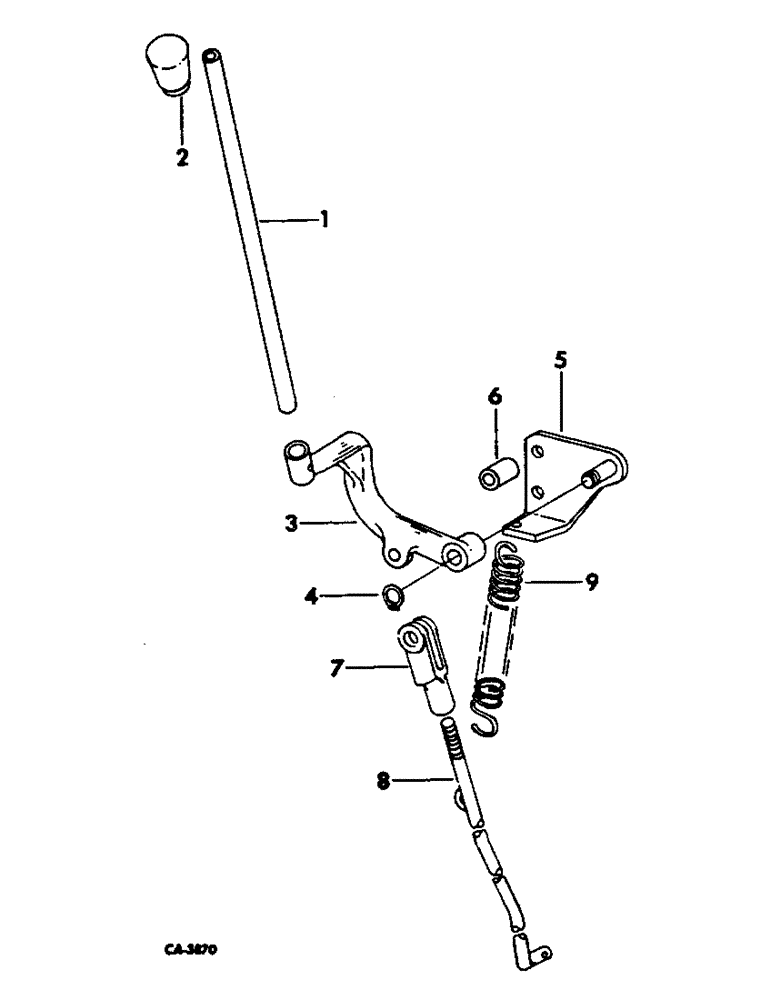

Запчасти Case IH 1568 (07-28) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF CONTROL (04) - Drive Train

1

68125C1

LEVER, extension

1шт.

443023

GROOVED PIN,3/16" x 1", Type F

Pin, Grooved, 3/16" x 1", Type F

1шт.

2

389168R1

KNOB

aux valve control handle

1шт.

3

68126C1

LEVER, IPTO

1шт.

118777

WASHER

.531 x 1.062 x .074 phc

1шт.

4

22824R1

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

1шт.

5

68127C1

PLATE

ASSY, IPTO support

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

6

364811R1

SPACER,10.7mm ID x 17.14mm OD x 27mm L

.675 x .423 x 1.062

1шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

7

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8-24 adj rod end

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

114494

NUT,Jam, 3/8"-24, G5

1шт.

8

68130C1

ROD ASSY, IPTO actuating

1шт.

Q1597

WASHER

3/8 x 3/4 x 16 ga plain

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

9

68132C1

SPRING

IPTO linkage balance

1шт.
