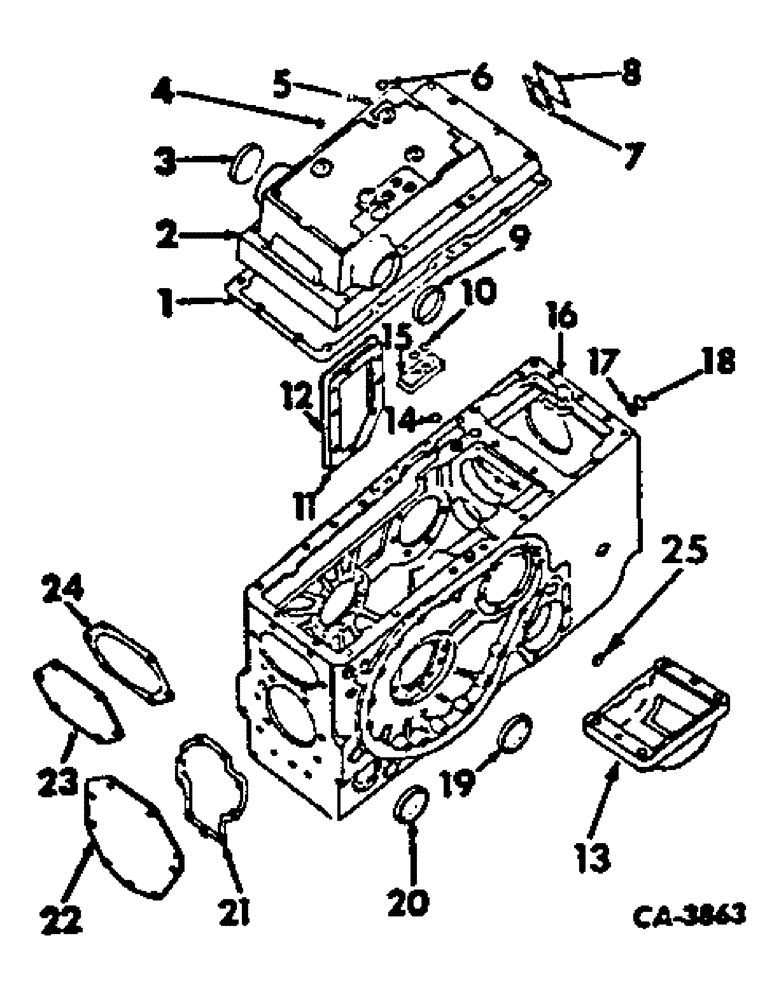

Запчасти Case IH 1568 (07-10) - DRIVE TRAIN, REAR FRAME, COVER AND CONNECTIONS (04) - Drive Train

1

380264R2

GASKET

rear frame cover

1шт.

2

398352R21

COVER

ASSY, rear frame

1шт.

2

398353R91

COVER ASSY, rear frame, tractors w/draft control

1шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 NPTF sq-soc pipe

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

SCREW, 5/8-11 x 3-7/8 hex-hd cap

16шт.

3

380174R1

PLUG,Cup, 3.510"

Rockshaft opening LH Cup, 3.510"

1шт.

4

380263R1

PLUG

eccentric shaft and mounting bolt openings cup

5шт.

5

381884R1

O-RING,0.103" Thk x 0.987" ID, -120, Cl 6, 90 Duro

1 x 1-3/16 x 3/32 cover to seat support, small

2шт.

6

384377R1

O-RING,0.103" Thk x 2.55" ID, -141, Cl 6, 90 Duro

2-5/16 x 2-1/2 x 3/32 cover to seat support, large

1шт.

7

382416R1

GASKET

valve adj opening cover, tractors without draft control

1шт.

8

382415R1

COVER

valve adj opening, tractors without draft control

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

4шт.

9

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH Cup, 3.762"

1шт.

10

387926R2

RING

seal, draft control port cover

2шт.

11

385757R1

GASKET

drive attachment opening cover

1шт.

12

380330R3

COVER

drive attachment opening

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

13

108508C1

SUPPORT

ASSY, swinging drawbar pivot

1шт.

13

67823C1

SUPPORT ASSY, swinging drawbar pivot, tractors w/heavy duty swinging drawbar

1шт.

271562

SHIELD,Hex, 5/8" - 11 x 2", Gr 5

SCREW, 5/8-11 x 2 hex-hd cap

4шт.

14

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL, rear frame pressure port oil

1шт.

15

382758R1

COVER

draft control port, tractors without draft control

1шт.

393207R1

SCREW, 3/8-16 x 1-1/2 flanged 12 pt.

4шт.

NLS

NO LONGER SERVICED

2шт.

16

68517C92

SPACER

FRAME ASSY, rear, Composed of

1шт.

NSS

NOT SOLD SEPARAT

FRAME W/TUBES

1шт.

537545R92

SEAL

OIL SEAL

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

PIN

4шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN

2шт.

172558

PLUG,Exp, 1 1/4"

1шт.

172574

PLUG,Exp, 1 1/2"

1шт.

383331R1

PLUG,Cup, 4.26"

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG

2шт.

444691

PLUG

1шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN, 1/2 x 1-1/4 dowel, clutch housing

1шт.

19968R1

DOWEL,3/4" x 1 3/4"

PIN, 3/4 x 1-1/4 dowel, rear axle carrier

4шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2-1/4 dowel, cover

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto, sq-soc pipe

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 auto, sq-soc pipe, Optional w/9409949

1шт.

217-469

DRAIN PLUG,Sq Soc, 3/4" - 14 NPTF

PLUG, 3/4-14 auto, sq-soc pipe, Optional w/9409948

1шт.

444691

PLUG

1/4-18 auto sq-soc pipe

1шт.

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion

1шт.

17

380271R1

RETAINER

sealing ring

1шт.

18

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8, clutch housing suction tube

1шт.

19

NOT USED IN THIS APPLICATION

1шт.

20

383331R1

PLUG,Cup, 4.26"

torsion bar cup, tractors w/o draft control

2шт.

21

381467R1

GASKET

independent PTO opening cover

1шт.

22

380272R1

COVER

independent PTO opening

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 hex-hd cap

9шт.

23

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

6шт.

24

383330R1

GASKET

draft control adj opening cover

1шт.

25

172574

PLUG,Exp, 1 1/2"

1-1/2 expansion, pump suction port, tractors without power supply

1шт.
