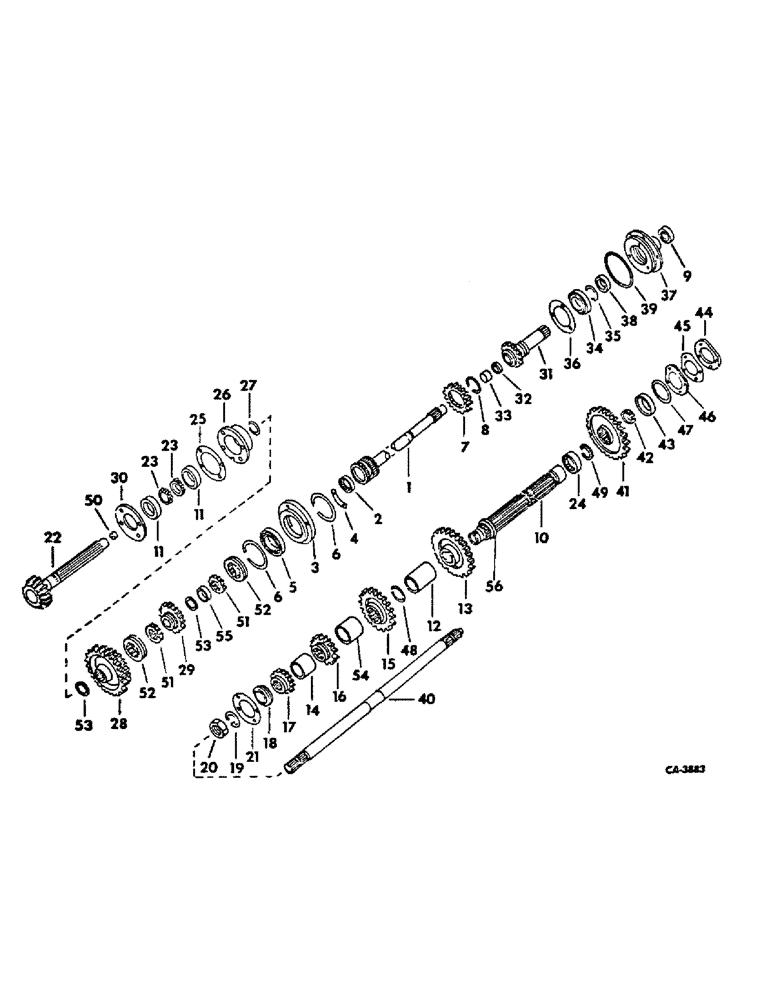

Запчасти Case IH 1568 (07-08) - DRIVE TRAIN, SPEED TRANSMISSION IN CLUTCH HOUSING (04) - Drive Train

1

68040C1

SHAFT

transmission drive

1шт.

2

56095R91

NEEDLE BEARING,Needle, 38.07mm ID x 47.64mm OD x 31.75mm W

BEARING, main shaft front

1шт.

3

68041C1

CAGE

constant mesh drive gear brg

1шт.

4

380081R1

PLATE

constant mesh drive gear brg cage lock

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

5

ST697

BALL BEARING,75 mm ID x 130 mm OD x 22 mm

BEARING, constant mesh drive gear

1шт.

6

392683R1

RING

constant mesh drive brg cage int snap

2шт.

7

68042C1

GEAR

constant mesh drive, 28 teeth

1шт.

8

68623C1

RING

constant mesh drive gear ext snap

1шт.

9

524598R91

BALL BEARING,20mm ID x 52mm OD x 15mm W

clutch pilot

1шт.

9

524598R91GV

BEARING

Value, Ball Bearing

1шт.

10

71784C1

BRACKET

COUNTERSHAFT, Replaces 380082R3 and 71127C1 by also ordering spacer, 71147C1

1шт.

11

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

BEARING, main shaft rear cup

2шт.

12

384091R2

BUSHING

SPACER, constant mesh gear, tractors w/torque amplifier

1шт.

13

68142C1

GEAR

TA drive 47 T, tractors w/torque amplifier

1шт.

14

68046C1

SPACER

countershaft rear

1шт.

15

68043C1

GEAR

constant mesh, 45 T

1шт.

16

68045C1

GEAR

2nd speed driving, 41 T

1шт.

17

120774C1

GEAR

1st speed driving, 31 T, Replaces 68047C1

1шт.

Ref. items #17 & 28 must both be replaced when one or the other is required. Please notice the old part #'s (68047C1 & 68052C1) referenced both of the new #'s whenever either one was to be replaced. There was a speed change and the gear tooth shape was changed. by bb 4/29/96

1шт.

18

389379R91

BEARING

countershaft rear, Optional w/539163R91

1шт.

18

539163R91

BEARING ASSY,2.3622" ID x 4.3307" OD x 0.8661"

countershaft rear, Optional w/389379R91

1шт.

19

380091R2

THRUST WASHER,59.51mm ID x 82.55mm OD x 1.52mm Thk

countershaft brg lock nut

1шт.

20

539281R1

NUT

countershaft brg lock

1шт.

21

380093R1

RETAINER

countershaft rear brg

1шт.

NLS

NO LONGER SERVICED

4шт.

22

68048C1

SHAFT

W/PLUG, 68050C1 , main, 25T, tractors w/o torque amplifier

1шт.

22

68141C1

SHAFT

main, tractors w/torque amplifier

1шт.

23

529207R91

BEARING ASSY,54.99mm ID x 29mm W

ASSY, main shaft rear cone

2шт.

24

384114R91

NEEDLE BEARING

countershaft front needle

1шт.

25

380095R1

SHIM

main shaft rear bearing

1шт.

26

529283R2

CAGE

main street rear brg

1шт.

27

380097R1

RING

main shaft rear brg snap

1шт.

28

120775C1

GEAR

1st speed driven, 42 T, Replaces 68052C1

1шт.

Ref. items #17 & 28 must both be replaced when one or the other is required. Please notice the old part #'s (68047C1 & 68052C1) referenced both of the new #'s whenever either one was to be replaced. There was a speed change and the gear tooth shape was changed. by bb 4/29/96

1шт.

29

68055C1

GEAR

2nd speed driven, 31T

1шт.

30

380098R2

RETAINER

main shaft rear bearing

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

4шт.

31

67749C1

SHAFT

IPTO drive

1шт.

32

67790C2

SEAL

drive shaft oil

1шт.

33

69751C1

BUSHING

ASSY, drive shaft

1шт.

34

405185R91

ROLLER BEARING

ASSY, drive shaft

1шт.

ST453

RING

bearing snap

1шт.

35

384337R1

RING

shaft brg retaining

1шт.

36

384184R1

RETAINER

shaft brg

1шт.

321872R1

SCREW

3/8-16 x 3/4 hex-hd nylok

3шт.

37

67753C1

CAGE

drive shaft brg

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8 hex-hd cap

5шт.

38

535209R92

SEAL,49.02mm ID x 66.72mm OD x 7.92mm Thk

shaft brg cage oil

1шт.

39

22419R1

O-RING,0.139" Thk x 7.484" ID, -264, Cl 8, 90 Duro

7-1/2 x 7-3/4 x 1/8 shaft brg cage sealing

1шт.

40

67754C1

SHAFT

IPTO driven

1шт.

41

67756C1

GEAR

IPTO driven, 59 T

1шт.

42

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

ASSY, IPTO shaft frt cone

1шт.

43

376463C1

BEARING CUP

BEARING, IPTO shaft frt cup

1шт.

44

67757C1

RETAINER

driven shaft brg

1шт.

297330R1

BOLT

SCREW, 3/8-16 x 1 hex-hd nylok

4шт.

45

67758C1

SHIM

shaft brg retainer, .028

1шт.

46

67760C1

SHIM

shaft brg retainer, .007

4шт.

47

67761C1

SEAL RETAINER

IPTO front brg retainer

1шт.

48

357035R1

RING

constant mesh gear snap frt, tractors w/o torque amplifier

1шт.

49

67755C1

RING

IPTO driven ring snap

1шт.

50

68050C1

PLUG

rear orifice lp, Used only w/shaft, 68048C1

1шт.

51

68053C1

ADAPTER

shifter collar

2шт.

52

68054C1

SYNCHRONIZER,26T

1st & 2nd gear shifter

2шт.

53

68051C1

THRUST WASHER,54.36mm ID x 63.5mm OD x 3.02mm Thk

driven gear thrust

2шт.

54

68044C1

SPACER

countershaft rear

1шт.

55

69053C1

SPACER

shifter adapter .593

1шт.

55

69054C1

SPACER

shifter adapter .602

1шт.

55

69055C1

SPACER

shifter adapter .611

1шт.

56

71147C1

COUPLING, BREAK AWAY

SPACER, TA driven gear

1шт.

372703R5

FLUID, hy-tran, quart can

1шт.

372704R5

FLUID

hy-tran, gallon can

1шт.

372705R5

FLUID

hy-tran, five gallon can

1шт.

407024R5

FLUID, hy-tran, fifteen gallon can

1шт.
