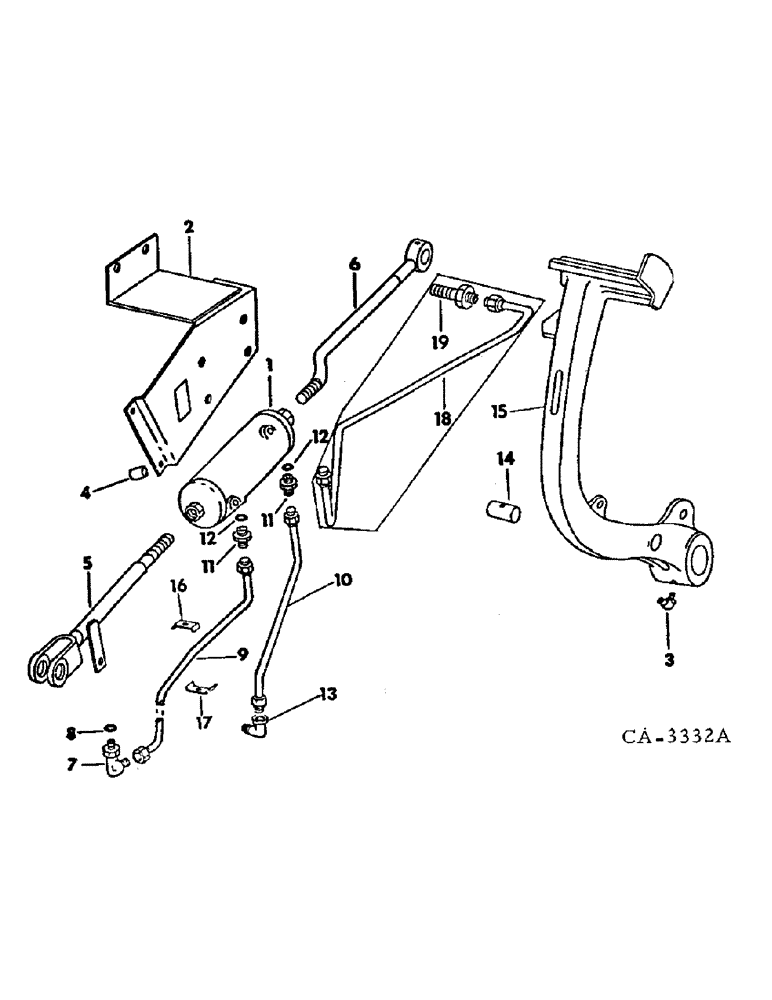

Запчасти Case IH 1568 (07-06) - DRIVE TRAIN, HYDRAULIC POWERED CLUTCH CONTROL (04) - Drive Train

1

57107C91

BRACKET

BOOSTER ASSY, clutch, For components see list of parts under details of clutch booster listing this section

1шт.

2

66560C1

BRACKET

ASSY, booster mounting

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 znd hex-hd cap

4шт.

26580R1

SCREW, 5/16-18 x 4-1/8 phc hex-hd cap type 8

2шт.

97457R1

SPACER,3/8" X-Strng Pipe x 1 9/16"

.423 x .675 x 1.56, tractors w/o torque amplifier

2шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 znd

2шт.

3

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive lub

1шт.

4

383244R1

SPACER

.390 x .750 x 1.12, tractors with torque amplifier

1шт.

5

66565C1

ROD

ASSY, clutch operating front, tractors with torque amplifier

1шт.

5

66563C1

ROD ASSY, clutch operating front, tractors with torque amplifier

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex. jam

1шт.

6

66566C1

ROD

ASSY, clutch operating rear

1шт.

25-158

JAM NUT,Jam, 1/2"-20, G5

1/2-20 hex. jam

1шт.

7

935036R91

ELBOW

9/16-18 37 deg hyd flared tube to 3/4-16 adj str thd pressure tube reducer

1шт.

8

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube

1шт.

9

66568C3

TUBE,9.525 mm OD, 307.59, 214.12 mm Length

ASSY, clutch booster pressure

1шт.

10

70939C1

TUBE

ASSY, clutch booster return, Start Serial: 7183

1шт.

11

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

UNION, 7/16-18 37 deg hyd flared tube short swivel clutch booster tube end

2шт.

12

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, clutch booster tube end

2шт.

13

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

1/4-18 37 deg hyd flared tube pipe thread to 9/16-18 hyd deg flared tube reducer

1шт.

14

382492R2

AXLE PIN,15.77mm OD x 35.56mm L

PIN, clutch operating rod

1шт.

103398

COTTER PIN,5/32" x 1 1/2"

Pin, Split (Cotter), 5/32" x 1 1/2"

1шт.

15

PEDAL, clutch, Refer to clutch controls and transmission brake listing this group

1шт.

16

384891R11

CLAMP

ASSY, clutch booster return

1шт.

17

384891R1

CLAMP

clutch booster return tube

1шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

66570C2

TUBE ASSY.

TUBE ASSY, clutch booster return, Serial Range: -7182

1шт.

19

66569C1

ADAPTER

UNION, 9/16-18 37 deg hyd flared tube short swivel to 1/2-13 long str-thd return tube reducer, Serial Range: -7182

1шт.
