Запчасти Case IH 1568 (07-03) - DRIVE TRAIN, CLUTCH (04) - Drive Train

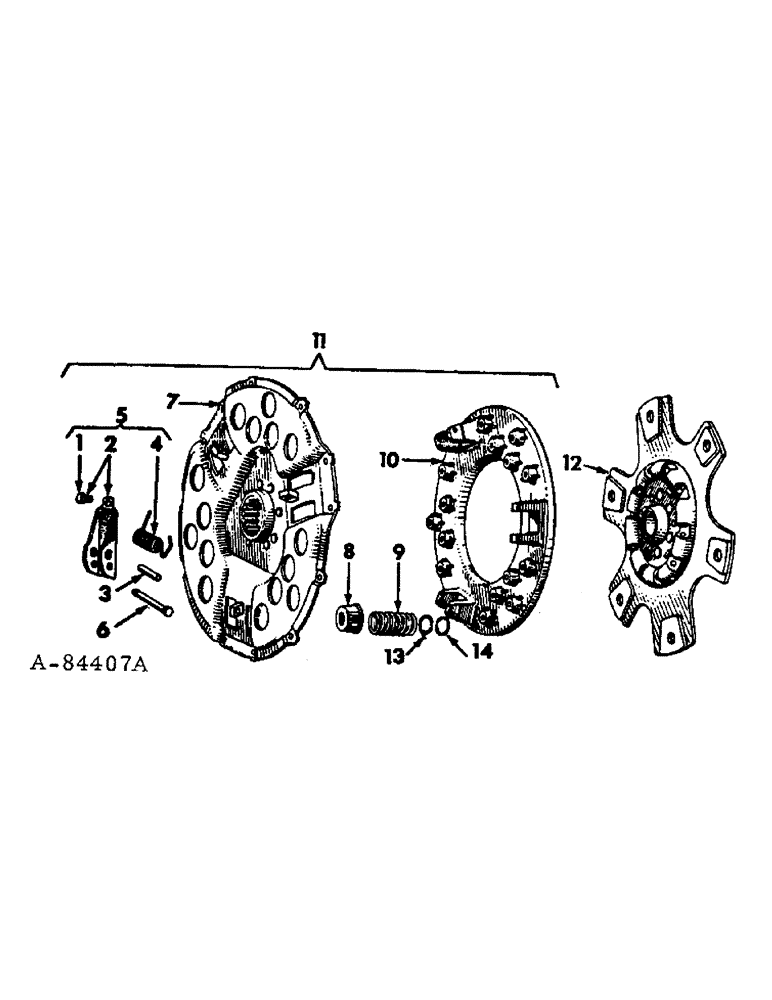

Схема запчастей Case IH 1568 - (07-03) - DRIVE TRAIN, CLUTCH (04) - Drive Train
8
1
13
9
6
11
7
5
12
2
3
4
10
14

Артикул

Название

Примечание

Количество

1

163479R2

SCREW

SCREW, clutch lever adjusting

3шт.

2

390810R92

LEVER

LEVER ASSEMBLY, clutch

3шт.

3

146810R1

AXLE PIN

PIN, lever pivot

3шт.

4

390809R2

SPRING

SPRING, clutch lever

3шт.

5

390808R92

PACKAGE

PACKAGE, clutch lever assembly

1шт.

6

146809R1

PIN

PIN, clutch lever

3шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

3шт.

120394

WASHER,3/8", SAE

WASHER, 11/32 x 13/16 x .065

3шт.

7

69597C1

PLATE

PLATE ASSY, clutch back

1шт.

8

353316R1

SPRING CUP

CUP, clutch pressure

15шт.

9

172062R1

SPRING

SPRING, clutch pressure

15шт.

10

390807R1

PLATE ASSY.

PLATE, clutch pressure

1шт.

11

67735C92

CLUTCH PLATE

PLATE ASSY, clutch pressure

1шт.

11

67735C92R

REMAN-CLUTCH PLATE

Remanufactured, Clutch Plate, 14 in, 18 Tooth Hub

1шт.

11

67735C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, 3/8-16 x 7/8 hex-hd cap

12шт.

12

67736C1

DISC

DISC ASSY, clutch driven, Dyna Life

1шт.

12

142200C2R

REMAN-CLUTCH DISC

1566, 1568, Reman For New P/N 67736C1

1шт.

12

142200C2C

CORE-CLUTCH DISC

Return Part Number

1шт.

13

311291C1

INSULATING WASHER

WASHER, insulating

15шт.

14

311292C1

WASHER

RETAINER, washer

15шт.

Выбрано товаров: 21
