Запчасти Case IH 1568 (07-02) - DRIVE TRAIN, CLUTCH HOUSING AND COVERS (04) - Drive Train

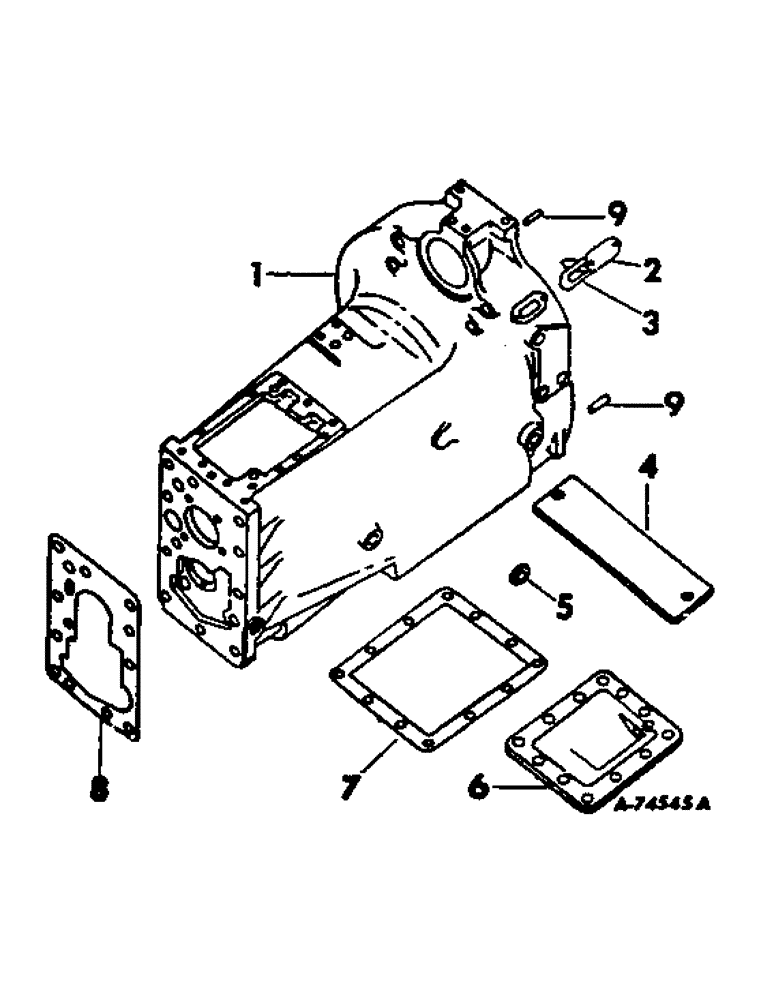

Схема запчастей Case IH 1568 - (07-02) - DRIVE TRAIN, CLUTCH HOUSING AND COVERS (04) - Drive Train
3
4
9
5
6
1
7
2
9
8

Артикул

Название

Примечание

Количество

1

71831C91

HOUSING

ASSY, clutch, Consists of

1шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

1017956R1

PLUG,Cap, .610" OD

1шт.

120027C1

POINTER

1шт.

1017957R1

PLUG

1шт.

1017954R1

PLUG,Cap, .485" OD

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG

1шт.

381611R1

SEAT

1шт.

NSS

NOT SOLD SEPARAT

TUBE, suction

1шт.

NSS

NOT SOLD SEPARAT

TUBE, diff. lub

1шт.

NSS

NOT SOLD SEPARAT

TUBE, spray lub

1шт.

NSS

NOT SOLD SEPARAT

TUBE, power steering pressure

1шт.

NSS

NOT SOLD SEPARAT

TUBE, power steering return

1шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG, 1/2-14 auto sq-soc-hd pipe

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/12-13 x 3 hex-hd cap, 1566 tractors

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1568 tractors Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

570879R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

SCREW, 5/8-11 x 2-1/4 hex-hd cap type 8

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25711R1

WASHER

.656 x 1.312 x .150 hdn

8шт.

1017956R1

PLUG,Cap, .610" OD

Plastic closure, optional with 104940 Cap, .610" OD

4шт.

104940

PLUG

CORK, 5/8 x 13/16 long #4 taper, Optional with 1017956R1

4шт.

1017957R1

PLUG

plastic closure, Optional with 104942

1шт.

NLS

NO LONGER SERVICED

CORK, 3/4 x 15/16 long #6 tape, Optional with 1017957R1

1шт.

1017954R1

PLUG,Cap, .485" OD

plastic closure

2шт.

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/8-18 auto sq-soc-hd pipe

1шт.

2

104402C1

COVER

engine timing opening

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

120027C1

POINTER

engine timing, Replaces 380072R1

1шт.

4

380068R1

BAR

COVER, clutch compartment

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

381611R1

SEAT

valve

1шт.

6

384077R1

COVER W/PLUG, clutch housing bottom

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

12шт.

103735

HOUSING

PIN, 1/4 x 1/2 chamfered straight

1шт.

9409947

DRAIN PLUG,Sq Soc, 3/4"-14 NPTF

PLUG, 3/4-14 auto, sq-soc pipe

1шт.

7

384078R1

GASKET

clutch housing bottom cover

1шт.

8

92613C91

GASKET

clutch housing

1шт.

8

380067R4

GASKET

S-5045 the metal gasket should NOT be used every time. \nbut only in severe applications where leakage is a problem.

1шт.

9

375362R1

PIN,12.69mm OD x 34.8mm L

- rear engine support dowel, 1568 tractors

1шт.

Выбрано товаров: 40
