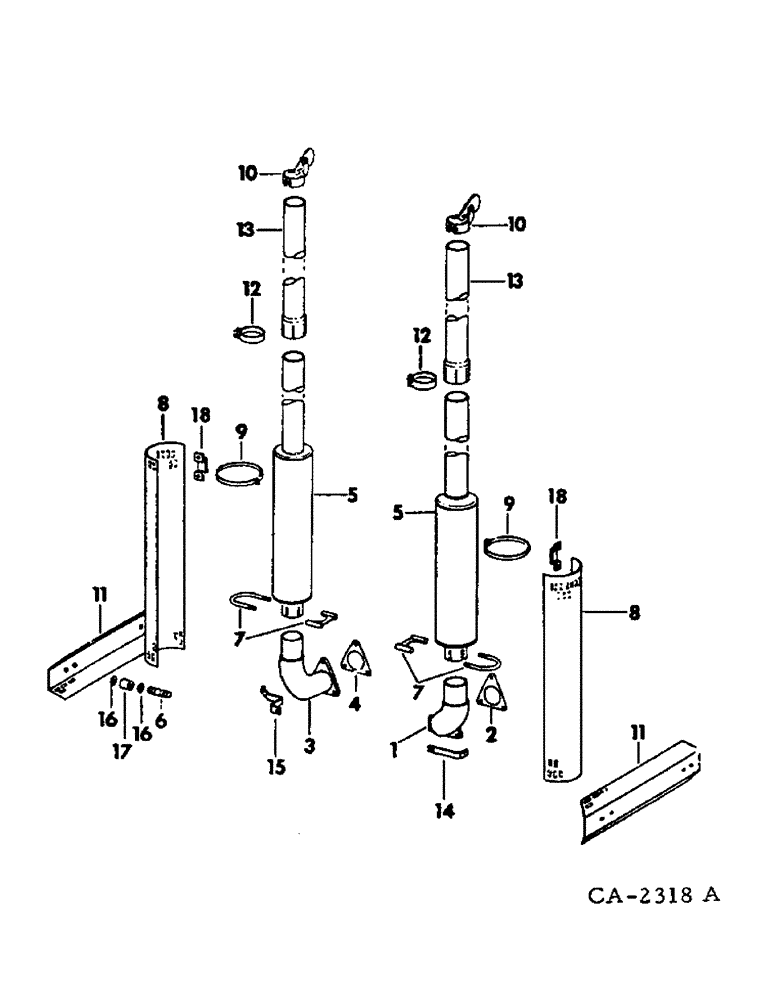

Запчасти Case IH 1568 (12-14) - POWER, EXHAUST SYSTEM, 1568 TRACTORS Power

1

538143R1

ELBOW

LH exhaust

1шт.

69573C1

WASHER, .469 x 1.0 x .105 stainless

1шт.

279098R1

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

2

428099C1

MANIFOLD GASKET

LH exhaust elbow

1шт.

3

538144R1

ELBOW

RH exhaust

1шт.

496-21047

WASHER

15/32 x 59/64 x .060

3шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

SCREW, 7/16-14 x 1-1/4 hex-hd cap

3шт.

4

426289C1

GASKET

RH exhaust

1шт.

5

538148R2

MUFFLER

exhaust

2шт.

5

70769C1

MUFFLER, spark arrester, California, state requirement

2шт.

405806R1

SLEEVE

spark arrester inlet

2шт.

6

539992R1

STUD, exhaust manifold heat shield

4шт.

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-24 hex. lock

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .06 znd

4шт.

7

68217C91

CLAMP

PACKAGE, muffler clamp assembly service, Consists of

2шт.

538149R1

SADDLE

CLAMP (NSS)

1шт.

535993R1

NUT

1шт.

538150R1

BOLT

U-BOLT (NSS)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

535993R1

NUT

clamp

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

68219C91

KIT

PACKAGE, muffler clamp, Used w/spark arrester muffler Consists of

1шт.

535989R1

CLAMP

(NSS)

1шт.

535993R1

NUT

S

2шт.

535992R1

BOLT (SPREADER),3/8" - 16 x 4.8"

U-BOLT (NSS)

1шт.

8

538152R1

SHIELD, muffler heat

2шт.

9

371677R91

HOSE CLAMP,#92, 5.38/6.25 Type F Worm, W/liner

CLAMP, muffler heat shield

2шт.

24768R1

CLAMP, muffler heat shield, Used w/spark arrester muffler

2шт.

10

321575R91

CAP

ASSY, exhaust

2шт.

11

538146R1

SHIELD, exhaust manifold heat

2шт.

12

396910R2

CLAMP

exhaust pipe

2шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

SCREW, 3/8-16 x 1-1/2 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

13

538426R1

PIPE, EXHAUST SYSTEM

PIPE, exhaust extension

2шт.

13

70771C1

PIPE, exhaust extension, Used w/spark arrester muffler

2шт.

14

539998R1

BRACKET, muffler shield LH

1шт.

120376

NUT,5/16"-18, G5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x .054 znd

2шт.

15

539999R1

BRACKET, muffler shield RH

1шт.

120376

NUT,5/16"-18, G5

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16-18 x 5/8 znd hex-hd cap

2шт.

619855R1

WASHER

11/32 x 3/4 x .054 znd

2шт.

16

539991R1

WASHER

heat shield

8шт.

17

345505C1

SPACER, manifold heat shield, 6 used w/spark arrester muffler

4шт.

21535R1

SCREW, 5/16-18 x 1-1/4 cdp hex-hd cap

2шт.

18

539997R1

BRACKET, heat shield upper

2шт.

425-145

JAM NUT,Jam, 5/16"-18, G5

5/16-18 znd hex. jam

4шт.

22506R1

SCREW

5/16-18 x 1/2 cdp hex-hd cap

4шт.

619855R1

WASHER

11/32 x 3/4 x .054 znd

4шт.
