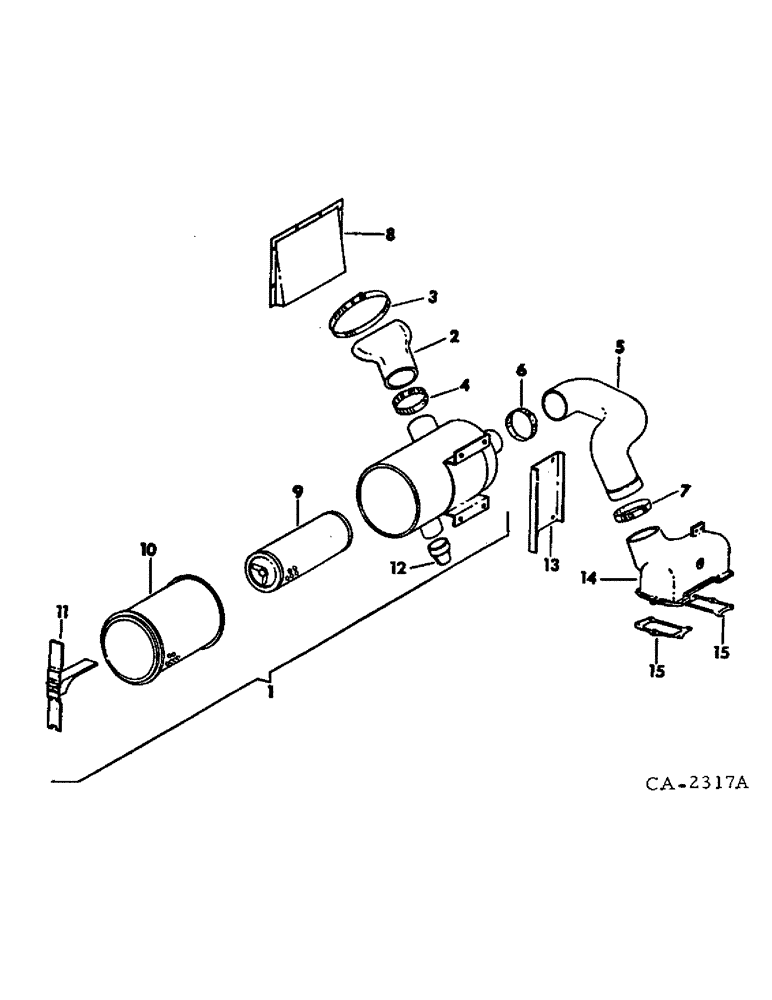

Запчасти Case IH 1568 (12-03) - POWER, AIR CLEANER AND CONNECTIONS, 1568 TRACTORS Power

1

538413R91

CLEANER ASSY, air, composed of ref nos 9 through 12

1шт.

2

532455R1

INTAKE AIR HOSE

HOSE, air cleaner intake

1шт.

3

427312R91

HOSE CLAMP,#100, 5.88/6.75 Type F Worm

CLAMP, intake hose front

1шт.

4

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP, intake hose rear

1шт.

5

538120R1

HOSE, air cleaner outlet

1шт.

6

397258R1

HOSE CLAMP,#64, 3.56/4.50 Type F Worm, W/liner

CLAMP, air cleaner outlet hose front

1шт.

7

538122R1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm, W/liner

CLAMP, air cleaner outlet hose rear

1шт.

8

120201C1

BAFFLE

pre-cleaner

1шт.

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

6шт.

9

537338R2

AIR FILTER

ELEMENT, safety

1шт.

10

537337R1

AIR FILTER

ELEMENT, filter

1шт.

11

67980C1

LATCH

ASSY

1шт.

12

383734R2

VALVE

unloader

1шт.

13

538119R1

BRACKET, air cleaner support

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

2шт.

179858

SUPPORT

SCREW, 7/16-14 x 1 hex-hd cap

3шт.

NLS

NO LONGER SERVICED

7/16-14 hex.

2шт.

14

538121R2

MANIFOLD, crossover

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

15

295465C3

GASKET

crossover manifold

2шт.

B94569

NUT, WING

1шт.
