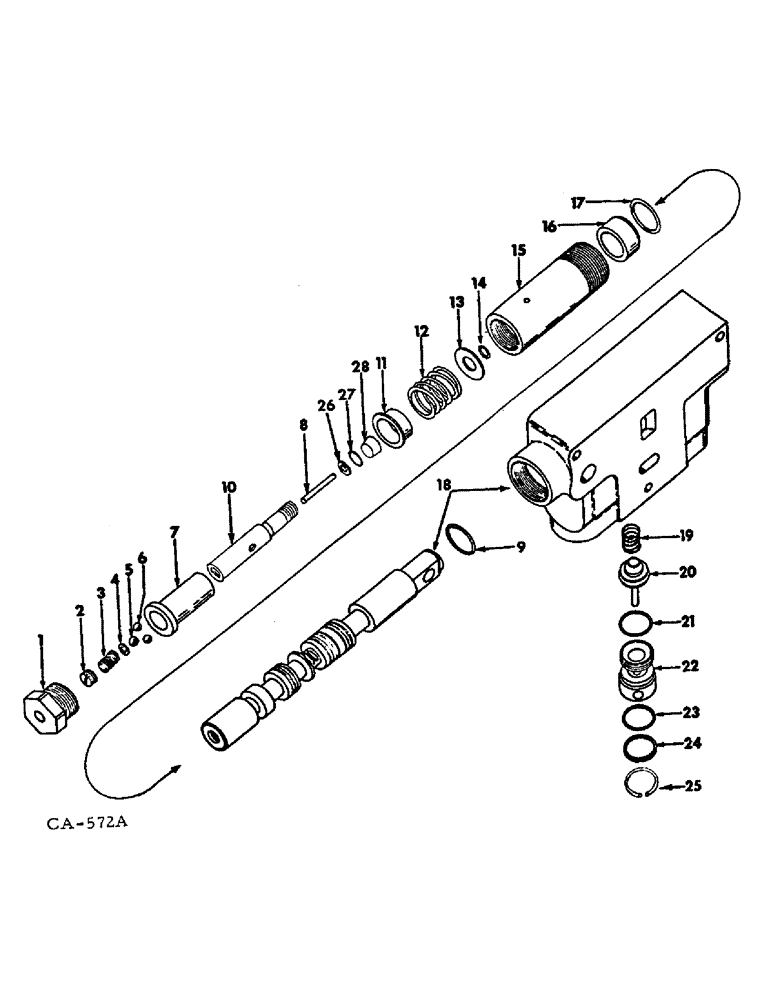

Запчасти Case IH 1568 (10-24) - HYDRAULICS, HYDRAULIC CONTROL VALVE (07) - HYDRAULICS

61082C91

VALVE

ASSY, hydraulic control

1шт.

529912R92

VALVE

ASSY, hydraulic control

1шт.

1

376425R1

PLUG

CAP, control valve

1шт.

432539

HOLE PLUG BUTTON,7/16"

PLUG, 7/16 steel button, control valve cap

1шт.

2

377803R1

PLUG

spring retaining

1шт.

3

377802R1

SPRING

detent

1шт.

4

377801R1

WASHER,5.87mm ID x 11.18mm OD x 3.81mm Thk

detent actuating ball

1шт.

5

17010R1

BALL,5/16" Dia

Detent actuating 5/16" Dia

1шт.

6

17008R1

BALL,1/4" Dia

Chrome-Steel, detent 1/4" Dia

3шт.

7

376426R2

SLEEVE

position control

1шт.

8

529913R1

PISTON

unlatching

1шт.

9

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

7/8 x 1-1/8 x 1/8, control valve spool upper

1шт.

10

529906R91

ACTUATOR

ASSY, center spring, Includes ref nos 26, 27 and 28

1шт.

11

376423R1

CUP

RETAINER, centering spring

1шт.

12

376422R1

VALVE SPRING

SPRING, centering

1шт.

13

376420R2

WASHER,13.34mm ID x 33.53mm OD x 1.52mm Thk

centering spring thin

1шт.

14

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Centering spring actuator

1шт.

15

395783R2

SLEEVE CYLINDER

SLEEVE, cap retaining

1шт.

16

395781R3

DETENT

RETAINER, valve spool o-ring

1шт.

17

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/6 x 3/32, control valve spool lower

1шт.

18

BODY ASSY, control valve, Not serviced separately, Order valve assy

1шт.

19

395278R1

SPRING

back flow check poppet valve

1шт.

20

395277R1

VALVE

back flow check poppet

1шт.

21

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 x 3/32, check poppet retainer inner

1шт.

22

383280R1

VALVE

RETAINER, valve back flow check poppet

1шт.

23

383219R1

O-RING,0.924" ID x 0.103" Width

15/16 x 1-1/8 x 3/32, check poppet retainer outer

1шт.

24

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER, check poppet retainer o-ring back-up

1шт.

25

537603R1

RING

check poppet retainer snap

1шт.

26

529908R1

WASHER

back-up

1шт.

27

529909R1

O-RING,1.78mm Thk x 2.54mm ID

center spring actuator

1шт.

28

529904R1

RETAINER

PLUG, actuator valve

1шт.

383548R92

SET OF PARTS

PACKAGE, hyd open center control valve service, Consists of

1шт.

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk

1шт.

383219R1

O-RING,0.924" ID x 0.103" Width

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

1шт.

253070R1

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

383280R1

VALVE

RETAINER

1шт.

537603R1

RING

1шт.

395278R1

SPRING

1шт.

395277R1

VALVE

1шт.

376433R1

BACK-UP RING,0.957" ID x 0.87" Width

WASHER

1шт.

548788R91

STRIPPER PACKAGE

PACKAGE, control valve lower seal, Consists of

1шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

395781R3

DETENT

RETAINER

1шт.

395783R2

SLEEVE CYLINDER

SLEEVE

1шт.
