(10-13) - HYDRAULICS, POWER STEERING CYLINDER

Запчасти Case IH 1568 (10-13) - HYDRAULICS, POWER STEERING CYLINDER (07) - HYDRAULICS

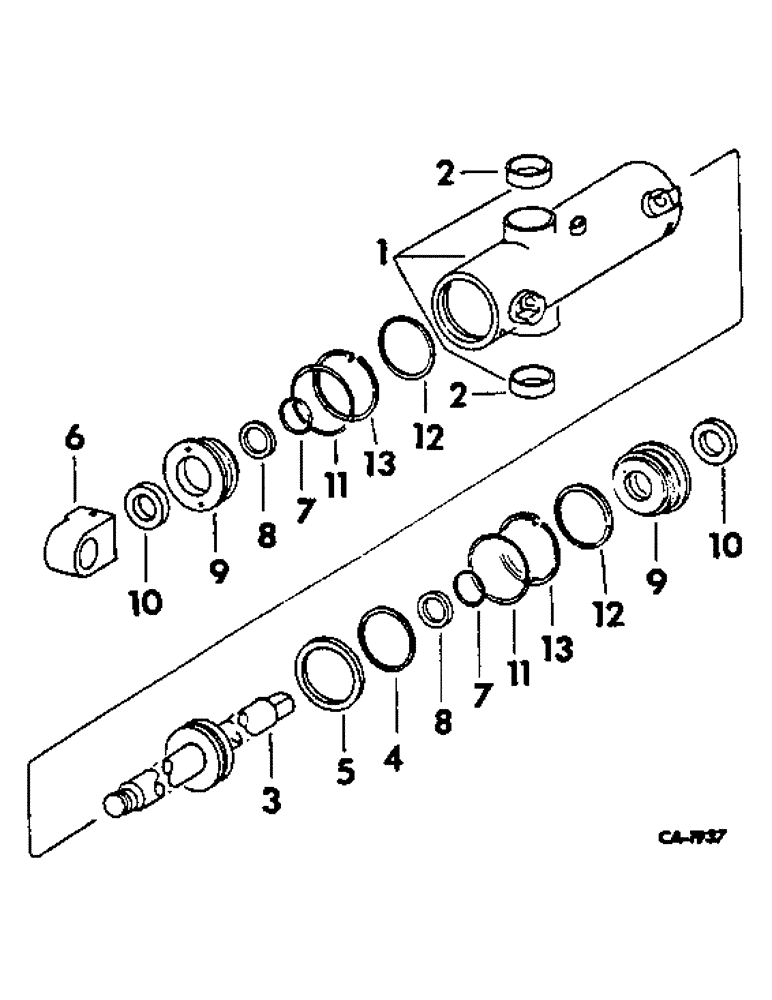

Схема запчастей Case IH 1568 - (10-13) - HYDRAULICS, POWER STEERING CYLINDER (07) - HYDRAULICS
7
1
11
12
10
8
13
10
12
6
9
8
9
2
7
3
11
4
13
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

533279R93

CYLINDER BLOCK

CYLINDER ASSY, hydraulic power steering, 1566 tractors, Serial Range: -13608

1шт.

533279R93

CYLINDER BLOCK

CYLINDER ASSY, hydraulic power steering, 1568 tractors, Serial Range: -8020

1шт.

533279R94GV

STEERING CYLINDER

Value, Steering Cylinder

1шт.

63864C91

CYLINDER

ASSY, hydraulic power steering, 1566 tractors, Start Serial: 13609

1шт.

63864C91

CYLINDER

ASSY, hydraulic power steering, 1568 tractors, Start Serial: 8021

1шт.

1

533280R2

BODY ASSY, hyd cylinder

1шт.

127782

SET SCREW,Hex Skt, 1/4"-20 x 1/4", Cup Pt

Use w/cylinder 533279R93 Hex Soc, 1/4"-20 x 1/4", Cup Pt

2шт.

1

63865C91

BODY

ASSY, hyd cylinder, Use w/cylinder 63865C91

1шт.

2

533283R1

BUSHING,38.16mm ID x 41.41mm OD x 10.99mm L

trunnion

2шт.

3

533286R11

ROD

ASSY, piston

1шт.

4

22240R1

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

2 x 2-1/4 x 1/8, piston seal

1шт.

5

379570R1

SEALING RING

piston

1шт.

6

533287R2

END ASSY.

END, rod, Use w/cylinder 533279R93

1шт.

7

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 x 1/8, piston rod

2шт.

8

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

rod o-ring back-up

2шт.

9

533288R1

END

HEAD, cylinder front

2шт.

10

378587R91

OIL SEAL

ASSY, scraper oil

2шт.

11

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2-3/16 x 2-3/4 x 3/32, front head

2шт.

12

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

o-ring backup

2шт.

13

391985R1

SPRING

RING, front head retaining

2шт.

533290R91

KIT

hydraulic cylinder service, Consists of

1шт.

379457R1

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

2шт.

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

2шт.

22240R1

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

2шт.

391985R1

SPRING

RING

1шт.

378587R91

OIL SEAL

2шт.

379570R1

SEALING RING

2шт.

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

2шт.

382063R1

BACK-UP RING,2.385" ID x 0.052" Width

2шт.
