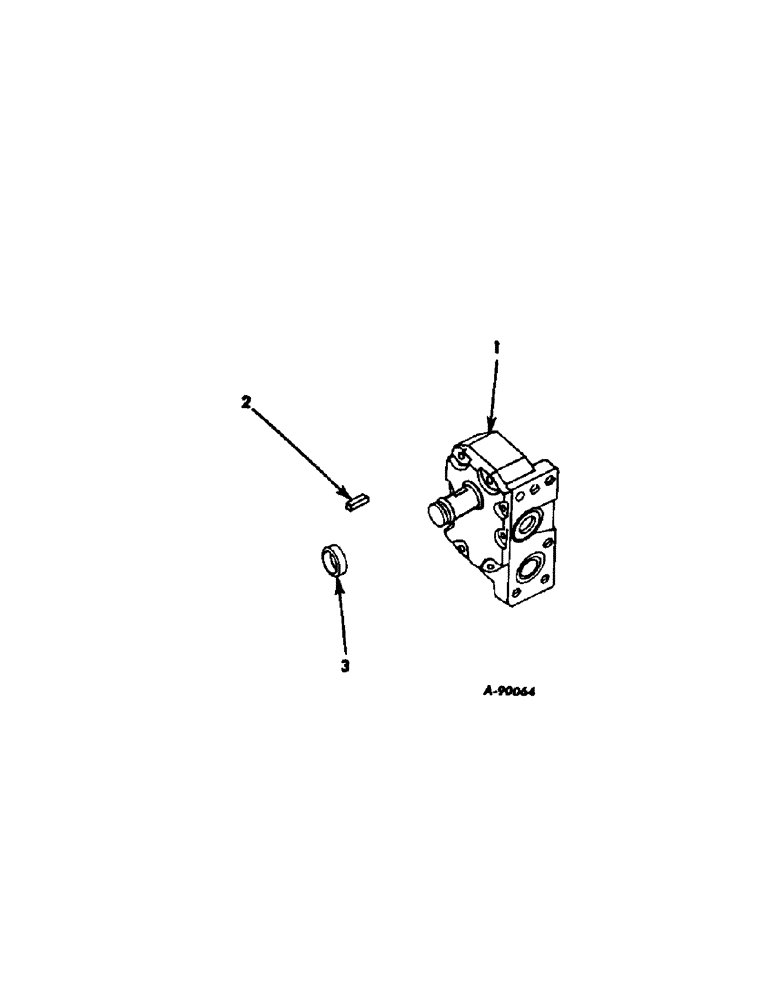

Запчасти Case IH 1568 (10-08[A]) - HYDRAULICS, HYDRAULIC PUMP, THOMPSON, 9 GPM (07) - HYDRAULICS

1

64801C91

PUMP

ASSY, hydraulic, Includes ref. nos 2 and 3, Optional with 527397R92

1шт.

1

1949304C1

REMAN-HYD PUMP

Reman for New PN 64801C91

1шт.

1

1949305C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

383539R1

KEY

pump drive shaft

1шт.

3

373157R91

OIL SEAL

SEAL, pump drive shaft

1шт.

64853C1

STRIPPER PACKAGE

KIT, hydraulic pump o-ring and gasket service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PLATE, pressure

1шт.

NSS

NOT SOLD SEPARAT

SEAL, shaft

1шт.

NSS

NOT SOLD SEPARAT

WEB, packing

2шт.

NSS

NOT SOLD SEPARAT

WEB, sealing

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
