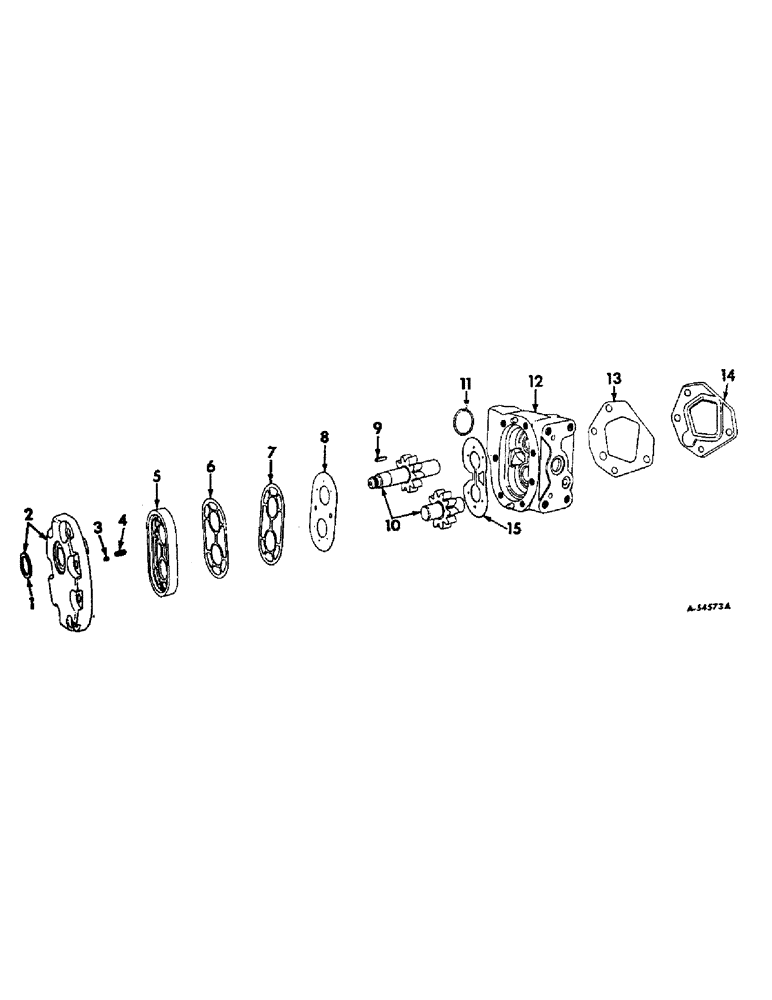

Запчасти Case IH 1568 (10-07) - HYDRAULICS, HYDRAULIC PUMP, CESSNA 12 GPM AND 15 GPM (07) - HYDRAULICS

*

70933C91

PUMP, HYDRAULIC

PUMP ASSY, hydraulic gear, 12 GPM, Optional w/70194C91

1шт.

*

1949296C1

REMAN-HYD PUMP

1566, 1568, Both INTERNATIONAL DIESEL TRACTOR, PUMP ASSY (1/75-12/78)

1шт.

*

1949297C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

*

70932C91

PUMP

ASSY, hydraulic gear, 15 GPM, Optional w/70195C91

1шт.

*

1949300C1

REMAN-HYD PUMP

1566, 1568, Both INTERNATIONAL DIESEL TRACTOR, ASSY, hyd gear, CESSNA 12 GPM AND 15 GPM (1/75-12/78)

1шт.

*

1949301C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

SEAL, pump shaft oil, not serviced separately, order seal repair kit 71264C1

1шт.

2

COVER, pump, not serviced separately, order complete pump assy

1шт.

3

16007R1

BALL

7/32 cr-stl

1шт.

4

383663R1

VALVE SPRING

SPRING, ball check

1шт.

5

SEAL, diaphragm, not serviced separately, order seal repair kit 71264C1

1шт.

6

GASKET, protector, not serviced separately, order seal repair kit 71264C1

1шт.

7

GASKET, back-up, not serviced separately order seal repair kit 71264C1

1шт.

8

DIAPHRAGM, not serviced separately, order seal repair kit 71264C1

1шт.

9

71266C1

KEY

pump drive gear

1шт.

10

GEAR, drive and driven, not serviced separately, order complete pump assy

1шт.

11

O-RING, not serviced separately, order seal repair kit 71264C1

1шт.

12

BODY, pump, not serviced separately, order complete pump assy

1шт.

13

71265C1

GASKET

rear cover

1шт.

14

371524R1

LARGE PLATE

COVER, rear, use on pump assy 70933C91 only

1шт.

15

PLATE, thrust, not serviced separately, order seal repair kit 71264C1

1шт.

*

71264C1

SEAL KIT

seal repair, Consists of

1шт.

*

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

*

NSS

NOT SOLD SEPARAT

O-RING

1шт.

*

NSS

NOT SOLD SEPARAT

THRUST PLATE

1шт.

*

383663R1

VALVE SPRING

SPRING

1шт.

*

NSS

NOT SOLD SEPARAT

GASKET, back-up

1шт.

*

NSS

NOT SOLD SEPARAT

GASKET, protective

1шт.

*

NSS

NOT SOLD SEPARAT

SEAL, diaphragm

1шт.

*

16007R1

BALL

SEAL, shaft

1шт.

*

BALL

1шт.

*

NSS

NOT SOLD SEPARAT

INSTRUCTION

1шт.
