Запчасти Case IH 1566 (08-16) - ELECTRICAL, ELECTRICAL WIRING TRACTORS WITH WIDE COVERAGE FENDERS (06) - ELECTRICAL

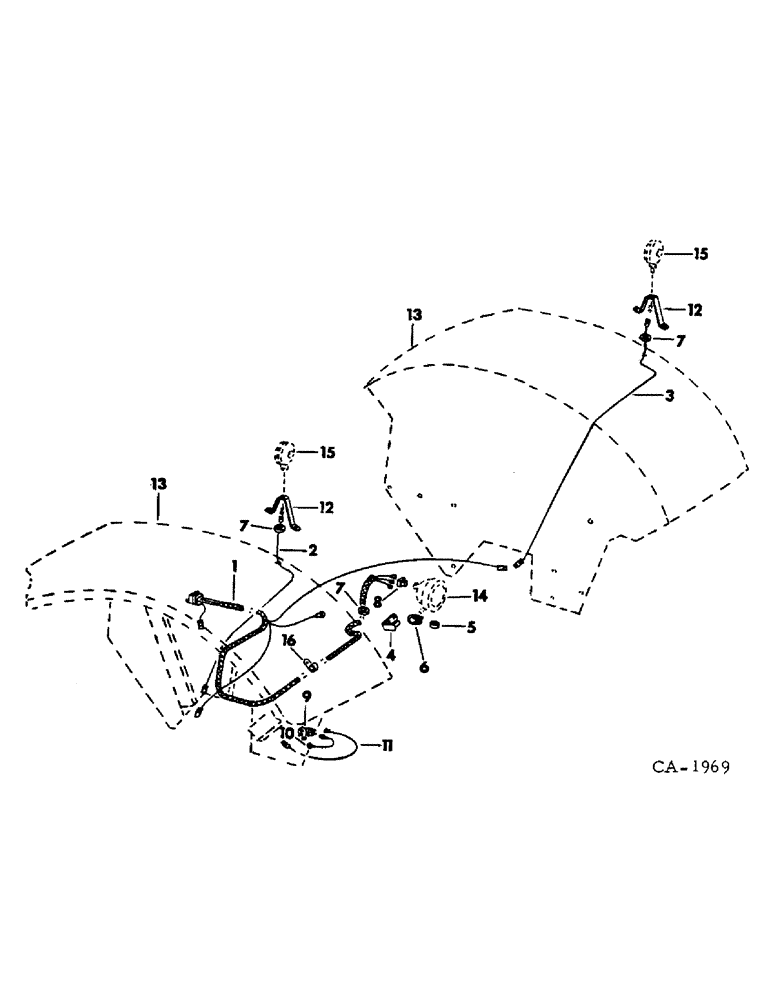

Схема запчастей Case IH 1566 - (08-16) - ELECTRICAL, ELECTRICAL WIRING TRACTORS WITH WIDE COVERAGE FENDERS (06) - ELECTRICAL
9
11
7
7
5
7
8
4
1
6
13
14
15
3
16
12
2
10
12
13
15

Артикул

Название

Примечание

Количество

1

534371R1

HARNESS ASSY, LH fender

1шт.

2

534375R1

CABLE ASSY, harness to RH fender junction

1шт.

3

405218R1

CABLE ASSY, RH fender warning light

1шт.

4

372355R11

SUPPORT

ASSY, combination rear light

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

180125

SCREW,Hex, 3/8" - 16 x 1 3/8", Gr 5

3/8-16 x 1-3/8 znd hex-hd cap

2шт.

5

365503R1

SPACER

combination rear light

1шт.

6

350920R1

CLAMP

combination rear light

1шт.

7

144227

SPIDER, REEL

rubber

3шт.

8

377105R1

CONNECTOR, ELEC

CONNECTOR, combination rear light

1шт.

9

362002R92

SOCKET

ASSY, electric breakaway connector

1шт.

64022H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

11

405895R1

CABLE ASSY, harness junction to breakaway connector socket

1шт.

12

394337R1

BRACKET, flashing light mounting

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

180118

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

SCREW, 3/8-16 x 5/8 znd hex-hd cap

4шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .065 C-Z

4шт.

13

FENDER ASSY, wide coverage, Refer to wide coverage fenders listing, group 13

1шт.

14

LIGHT ASSY, combination rear and tail, Refer to starting and lighting listing, this group

1шт.

15

LIGHT ASSY, flashing warning, Refer to starting and lighting listing, this group

1шт.

16

CLIPS, Refer to clips listing, this group

1шт.
