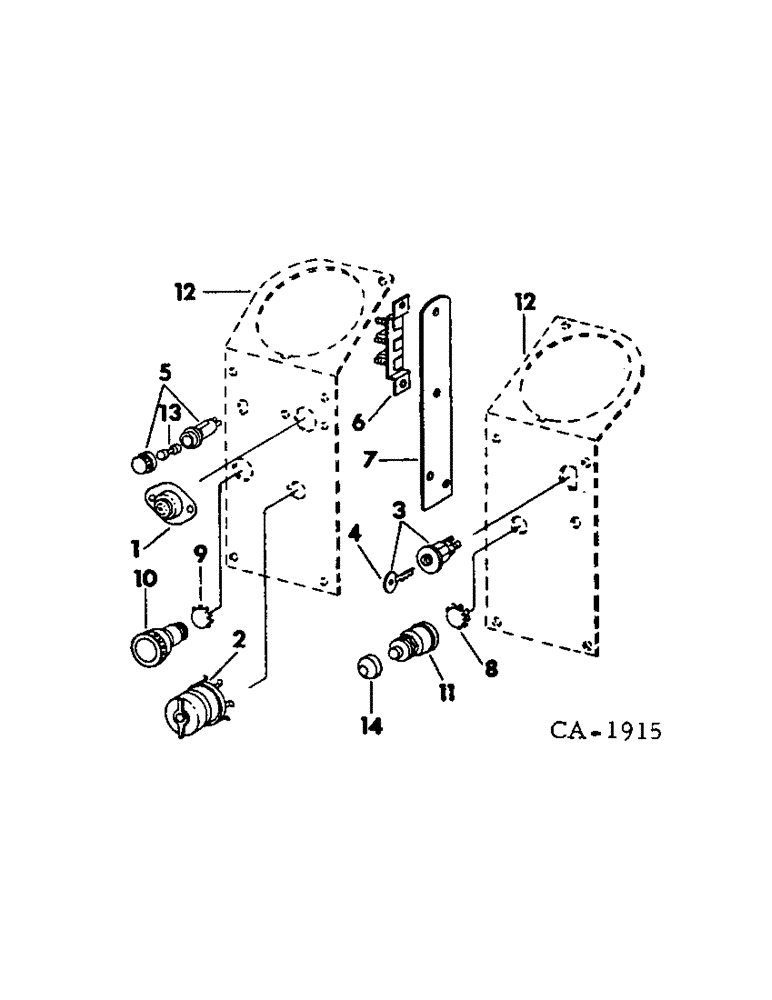

Запчасти Case IH 1566 (08-13) - ELECTRICAL, ENGINE CONTROLS AND SWITCHES (06) - ELECTRICAL

1

397940R93

SWITCH

push button

1шт.

120611

NUT,#10 - 32

10-32, C-Z sq

2шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

2

403571R2

SWITCH

lighting

1шт.

3

403562R2

SWITCH

ASSY, ignition key

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting

1шт.

4

382458R2

KEY

ignition switch

1шт.

5

376852R91

HOUSING

ASSY, fuse

1шт.

6

378336R91

BLOCK

ASSY, junction

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

109084

NUT,1/4"-20, G5

2шт.

7

534301R1

SUPPORT, junction block

1шт.

109084

NUT,1/4"-20, G5

2шт.

179795

TILLAGE BLADE

SCREW, 1/4-20 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

374342R1

PLUG

horn switch hole button

1шт.

9

432281

HOLE PLUG BUTTON,29/32"

PLUG, cigarette lighter hole button

1шт.

10

378781R91

PACKAGE

UNIT, popout cigarette lighter

1шт.

11

393209R91

SWITCH

horn

1шт.

12

PANELS, instrument, Refer to instrument panel and gauges listing, group 11

1шт.

13

432644

FUSE,20 Amp, Type SFE

cartridge type sfe-20

1шт.

14

371487R1

CYLINDER END CAP

CAP, horn switch dust, gray

1шт.
