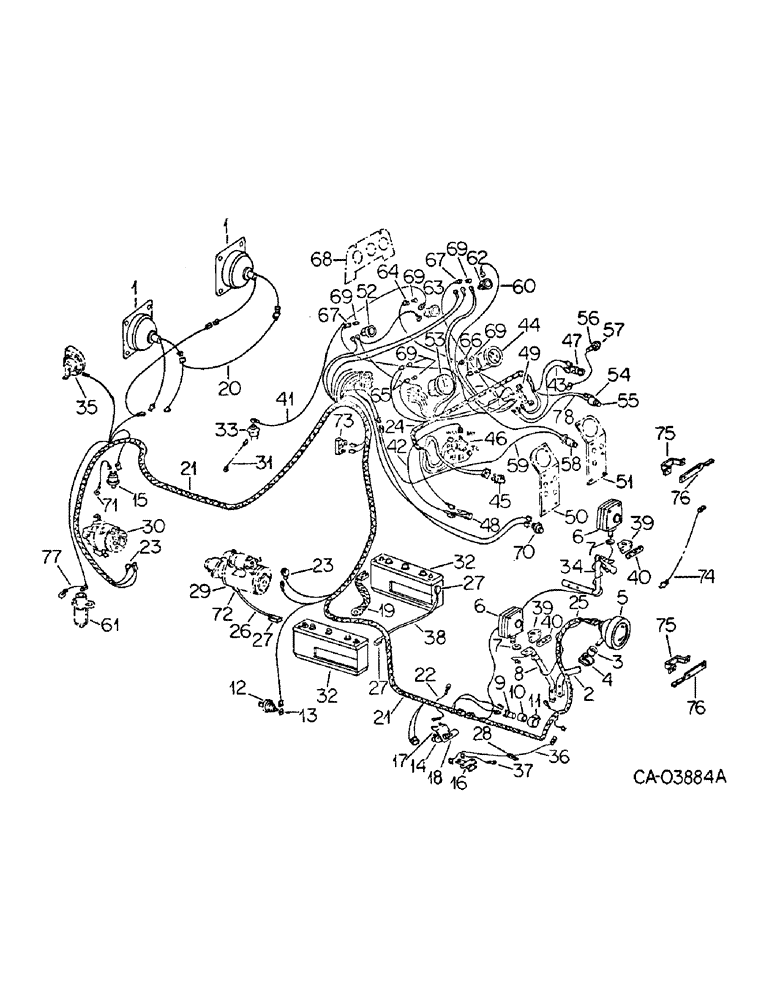

Запчасти Case IH 1566 (08-09) - ELECTRICAL, STARTING AND LIGHTING (06) - ELECTRICAL

1

533063R91

LIGHT

ASSY, shock proof head, Only serviceable items are sealed beam unit, 373662R91 and rubber retainer, 676078R1

2шт.

533081R1

SCREW,Phillips Drive, Flat HD, 1/4" x 1"

head light support

8шт.

2

397479R11

SUPPORT

ASSY, rear light bracket

1шт.

3

365503R1

SPACER

combination rear light

1шт.

4

350920R1

CLAMP

combination rear light

1шт.

5

387729R92

LIGHT ASSY.

LIGHT ASSY, combination rear and tail, Only serviceable items are sealed beam unit, 371461R91, rubber retainer, 676078R1 and lamp, 455490

1шт.

102637

NUT,1/2"-13, G5

1шт.

6

67538C92

HEADLIGHT

LIGHT ASSY, square vertical warning, Only serviceable items are lamp, 9417866 and lens, amber 69616C1

2шт.

120371

NUT,1/2"-20, G5

2шт.

493-41052

LOCK WASHER,Ext Tooth, 1/2"

WASHER, 1/2 C-Z ext-tooth lock

2шт.

7

394262R1

WASHER

GASKET, flashing warning light

2шт.

8

394135R1

BRACE, LH flashing warning light mtg

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .060) 3/8"

2шт.

9

394132R91

FLASHER UNIT

FLASHER, warning light

1шт.

10

394134R1

SEAL

ABSORBER, flasher mounting

1шт.

11

394133R1

FASTENER

BRACKET, flasher mounting

1шт.

12

376855R92

SWITCH

transmission oil pressure

1шт.

13

384396R1

SPADE TERMINAL,Male

TERMINAL, transmission oil pressure switch straight

1шт.

14

121629C1

IGNITION SWITCH

SWITCH ASSY, neutral starting

1шт.

15

SWITCH ASSY, electric air cleaner, Refer to electric air cleaner switch listing, this group

1шт.

16

362002R92

SOCKET

ASSY, breakaway connector

1шт.

64002H

SCREW, 8-32 x 5/16 C-Z slt-fil-hd mach

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2 for tractors w/o deluxe fenders Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

SCREW, 1/4-20 x 2-1/4 znd hex-hd cap, 2 for tractors w/deluxe fenders

1шт.

8719H

SPACER, 1/8 x 1-3/8 std pipe, 2 for tractors w/deluxe fenders

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

17

534484R1

BRACKET, neutral starting switch

1шт.

14991R1

BOLT

3/8-16 x 5/8 short sq-nk crg

1шт.

102635

NUT,3/8"-16, G5

1шт.

18

534409R1

ROD

neutral staring switch

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 cot.

1шт.

16558R1

WASHER

17/64 x 5/8 x .065

1шт.

19

629029R92

NEG BATTERY CABLE

STRAP ASSY, Serial Range: battery-ground

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

20

534374R1

CABLE

ASSY, head light, Serial Range: juntion-ground

1шт.

21

538995R1

HARNESS

ASSY, main cable

1шт.

86982772

GROMMET

main cable harness, In upper heat shield

1шт.

22

405219R1

CABLE

ASSY, platform to rear frame ground

1шт.

23

399470R1

BOOT

INSULATOR, terminal

2шт.

24

534367R1

HARNESS

ASSY, instrument panel cable

1шт.

25

534370R1

HARNESS

ASSY, combination and flashing warning light

1шт.

26

71198C1

CABLE

ASSY, battery to solenoid switch

1шт.

26

537063R1

CABLE

ASSY, battery to solenoid switch, tractors w/air conditioned cab

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

27

383619R1

COVER

battery cable terminal, Large

1шт.

28

395228R1

CABLE CLIP

CLIP, breakaway connector cable, tractors without deluxe fenders

1шт.

29

CRANKING MOTOR, refer to cranking motor listing, group 8

1шт.

30

ALTERNATOR GENERATOR, refer to alternator generator listing, group 8

1шт.

31

69362C1

CABLE

ASSY, electric fuel gauge sending, Serial Range: unit-ground

1шт.

365501R1

TERMINAL CONNECTOR

TERMINAL, fuel gauge sending unit

1шт.

32

539430R1

BATTERY, Prestolite 1302x, 6 volt

2шт.

32

392244R91

BATTERY, Prestolite 1303x, 6 volt, heavy duty

2шт.

33

SENDING UNIT, fuel gauge, refer to fuel tank, piping and connections listing, group 12

1шт.

34

533090R1

PIPE, RH flashing warning light mtg

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8-16 x 1-3/4 hex-hd cap

2шт.

PO10532

WASHER

13/32 x 1-1/4 x 11 ga

2шт.

20285H

WASHER

13/32 x 3/4 x 11 ga

2шт.

102635

NUT,3/8"-16, G5

2шт.

35

9000239

HORN

ASSY, electric, 166166R91

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

1шт.

36

405889R1

CABLE PULLING GRIP

CABLE ASSY, harness junction to breakaway connector socket, tractors without deluxe fenders

1шт.

36

405877R1

HARNESS

CABLE ASSY, harness junction to breakaway connector socket, tractors with deluxe fenders

1шт.

37

404395R1

CABLE

ASSY, breakaway connector, Serial Range: socket-ground

1шт.

38

534376R1

NEG BATTERY CABLE

CABLE ASSY, Serial Range: battery-battery

1шт.

356062R91

BOLT

ASSY, terminal

2шт.

39

533091R1

BRACKET, reflector mounting

2шт.

40

533092R1

REFLECTOR

red rear

2шт.

163162

SCREW,Self Tap, Cross Pan Hd, #8 - 18 x 1/2"

8-18 x 1/2 C-Z cr-rec-pan-hd tap

4шт.

41

68624C1

CABLE

ASSY, fuel gauge to sending unit

1шт.

145510

FUSE,1 Amp, Type 3AG

cartridge type agc-1

1шт.

42

404401R1

CABLE PULLING GRIP

CABLE ASSY, fuse housing to lighting switch

1шт.

43

534372R1

CABLE

ASSY, key switch to junction block

1шт.

44

GAUGE ASSY, cluster, refer to instrument panel and gauges listing, group 11

1шт.

45

SWITCH ASSY, push button, refer to engine controls and switches listing, group 8

1шт.

46

SWITCH ASSY, lighting, refer to engine controls and switches listing, group 8

1шт.

47

SWITCH ASSY, key, refer to engine controls and switches listing, group 8

1шт.

48

HOUSING ASSY, fuse, refer to engine controls and switches listing, group 8

1шт.

49

BLOCK ASSY, juntion, refer to engine controls and switches listing, group 8

1шт.

50

PANEL ASSY, instrument LH, refer to instrument panel and gauges listing, group 11

1шт.

51

PANEL ASSY, instrument RH, refer to instrument panel and gauges listing, group 11

1шт.

52

INDICATOR, electric air cleaner, refer to instrument panel and gauges listing, group 11

1шт.

53

SPEEDOMETER/TACHOMETER ASSY, refer to instrument panel and gauges listing, group 11

1шт.

54

107595C91

LAMP

LIGHT ASSY, transmission oil pressure warning light

1шт.

55

9412348

BULB,C2B, #257, 14V

LAMP, no. 25712 volt

1шт.

56

406127R1

LAMP BASE

LIGHT ASSY, shift quadrant

1шт.

57

9417865

BULB,2C2R, #1155, 13.5V

LAMP, no. 1155 12 volt

1шт.

58

SWITCH ASSY, horn, refer to engine controls and switches listing, group 8

1шт.

59

405221R1

CABLE

ASSY, horn switch to harness junction

1шт.

60

534373R1

CABLE ASSY, horn switch to charge indicator

1шт.

61

SOLENOID ASSY, ether starting, refer to ether starting listing, group 12

1шт.

62

GAUGE ASSY, charge indicator, refer to instrument panel and gauges listing, group 11

1шт.

63

GAUGE ASSY, fuel, refer to instrument panel and gauges listing, group 11

1шт.

64

534819R1

SOCKET

ASSY, fuel gauge instrument light

1шт.

65

534848R1

SOCKET

ASSY, tachometer instrument light

1шт.

66

534847R1

SOCKET

ASSY, gauge cluster instrument light

1шт.

67

534849R1

WIRE HARNESS

SOCKET ASSY, charge and air indicator instrument light

1шт.

68

PANEL ASSY, instrument upper, refer to instrument panel and gauges listing, group 11

1шт.

69

9417863

BULB,C2F, #1895, 14V

LAMP, no. 1895 12 volt

7шт.

70

SWITCH ASSY, ether solenoid, refer to ether starting listing, group 12

1шт.

71

405211R1

CABLE PULLING GRIP

CABLE ASSY, vacuum switch to ground, 1566 tractors

1шт.

71

539087R1

CABLE ASSY, vacuum switch to ground, 1568 tractors

1шт.

72

364910R1

BOOT

COVER, battery terminal small

1шт.

73

534784R1

RESISTOR

RESISTANCE UNIT

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

SCREW, 1/4-20 x 1/2 znd hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

74

67279C1

CABLE ASSY, warning light RH, tractors w/four post protective frame and w/o fenders

1шт.

67311C1

CLIP, flashing warning light cable

10шт.

75

66656C1

CLAMP, canopy, tractors w/four post protective frame and w/o fenders

2шт.

76

67280C1

BRACKET, warning light, tractors w/four post protective frame and w/o fenders

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hex-hd cap

4шт.

21741R1

WASHER

.406 x .875 x .105 znd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

77

405227R1

CABLE

ASSY, ether, Serial Range: solenoid-ground

1шт.

78

121626C1

CABLE ASSY.

CABLE ASSY, trans. oil pressure warning light

1шт.

405883R91

PARTS ACCESSORY, electric breakaway connector socket, tractors without deluxe fenders, Consists of

1шт.

404395R1

CABLE

1шт.

405889R1

CABLE PULLING GRIP

CABLE

1шт.

395228R1

CABLE CLIP

CLIP

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

64022H

SCREW

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

362002R92

SOCKET

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

405884R91

PARTS ACCESSORY, electric breakaway connector socket, tractors with deluxe fenders, Consists of

1шт.

404395R1

CABLE

1шт.

405877R1

HARNESS

CABLE

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

64022H

SCREW

2шт.

18660R1

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 2

SCREW

2шт.

362002R92

SOCKET

1шт.

8719H

SPACER

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.
