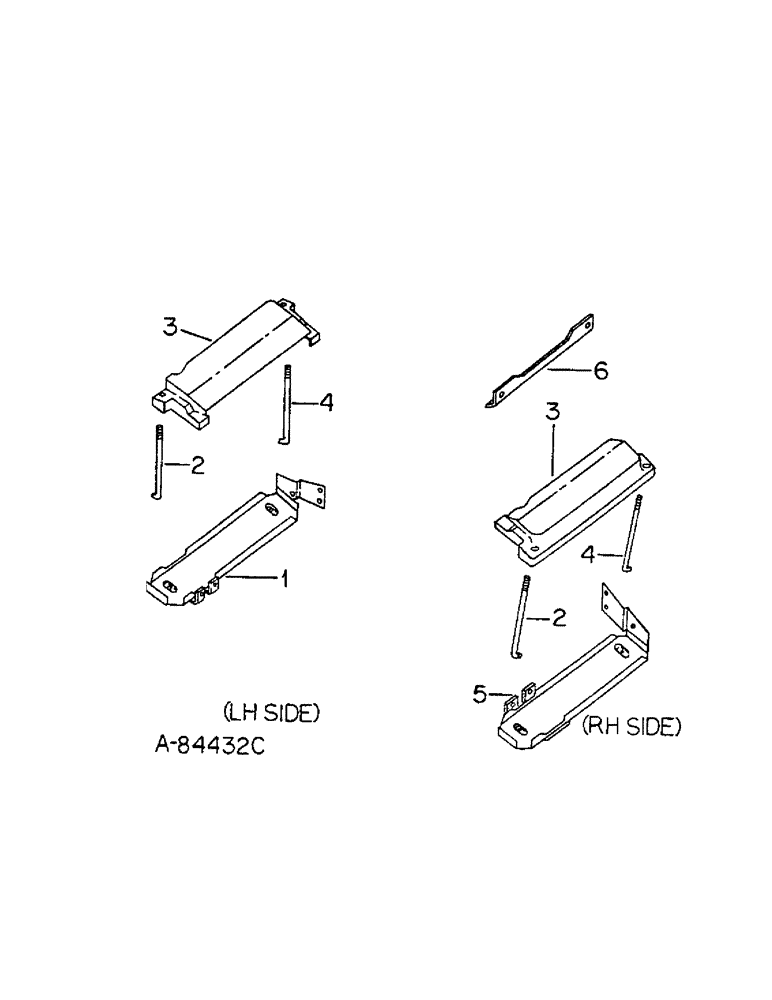

Запчасти Case IH 1566 (08-04[A]) - ELECTRICAL, BATTERY TRAY (06) - ELECTRICAL

1

399048R1

TRAY

ASSY, battery LH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Hex, 3/8"-16 x 1", G5

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065) 3/8"

1шт.

2

377837R1

ROD

battery hold down rear

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

2шт.

3

71717C91

KIT

COVER ASSY, battery

2шт.

4

64582C1

BOLT

ROD, battery hold down front

2шт.

4

344837R1

ROD, battery hold down front, tractors with deluxe cab

2шт.

129-419

WING NUT,5/16"-18

NUT, 5/16-18 wing

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x .065 C-Z

2шт.

5

399055R1

TRAY

ASSY, battery RH

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1566 Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1568 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 3/4 hex hd cap

2шт.

311979R1

SCREW

w/nylon pellet insert, 3/8-16 x 7/8 hex-hd cap

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), 1566 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x .065), 1568 3/8"

2шт.

6

NOT USED IN THIS APPLICATION

1шт.
