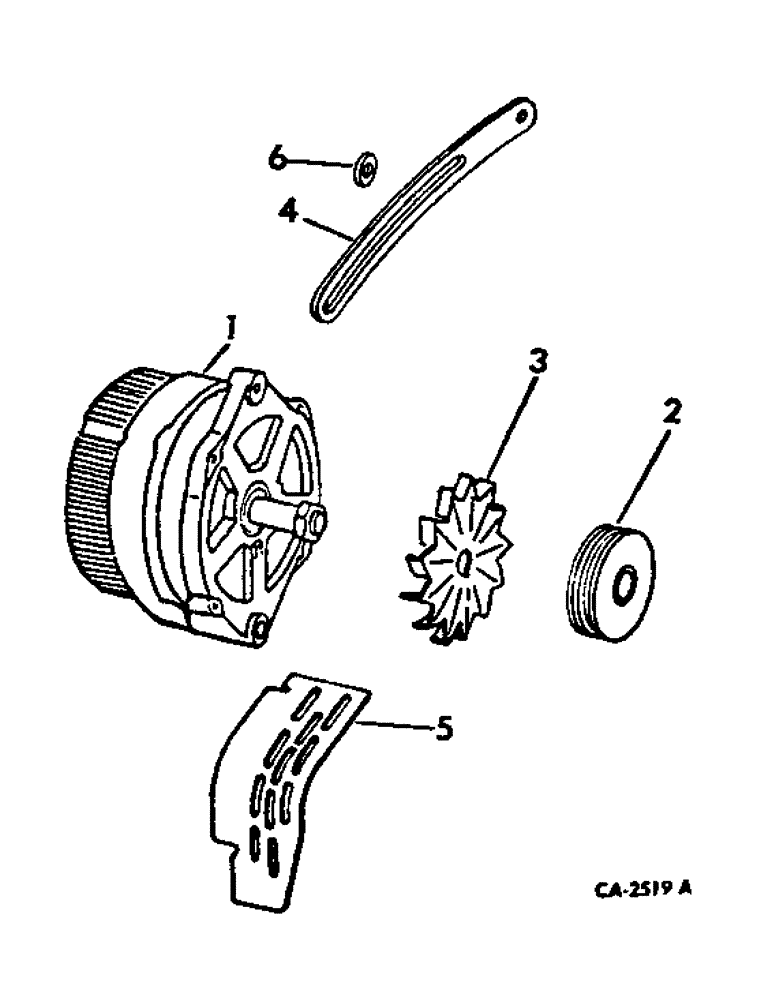

Запчасти Case IH 1566 (08-02) - ELECTRICAL, ALTERNATOR GENERATOR AND CONNECTIONS, WITH INTERGRAL VOLTAGE REGULATOR (06) - ELECTRICAL

1

1100583

GENERATOR

ALTERNATOR GENERATOR ASSY, 37 ampere, For components see list of parts under detail of alternator generator

1шт.

1

1102375

ALTERNATOR

ALTERNATOR GENERATOR ASSY, 72 ampere, tractors w/air conditioned cab, For components see list of parts under details of alternator generator

1шт.

1

103798A1GV

ALTERNATOR

Value, 12V, 63A

1шт.

1

103798A1R

REMAN-ALTERNATOR

Rmanufactured Alternator, 12 Volt 63 Ampere

1шт.

1

103798A1C

CORE-ALTERNATOR

Return Number

1шт.

1

103801A1R

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

1

103801A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

1

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

1

103804A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 Volt 72 Ampere

1шт.

1

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex. mach screw

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT, 3/8-16 phc hex. lock

1шт.

189305

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8-16 x 3-1/2 hex-hd cap, 1568 tractors

1шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4 hex-hd cap, 1566 tractors

1шт.

2

384645R1

PULLEY

PULLEY, alternator generator, 1566 tractors

1шт.

2

676628R1

PULLEY

PULLEY, alternator generator, 1568 tractors

1шт.

2

537070R1

PULLEY

PULLEY, alternator generator, double groove, 1566 tractors w/air conditioned cab

1шт.

3

221425R1

FAN

FAN, alternator generator

1шт.

4

532418R1

BRACE

BRACE, alternator generator, 1566 tractors

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

168130R1

SPARE PART BRACE, alternator-generator, 1568 tractors

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

BOLT, Hex, 5/16"-18 x 1 1/4", G5

1шт.

5

71197C91

STRIPPER PACKAGE

PACKAGE, alternator shield, 1566 tractors, Consists of

1шт.

537327R2

SHIELD

SHIELD (NSS)

1шт.

537326R1

BOLT

SCREW

1шт.

557265R1

WASHER

WASHER

2шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT

1шт.

9413953

LOCK NUT,3/8"-16, GB

NUT

1шт.

6

557265R1

WASHER

WASHER, .344 x 1.0 x .105

1шт.

537326R1

BOLT

SCREW, 5/16-18 x 1-1/2 znd hex-hd cap, 1566 tractors

1шт.

472146R1

LOCK NUT,5/16"-18, GB

NUT, 5/16-18 distorted thd lock

1шт.
