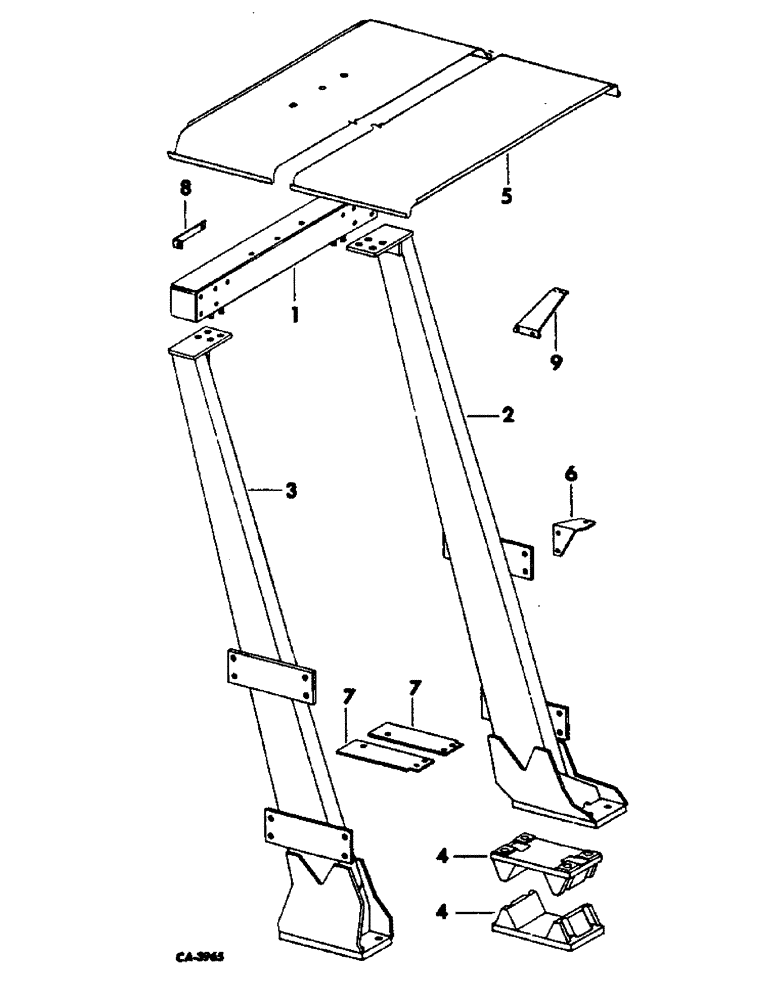

Запчасти Case IH 1566 (13-30) - SUPERSTRUCTURE, PROTECTIVE FRAME, TOW POST ROPS MODEL (05) - SUPERSTRUCTURE

1

BAR ASSY, frame cross, Serviced only as a part of the protective Drame att.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 C-Z hex.

8шт.

2

FRAME ASSY, safety LH, Serviced only as a part of the protective frame att.

1шт.

3

FRAME ASSY, safety RH, Serviced only as a part of the protective frame att.

1шт.

4

CLAMP, hex. axle, Serviced only as a part of the protective frame att.

1шт.

27321R1

SCREW,Hex, 1"-8 x 12", G8

1 x 12 znd hex-hd type 8

8шт.

21929R1

NUT,1"-8, G8

1-8 znd hex. type 8

8шт.

5

402105R1

TOP ASSY W/COATING

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

SCREW, 3/8-16 x 5 hex-hd cap

3шт.

120394

WASHER,3/8", SAE

WASHER, 13/32 x 13/16 x .051 C-Z

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

187462

BOLT,Hex, 7/16" - 14 x 5 1/2", Gr 5

7/16 x 5-1/2 type 5

10шт.

25545R1

WASHER

.469 x .922 x .134 phc hdn

20шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16 cad p/t lock type 5

10шт.

6

402111R1

SUPPORT, flasher light bracket LH, For tractors not equipped with deluxe fenders

1шт.

6

536529R1

SUPPORT, flasher light bracket RH, For tractors not equipped with deluxe fenders

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

102637

NUT,1/2"-13, G5

4шт.

7

402112R1

PLATE, platform filler

2шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT, 3/8-16 x 3/4 znd sq-nk crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

8

406115R1

BRACKET, stabilizer rear

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 znd hx hd cap

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

9

406117R1

BRACKET, stabilizer RH front

1шт.

9

406116R1

BRACKET, stabilizer LH front

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x znd hex-hd cap

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

6шт.

537339R1

SAFETY BELT

SAFETY BELT, 2", Cap screw mounting

1шт.

435394C2

SCREW, 7/16-14 x 2-1/2 phc hex-hd, cap type 8

2шт.

71499C1

SPACER, .493 x 1 C-Z pipe

2шт.

231-4117

LOCK NUT,7/16"-14, GB

NUT, 7/16-14 cdp hex

4шт.

68690C1

SAFETY BELT 2.00" W, Eye Bolt Mounting 2.00" W

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

271684C2

BOLT, eye

2шт.

402132R2

BAR, seat belt anchor

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

456939

NUT,7/16"-20, G8

7/16-20 type 4 hex

2шт.

404228R1

SAFETY BELT, Seat retainer, Tractor w/vertical acting seat and eye bolt mounting seat belts

2шт.

70950C1

SAFETY BELT, Retainer, Tractor with Vertical Acting Seat and Cap Screw Mounting Seat Belt

2шт.

70773C1

DECAL

PRODUCT GRAPHIC, seat belt

1шт.

68554C1

PRODUCT GRAPHIC

rops model

1шт.

142862

SCREW,Type U Metallic, Rnd Hd, #4 x 1/4"

no. 4 x 1/4 rd-hd blunt metal drive

2шт.

537626R91

PARTS ACCESSORY, canopy top, consists of ref. no. 5, 8 and 9 with attaching hardware

1шт.

71232C91

PARTS ACCESSORY, seat belt, 2 in., eye bolt mounting, consists of seat belt, 71235C1 and two pins, 112726

1шт.

71233C91

PARTS ACCESSORY, seat belt, 2 in., cap screw mounting, consists of seat belt, 71236C1 only

1шт.
