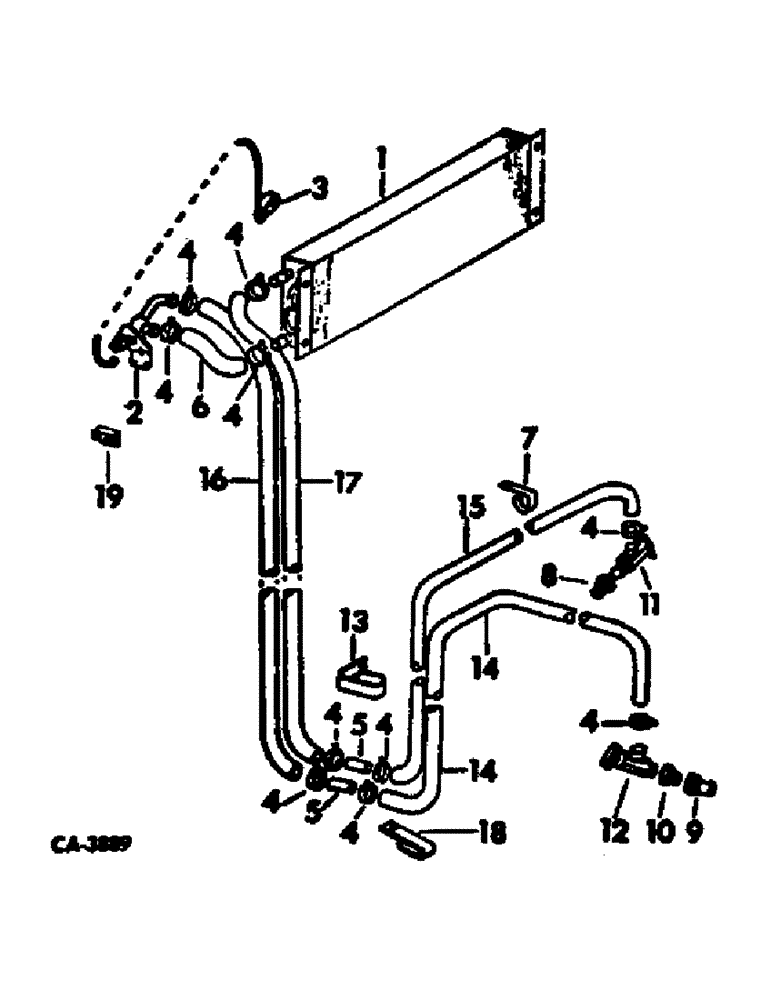

Запчасти Case IH 1566 (13-28) - SUPERSTRUCTURE, HEATER AND CONNECTIONS, 1566 TRACTORS (05) - SUPERSTRUCTURE

1

539056R2

NO LONGER SERVICED

CORE, heater

1шт.

2

539057R1

VALVE

heater control

1шт.

3

539058R1

CABLE

heater valve control

1шт.

539808R1

KNOB

w/screw, 446887 heater control

1шт.

446887

SET SCREW,Hex Soc, #8-32 x 1/8"

10-32 x 1/8 soc-cup-pt set

1шт.

4

39093H

HOSE CLAMP

CLAMP, heater hose

10шт.

5

80438R1

SPACER,3/8" Pipe x 3"

SPLICER, heater hose connector, 3/8 x 3 std pipe

2шт.

6

HOSE, valve to heater inlet, Use 12 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

7

534671R1

CLIP, single heater hose

1шт.

8

221-92

REDUCER,Hex, 3/4" x 3/8" NPT

BUSHING, 3/4-14 to 3/8 reducing pipe

1шт.

9

137894

ELBOW,45 Degree, 1/2" NPT Street

1/2 x 45 deg pipe street

1шт.

10

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducing pipe

1шт.

11

301803R91

VALVE

ASSY, heater outlet shut-off

1шт.

12

941980R91

LOCK VALVE

VALVE ASSY, heater inlet shut-off

1шт.

13

537064R1

CLIP, 90 deg double heater hose

1шт.

14

HOSE, heater inlet, Use 48 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

15

HOSE, heater inlet, Use 72 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

16

HOSE, hot water inlet, Use 88 in. of 5/8 ID heater hose from a 50 ft roll marked, 117724C1

1шт.

17

HOSE, cold water return, Use 84 in. of 5/8 ID heater hose from a 50 ft rool marked 117724C1

1шт.

18

391179R3

CLIP, straight double heater hose

1шт.

19

539807R1

BRACKET ASSY, heater valve mtg

1шт.
