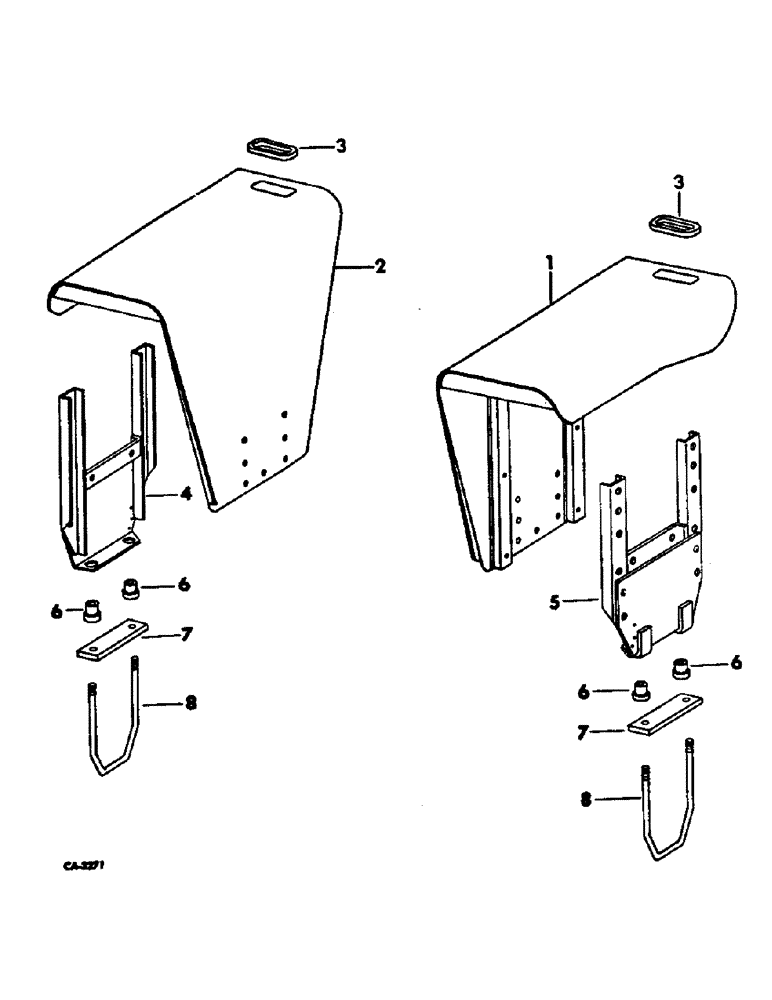

Запчасти Case IH 1566 (13-06) - SUPERSTRUCTURE, DELUXE FLAT TOP FENDERS WITH ADJUSTABLE LIGHTS (05) - SUPERSTRUCTURE

1

533187R1

FENDER ASSY, LH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

4шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 C-Z

6шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2-13 x 2-1/2 sq-nk crg

2шт.

1

66671C1

FENDER ASSY, LH, tractors w/four post protective frame

1шт.

66679C1

SPACER, fender, 9/16 x 1 x .42

2шт.

480677R1

SPACER, fender, 9/16 x 1 x 1-1/4

4шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT, 1/2-13 x 2-3/4 sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .074 C-Z

8шт.

2

533188R1

FENDER ASSY, RH

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2-13 x 1-1/4 znd sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

4шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .095 C-Z

6шт.

598815R1

CARRIAGE BOLT

BOLT, 1/2-13 x 2-1/2 sq-nk crg

2шт.

2

66672C1

FENDER ASSY, RH, tractors w/four post protective frame

1шт.

66679C1

SPACER, fender, 9/16 x 1 x .42

2шт.

480677R1

SPACER, fender, 9/16 x 1 x 1-1/4

4шт.

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

BOLT, 1/2-13 x 2-3/4 sq-nk crg

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

180174

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 5

SCREW, 1/2-13 x 1-1/8 znd hex-hd cap

4шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

SCREW, 1/2-13 x 2-1/2 znd hex-hd cap

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x .074 C-Z

8шт.

3

388940R1

GRIP

fender handle

2шт.

4

67831C1

SUPPORT ASSY, fender mounting RH

1шт.

5

67830C1

SUPPORT ASSY, fender mounting LH

1шт.

6

536671R1

RUBBER INSULATOR

BUSHING, fender isomount

4шт.

7

536672R2

SUPPORT

fender mount lower

2шт.

8

536670R1

BOLT,U, 1/2" - 13 x 10.72

U-BOLT, fender mounting

2шт.

102637

NUT,1/2"-13, G5

4шт.

12000R1

WASHER

17/32 x 1-3/4 x .090

4шт.

66677C1

PLATE, fender support, tractors with four post protective frame

2шт.

495-11053

WASHER,1/2", SAE

17/32 x 1-1/16 x 14 ga

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.
