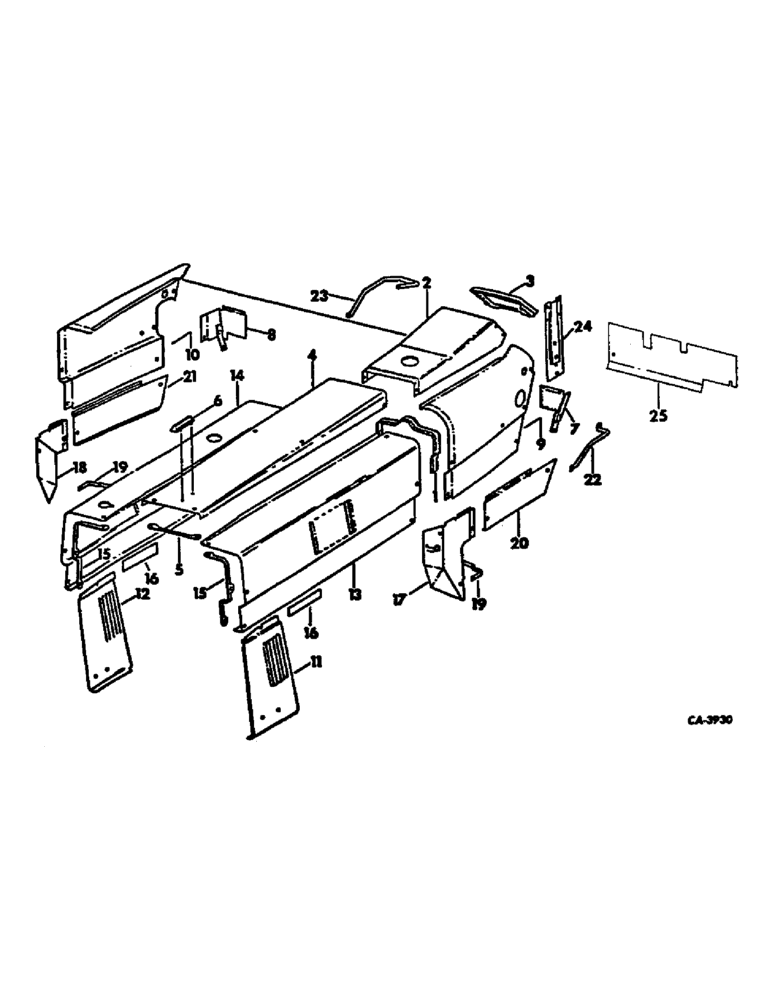

Запчасти Case IH 1566 (13-02) - SUPERSTRUCTURE HOOD, PANELS AND SUPPORT, 1566 TRACTORS (05) - SUPERSTRUCTURE

1

531031R2

SUPPORT ASSY, rear hood front

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

6шт.

179831

SCREW,Hex, 3/8" - 16 x 3/8"

3/8-16 x 3/8 hex-hd cap

4шт.

2

531060R1

CHANNEL, rear hood

1шт.

2

71204C1

CHANNEL, rear hood, tractors w/protective frame cab

1шт.

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

1/4-20 x 5/8 C-Z slt-hex. washer hd cap

4шт.

3

531038R1

HOUSING

instrument

1шт.

3

531038R1GV

INSTRUMENT PANEL

Value, Instrument Panel Housing

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, washer-hd cap

2шт.

4

531040R2

SHEET

CHANNEL, front hood

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

4шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

2шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

2шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

2шт.

5

536649R1

GASKET

hood channel

1шт.

6

538005R1

ORNAMENTAL STRIP

ORNAMENT, hood

1шт.

445165

NUT,5/32", Push-on

spring

2шт.

7

531488R1

HOUSING ASSY, steering support lower LH

1шт.

8

531493R1

HOUSING

ASSY, steering support lower RH

1шт.

8

535955R1

HOUSING ASSY, steering support lower RH, tractors w/aux fuel tank

1шт.

9

538519R1

HOOD W/PRODUCT GRAPHIC, LH rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

187758

PLUG,2 1/2"

2-1/2 in. button, torque amplifier opening

1шт.

10

531046R1

HOOD ASSY, RH rear

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

11

531063R3

PANEL, SIDE

PANEL, radiator support LH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 cdp hex. washer hd cap

3шт.

12

531064R3

PANEL, SIDE

PANEL, radiator support RH

1шт.

369222R1

BOLT,Hex Wshr Hd, 5/16" - 18 x 5/8"

SCREW, 5/16-18 x 5/8 cdp hex. washer hd cap

3шт.

13

531055R3

HOOD

LH front

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

3шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

3шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

3шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

3шт.

14

531065R3

HOOD

RH front

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

3шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

3шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

3шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

3шт.

15

536661R1

GASKET

LH front hood

1шт.

15

536662R1

GASKET

GASKET, RH front hood

1шт.

16

SEAL, front hood, furnish 3.0 in. from a 4 foot length marked 73215C1

2шт.

17

531501R3

BAFFLE ASSY, front heat LH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

1шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

1шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

1шт.

18

531502R3

BAFFLE ASSY, front heat RH

1шт.

131-883

SPRING NUT,Rtnr, 5/16" - 18

5/16-18 floating cage

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

1шт.

373483R2

BOLT,Hex, 5/16" - 18

shoulder

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

7/16 x 1-1/8 x .048 C-Z

1шт.

536653R1

RUBBER WASHER,8.74mm ID x 26.98mm OD x 2.39mm Thk

rubber

1шт.

19

532886R1

BRACKET ASSY, front baffle

2шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

LH side only Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

536755R1

RUBBER WASHER

rubber

2шт.

20

531507R1

BAFFLE

rear heat LH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

21

531508R1

BAFFLE

rear heat RH

1шт.

385157R1

SCREW,Bevel Wshr Hd, 5/16" - 18 x 5/8"

5/16-18 x 5/8 C-Z hex. washer hd bevel cap

2шт.

22

397890R2

HANDLE

operators mounting assist LH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 cdp hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" cdp hex-hd cap

1шт.

23

399306R2

HANDLE

operators mounting assist RH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 cdp hex-hd cap

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16"-18 x 1-1/4" cdp hex-hd cap

1шт.

24

531058R1

CHANNEL ASSY, rear hood support mounting

2шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

SCREW, 5/16-18 x 1/2 hex-hd cap

8шт.

25

531509R1

STRAP, front heat baffle

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.
