(15-04) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS

Запчасти Case IH 1566 (15-04) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS Wheels & Traction

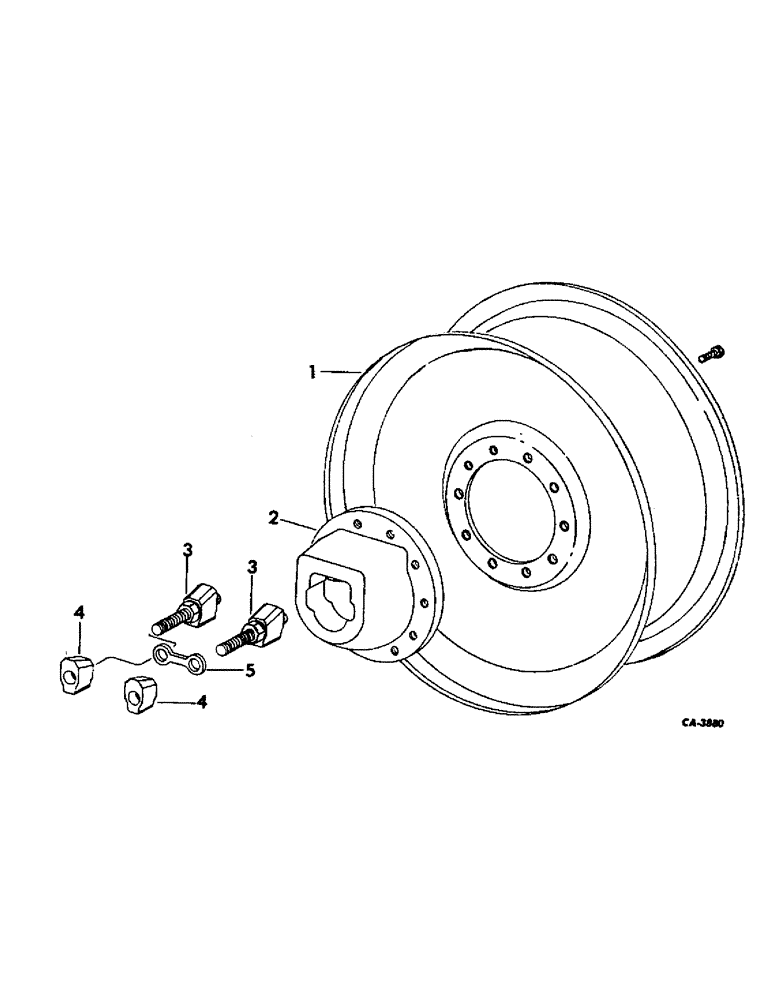

Схема запчастей Case IH 1566 - (15-04) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS Wheels & Traction
2
3
3
4
4
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

67474C2

RIM

WHEEL, W16L-38 int w/disc rear, For 18.4-38 tire

2шт.

1

68676C2

RIM

WHEEL, W18L-38 int w/disc rear, For 20.8-38 tire

2шт.

320546R1

BOLT (SPREADER),Tapper, 7/8" - 14 x 2.53"

BOLT, rear wheel mounting

20шт.

2

67337C1

HUB

dual wheel wedge lock

2шт.

3

67475C1

WEDGE

ASSY, wheel

4шт.

4

67477C1

WEDGE

wheel inner

4шт.

5

67478C1

LINK

wedge

2шт.
