Запчасти Case IH 1566 (15-03) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS Wheels & Traction

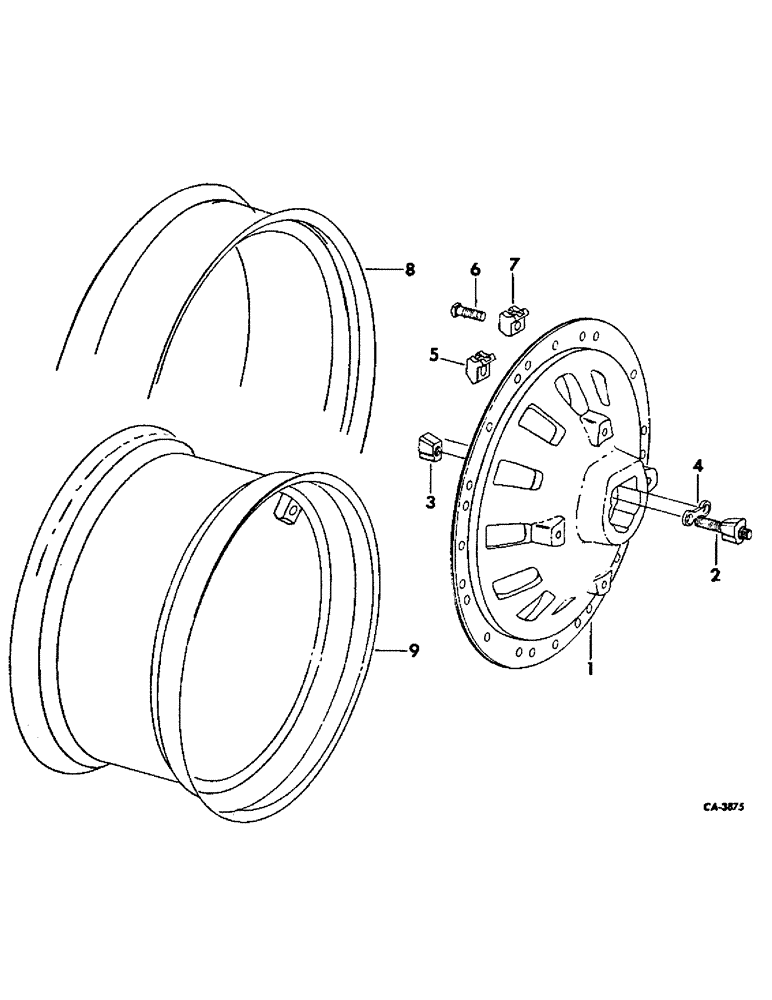

Схема запчастей Case IH 1566 - (15-03) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS Wheels & Traction
6
3
4
1
5
9
8
7
5

Артикул

Название

Примечание

Количество

1

67338C1

WHEEL

38 in. rear

2шт.

1

67339C1

WHEEL

32 in. rear

2шт.

2

67475C1

WEDGE

ASSY, wheel, 2 per wheel

1шт.

3

67477C1

WEDGE

wheel inner, 2 per wheel

1шт.

4

67478C1

LINK

wedge, 1 per wheel

1шт.

5

380870R1

CLAMP

rear wheel rim, Use as required

1шт.

6

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim, For use w/38 in. wheels

32шт.

6

380877R1

BOLT,3/4" - 16 x 4 3/4"

rear wheel rim, 10 per wheel, For use w/32 in. wheel

1шт.

7

397251R1

CLAMP

rear wheel rim fixed, 2 per wheel, For use w/38 in. wheels

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.

352536R1

NUT

rear wheel rim clamp, 1 per bolt

1шт.

8

392031R1

RIM

W16L-38 rear wheel, For 18.4-38 tire

2шт.

8

529182R1

RIM

W18L-38 rear wheel, For 20.8-38 tire

2шт.

9

392035R91

RIM

ASSY, DW21-32DC rear wheel w/clamps, For 24.5-32 tires

2шт.

9

67696C91

RIM ASSY, DW27-32DC tire, For 30.5-32 tire

2шт.

535409R1

STRIP

wrench grip

1шт.

67479C1

OPEN END WRENCH

WRENCH, wedge wheel socket 7/8 in.

1шт.

Выбрано товаров: 17
