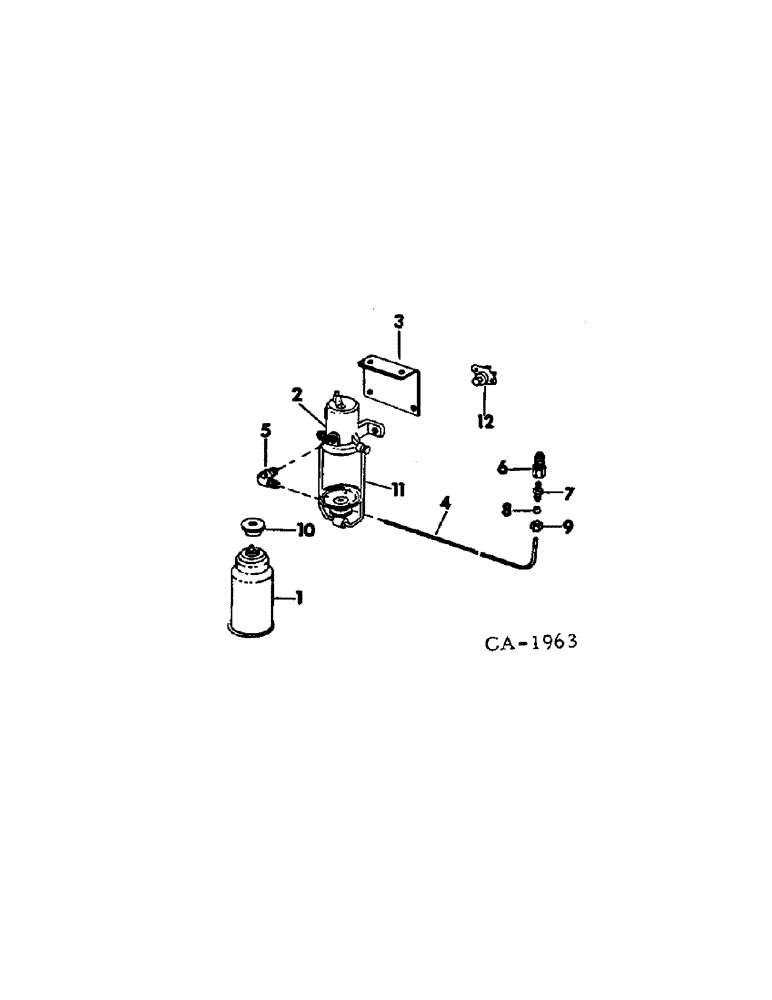

Запчасти Case IH 1566 (12-16) - POWER, ETHER STARTING, 1566 TRACTORS Power

1

385064R91

FLUID

ether starting, 12 ounce can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY, ether starting, Replaces 393719R92, Composed of ref nos 10 and 11

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

2шт.

3

538012R2

BRACKET

ether starting solenoid

1шт.

9635082

NUT,5/16" - 18, Gr 5

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

TUBE ASSY, ether solenoid to manifold, Use 10-3/4 in. 1/8 OD copper tubing from 50 ft roll marked, 995059R1, two nuts, 121220 and two sleeves, 121322

1шт.

5

140304

ELBOW

1/8-27 90 deg ball sleeve tube

1шт.

6

269635R91

NOZZLE CAP

NOZZLE ASSY, ether starting fluid

1шт.

7

140284

PIPE FITTING

CONNECTOR, tube

1шт.

8

121322

SLEEVE,Ball Type, 1/8" tube

tube connector

1шт.

9

121220

TUBE NUT

NUT, tube connector

1шт.

10

395686R1

GASKET

ether starting injector

1шт.

11

121851C1

RETAINER

BAIL ASSY, injector, Replaces 404247R1

1шт.

12

397940R93

SWITCH

ether solenoid push button

1шт.

120611

NUT,#10 - 32

10-32 C-Z sq

2шт.

436750

SCREW,Slotted Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-pan-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.
